Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGX-3/4

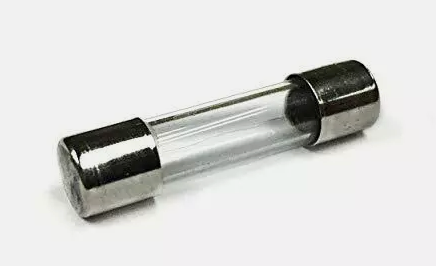

AGX-3/4 is a fast-acting glass tube fuse from Eaton designed for electronic and small appliance circuits.AGX-3/4 features a 0.75 ampere current rating and 250 volts AC voltage rating with a 1/4 inch by 1 inch (6.3 x 25.4 mm) physical size. It has nickel-plated brass endcaps and meets UL 248-14 standards. This fuse is part of the AGX series, offering a 35 amp interrupt rating at 250V AC and fast blow characteristics suitable for protecting sensitive electronic components. It requires a fuse holder for installation and is UL recognized and CSA accepted.
- Key Specifications
- Current Rating: 0.75 A
- Voltage Rating: 250 VAC
- Fuse Type: Fast-acting (Fast Blow)
- Physical Size: 1/4" x 1" (6.3 x 25.4 mm)
- Fuse Size Group: 8AG
- Interrupt Rating: 35 A at 250 VAC
- Construction: Glass tube with nickel-plated brass endcaps
- Certifications: UL Listed (UL 248-14), CSA Accepted
- Series: AGX
- Mounting Type: Requires fuse holder
Specifications
- Part Number: AGX-3/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 250
- Amperage : 3
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 005171270473
- GTIN : 00051712704731
- Weight : 5
