Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGX-25

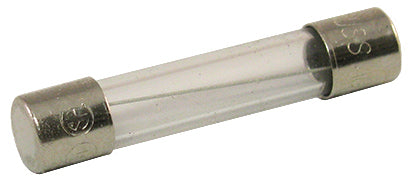

AGX-25 is a 25 Amp, 125 Volt fast-acting glass tube fuse designed for electronic and small appliance circuit protection.AGX-25 features a 1/4 inch by 1 inch (6.35 x 25.4 mm) glass tube with nickel-plated brass end caps, providing reliable fast-acting performance. It is UL Listed to standard 248-14 and recognized by CSA and UL for safety compliance. This fuse has an interrupt rating of 1000 AIC and is suitable for use in instrument and electronic circuits requiring quick response to overcurrent conditions.
- Current Rating: 25 Amps
- Voltage Rating: 125 Volts AC
- Fuse Type: Fast-Acting Glass Tube
- Physical Size: 1/4" x 1" (6.35 x 25.4 mm)
- Interrupt Rating: 1000 AIC
- End Caps: Nickel-Plated Brass
- UL Listed to Standard 248-14
- CSA and UL Recognized
- Mounting Type: Cartridge Fuse Holder
- Series: AGX
Specifications
- Part Number: AGX-25
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 32
- Amperage : 25
- AIC rating : 1kA@32Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 005171270484
- GTIN : 00051712704847
- Weight : 5
