AGX-20 - Eaton 20A 250V Fast-Acting Glass Cartridge Fuse 1/4 x 1 Inch 1-Pole

AGX-20

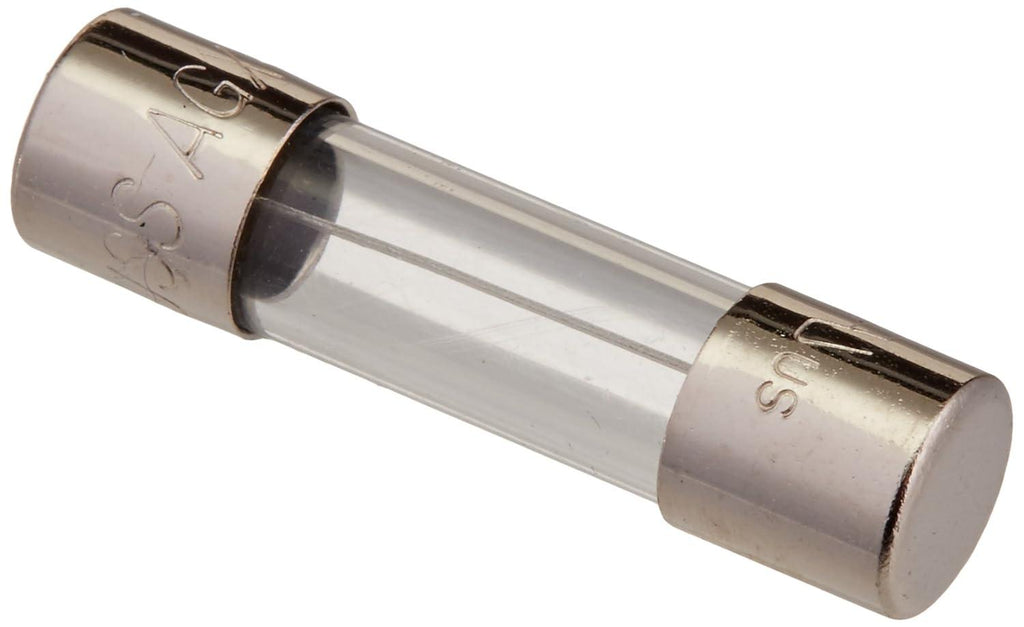

AGX-20 is a 20 amp, 250 volt fast-acting glass cartridge fuse from Eaton's Bussmann AGX series designed for electronic circuit protection.AGX-20 features a 6.3 x 25.4 mm (1/4 x 1 inch) glass tube with nickel-plated brass end caps, providing reliable overcurrent protection with a 200 A interrupt rating at 125 VAC and 1 kA at 32 VAC. It is UL listed to standard 248-14 and suitable for use in instruments, electronic devices, and small appliances.

Key Specifications
• Amperage: 20A
• Voltage Rating: 250 VAC
• Fuse Speed: Fast-Acting (F)
• Fuse Size: 6.3 x 25.4 mm (1/4 x 1 inch)
• Poles: 1
• Mounting Type: Cartridge
• Interrupt Rating: 200 A at 125 VAC, 1 kA at 32 VAC
• Body Material: Glass tube with nickel-plated brass end caps
• Series: Eaton Bussmann AGX
• Certifications: UL Listed (UL 248-14)
• Fuse Indicator: Non-indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AGX-20
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : AGX Series
• Type : AGX
• Voltage : 32
• Amperage : 20
• AIC rating : 1kA@32Vac
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• UPC : 05171270483
• GTIN : 00051712704830
• Weight : 0.6
