Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGX-2/10

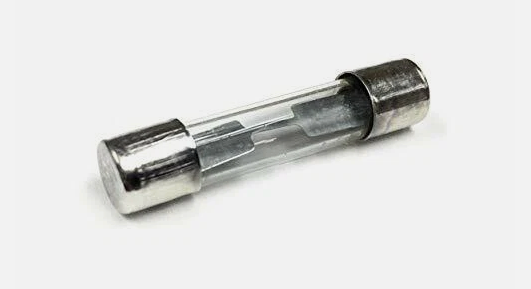

AGX-2/10 is a fast-acting glass cartridge fuse from the Eaton AGX series, designed for reliable circuit protection in low-voltage applications. This fuse features a 200mA current rating and a 250VAC voltage rating, making it suitable for a wide range of industrial and commercial uses. The AGX-2/10 is constructed with a cylindrical glass body and nickel-plated brass end caps for durability and secure mounting. The AGX-2/10 fuse is a 1/4" x 1" (6.35mm x 25.4mm) cartridge type, requiring a compatible fuse holder for installation. It offers a fast-blow response time, ensuring rapid interruption of current during overloads or short circuits. With a breaking capacity of 35A at 250VAC and an interrupt rating of 10kA, this fuse provides robust protection for sensitive equipment.
- Manufacturer: Eaton
- Series: AGX
- Fuse Type: Cartridge, Glass
- Current Rating: 200mA
- Voltage Rating: 250VAC
- Mounting Type: Requires Holder
- Interrupt Rating: 35A @ 250VAC, 10kA
- Response Time: Fast Blow
- Physical Size: 6.35mm x 25.4mm (1/4" x 1")
- End Cap Material: Nickel-Plated Brass
- Application: Low-Voltage Circuit Protection
- Standards: UL Listed
Specifications
- Part Number: AGX-2/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 250
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270468
- GTIN : 00051712704687
- Weight : 0.6
