Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGX-1

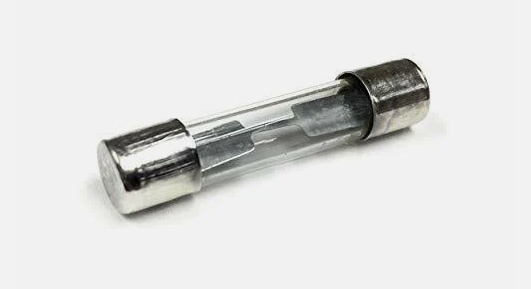

AGX-1 is a 1 Amp, 250 Volt fast-acting glass fuse designed for electronic and small appliance circuits.This fuse features a 1/4" x 1" glass tube construction with nickel-plated brass end caps. It has a 35 Amp interrupting rating at 250 VAC and 10,000 Amp interrupting rating at 125 VAC. The AGX-1 meets UL 248-14 standards and is suitable for protecting instruments and electronic devices.
- Amperage: 1 Amp
- Voltage Rating: 250 Volts AC
- Fuse Type: Fast Acting Glass Tube
- Physical Size: 1/4" x 1" (6.35 x 25.4 mm)
- Interrupting Rating: 35 AIC @ 250 VAC
- Interrupting Rating: 10,000 AIC @ 125 VAC
- End Caps: Nickel Plated Brass
- UL Listed to Standard 248-14
- Application: Instruments, Electronic and Small Appliance Circuits
Specifications
- Part Number: AGX-1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 250
- Amperage : 1
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270474
- GTIN : 00051712704748
- Weight : 0.15
