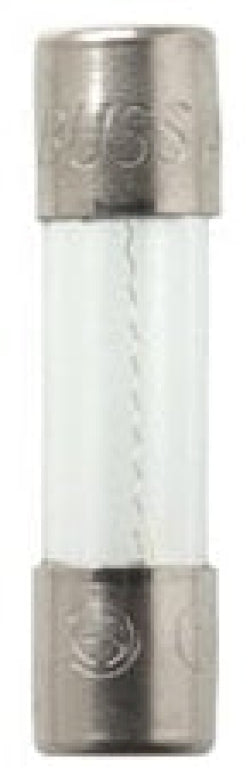

AGX-1/8 - Eaton AGX Series Fast-Acting Glass Tube Fuse 0.125A 250V

AGX-1/8

AGX-1/8 is a fast-acting glass tube fuse from the Eaton AGX series, designed for reliable circuit protection in electronic applications. This fuse features a 0.125A current rating and a 250V AC voltage rating, making it suitable for use in instruments, electronic circuits, and small appliances. The fuse is constructed with a glass tube and nickel-plated brass end caps for durability and consistent performance. The AGX-1/8 fuse is engineered for fast response, with a minimum opening time of 4 hours at 110% load, 60 minutes maximum at 135% load, and 5 seconds maximum at 200% load. It is a non-indicating fuse with a ferrule end connection, ensuring secure installation in compatible fuse holders. The fuse is recognized by UL and meets standard 248-14, providing assurance of safety and compliance.

• Part Number: AGX-1/8
• Manufacturer: Eaton
• Series: AGX
• Type: Fast-Acting Glass Tube Fuse
• Amperage Rating: 0.125A
• Voltage Rating: 250V AC, 32V DC
• Interrupt Rating: 35A at 250V AC
• Physical Size: 1/4" x 1" (6.3mm x 25.4mm)
• Construction: Glass tube, nickel-plated brass end caps
• Response Time: 4 hr min at 110%, 60 min max at 135%, 5 sec max at 200%
• Application: Electronic circuits, instruments, small appliances
• Certifications: UL Listed, meets standard 248-14

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AGX-1/8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : AGX Series
• Type : AGX
• Voltage : 250
• Amperage : 1
• AIC rating : 35A@250Vac
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• UPC : 051712704663
• GTIN : 00051712704663
• Weight : 5
