Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGX-1/4

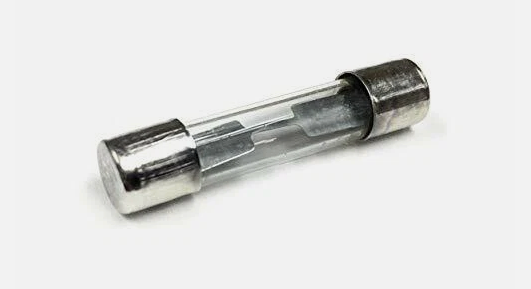

AGX-1/4 is a fast-acting glass cartridge fuse from Eaton, designed for overcurrent protection in electronic and small appliance circuits.
This fuse features a 1/4" x 1" (6.35mm x 25.4mm) glass tube with nickel-plated brass end caps, offering reliable performance and easy visual inspection. It is UL Listed to standard 248-14 and is commonly used in instruments, electronics, and small appliances where precise overcurrent protection is critical.
-
Key Specifications
- Part Number: AGX-1/4
- Manufacturer: Eaton
- Amperage: 0.25A (250 mA)
- Voltage: 250V AC
- Poles: Single
- Mounting Type: Cartridge
- Interrupt Rating: 35A at 250V AC, 10kA at 125V AC
- Series/Frame: AGX
- Trip Unit: Fast-acting (fast blow)
- Certifications: UL Listed (UL 248-14)
- Construction: Glass tube, nickel-plated brass end caps
- Dimensions: 1/4" diameter x 1" length (6.35mm x 25.4mm)
- Application: Electronic circuits, instruments, small appliances
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: AGX-1/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 250
- Amperage : 1
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270469
- GTIN : 00051712704694
- Weight : 0.15
