Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

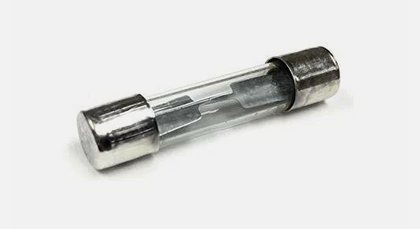

AGX-1/10
AGX-1/10 is a fast-acting glass tube fuse from Eaton's AGX series designed for electronic and small appliance circuits.This 0.1 amp, 250 volt AC fuse features a 6.35 x 25.4 mm cylindrical glass tube construction with nickel-plated brass end caps, providing reliable circuit protection with a breaking capacity of 35 amps at 250V AC.
- Type: Fast-acting glass tube fuse
- Current Rating: 0.1 A
- Voltage Rating: 250 V AC
- Fuse Size: 6.35 x 25.4 mm (1/4" x 1")
- Poles: 1
- Interrupt Rating: 35 A at 250 V AC, 10 kA at 125 V AC
- Construction: Cylindrical glass tube with nickel-plated brass end caps
- Series: AGX
- Certifications: UL Listed (Standard 248-14), cUL Recognized
- Mounting Type: Requires fuse holder (8AG size)
Specifications
- Part Number: AGX-1/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 250
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270465
- GTIN : 00051712704656
- Weight : 5.19
