Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

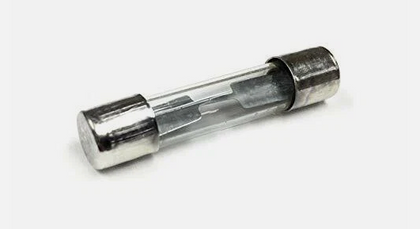

AGX-1-1/4
AGX-1-1/4 is a fast-acting glass cartridge fuse from Eaton's Bussmann series designed for circuit protection in electronic and small appliance applications.AGX-1-1/4 features a 1.25 ampere rating and 250 volts AC voltage rating with a 1/4 inch diameter and 1 inch length glass tube construction. It is UL listed to standard 248-14 and requires a fuse holder for mounting. This fuse provides fast blow response to protect sensitive circuits and is suitable for use in instruments and electronic devices.
- Amperage: 1.25 A
- Voltage Rating: 250 V AC, 32 V DC
- Fuse Type: Fast-Acting Glass Cartridge
- Dimensions: 1/4 inch diameter x 1 inch length (6.35 x 25.4 mm)
- Mounting Type: Requires fuse holder
- Interrupt Rating: 10,000 A
- Series: Eaton Bussmann AGX
- Certifications: UL Listed (UL 248-14), CSA Component Accepted
- Construction: Glass tube with nickel-plated brass endcaps
- Application: Electronic circuits, instruments, small appliances
Specifications
- Part Number: AGX-1-1/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGX Series
- Type : AGX
- Voltage : 250
- Amperage : 1
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171270492
- GTIN : 00051712704922
- Weight : 0.08
