AGW-1 - Eaton 1A 32V Fast-Acting Glass Tube Fuse 1/4 x 7/8 Inch 1000A Interrupt Rating

AGW-1

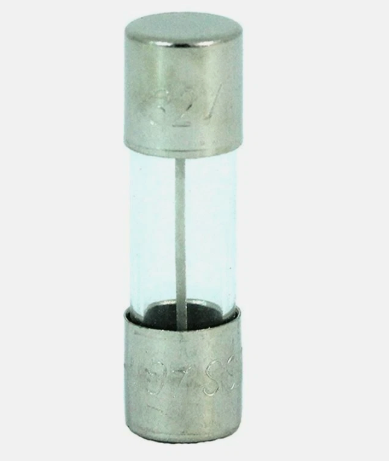

AGW-1 is a fast-acting glass tube fuse from Eaton designed for electronic circuit protection.

This fuse features a 1 ampere amperage rating and a voltage rating of 32 Vac and 32 Vdc (self certified). It has a compact 1/4 inch by 7/8 inch (6.3 x 22.2 mm) size with nickel-plated brass end caps and a glass tube construction. The AGW-1 fuse provides a high interrupting rating of 1000 amperes at 32 Vac and is non-indicating. It is suitable for mounting in inline holders or PCB fuse clips designed for 1/4 inch fuses.

• Amperage Rating: 1 A
• Voltage Rating: 32 Vac, 32 Vdc (self certified)
• Interrupt Rating: 1000 A at 32 Vac
• Fuse Type: Fast-acting glass tube
• Dimensions: 1/4" x 7/8" (6.3 x 22.2 mm)
• Construction: Glass tube with nickel-plated brass end caps
• Fuse Indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Mounting: Inline holders HHB, HHK, HRK or PCB fuse clips for 1/4" fuses
• Response Time: 4 hr at 110%, 60 min at 135%, 120 sec at 200%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AGW-1
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Type : AGW
• Voltage : 32
• Amperage : 1
• AIC rating : 1kA@32Vac
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• UPC : 05171270441
• GTIN : 00051712704410
• Dimensions : 0.875 in x 0.25 in x 0.25 in (Length/Depth x Height x Width)
• Weight : 0.003
