Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGU-20

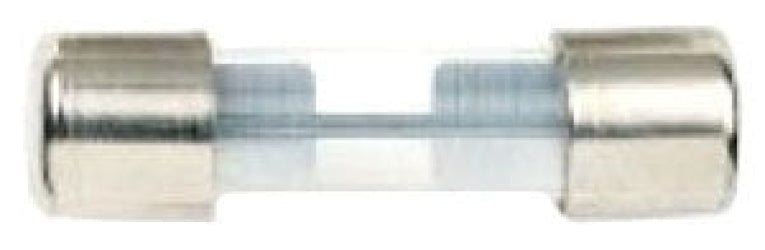

AGU-20 is a 20 amp, 32 volt fast-acting glass cartridge fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a fast blow response time with nickel-plated brass ferrules and a compact 5AG midget size (10.3 mm x 38.1 mm). It is rated for 32 volts AC and DC, suitable for low voltage applications requiring quick interruption.
- Fuse Type: Glass Cartridge
- Current Rating: 20 Amps
- Voltage Rating: 32 Volts AC/DC
- Response Time: Fast Blow
- Size: 5AG Midget (10.3 mm x 38.1 mm)
- Ferrules: Nickel Plated Brass
- Interrupt Rating: Not specified
- Poles: 1
- Mounting Type: Fuseblock or holder compatible
- Series: AGU
- Certifications: CE compliant (per Low Voltage Directive)
Specifications
- Part Number: AGU-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AG Series
- Type : AGU
- Voltage : 32
- Amperage : 20
- Connection : Ferrule
- Diameter : 1332
- Barrels : 1
Product Data
- UPC : 051712704274
- GTIN : 00051712704274
- Country of Origin : Mexico
- Dimensions : 5.5 in x 0.4625 in x 0.001 in (Length/Depth x Height x Width)
- Weight : 0.25
- Certification : CE
