Product Info
- Manufacturer:Eaton
Description
AGC30R

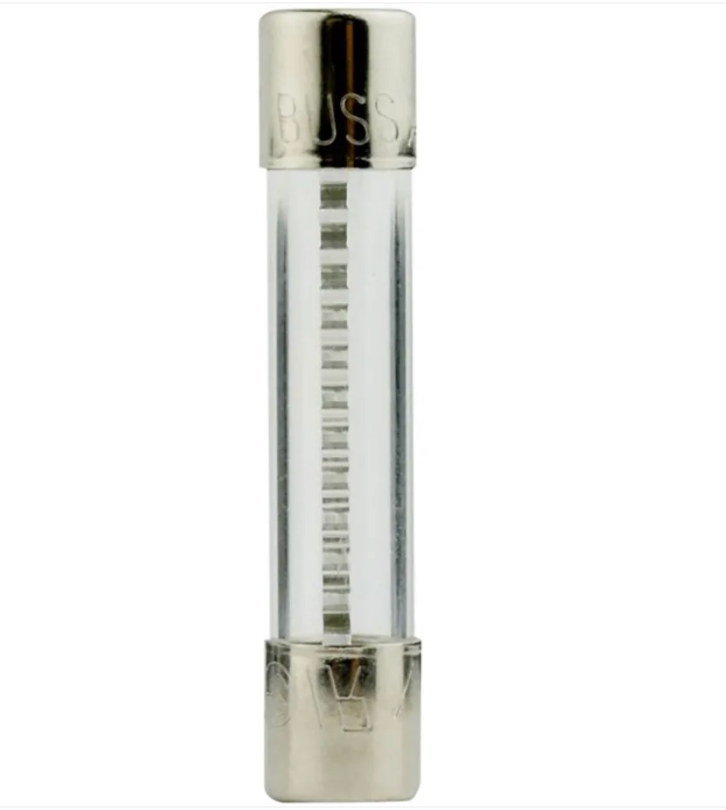

AGC30R is a fast-acting glass tube fuse from the Eaton Bussmann AGC series, designed for reliable circuit protection in electronic applications. This fuse features a 30A amperage rating and is rated for 32 Vac and 32 Vdc, making it suitable for a wide range of low-voltage circuits. The fuse is constructed with a glass body and nickel-plated brass end caps for durability and consistent performance. The AGC30R is a non-indicating fuse with ferrule end connections, providing secure mounting in compatible fuse holders. It is engineered for fast response times, with a maximum of 60 minutes at 135% overload and 120 seconds at 200% overload. The fuse is self-certified for 32 Vac and 32 Vdc and is compliant with RoHS standards. It is approved by CSA and UL, ensuring reliability and safety in regulated environments.
- Amperage Rating: 30A
- Voltage Rating: 32 Vac, 32 Vdc (self certified)
- Interrupt Rating: 1 kAIC at 32 Vac
- Series/Frame: AGC
- Mounting Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Response Time: 60 min max at 135%, 120 sec max at 200%
- Material: Glass tube, nickel-plated brass end caps
- Approvals: CSA, UL, RoHS
- Operating Temperature: -55°C to 125°C
- Melting I²t: 4950
- Application: Electronic circuits
Specifications
- Part Number: AGC30R
- Manufacturer : Eaton
- Brand : Bussmann
Product Data
- UPC : 05171265518
- GTIN : 00051712655187
- Weight : 0.08
