Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Part And Accessory
Description
AGC1-1/4

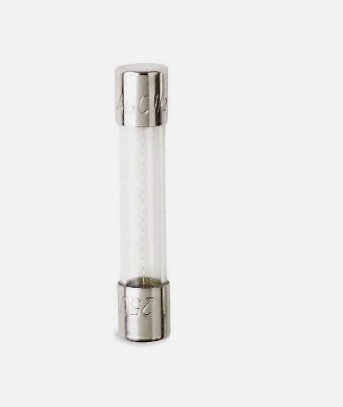

AGC1-1/4 is a fast-acting glass tube fuse from Eaton designed for electronic circuit protection.This Eaton AGC series fuse features a 1.25 ampere rating with a voltage rating of 250 VAC. It is a 1/4 inch diameter by 1-1/4 inch length cartridge fuse with nickel-plated brass end caps and a glass tube body. The fuse is fast-acting, providing quick response to overcurrent conditions, and has an interrupt rating of 35 AIC at 250 VAC and 10 kAIC at 125 VAC. It is RoHS compliant and designed for use in electronic applications requiring reliable overcurrent protection.
- Key Specifications
- Amperage: 1.25 A
- Voltage Rating: 250 VAC
- Fuse Type: Fast-Acting
- Dimensions: 1/4 inch diameter x 1-1/4 inch length
- Mounting Type: Cartridge
- Interrupt Rating: 35 AIC at 250 VAC, 10 kAIC at 125 VAC
- Material: Glass tube with nickel-plated brass end caps
- Series: Eaton AGC
- Compliance: RoHS Compliant
Specifications
- Part Number: AGC1-1/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Type : AGC
Product Data
- UPC : 051712703819
- GTIN : 00051712654951
- Weight : 0.08
