AGC-9 - Eaton 9 Amp 250 Volt Fast-Acting Glass Tube Fuse 1-Pole 200A Interrupt Rating

AGC-9

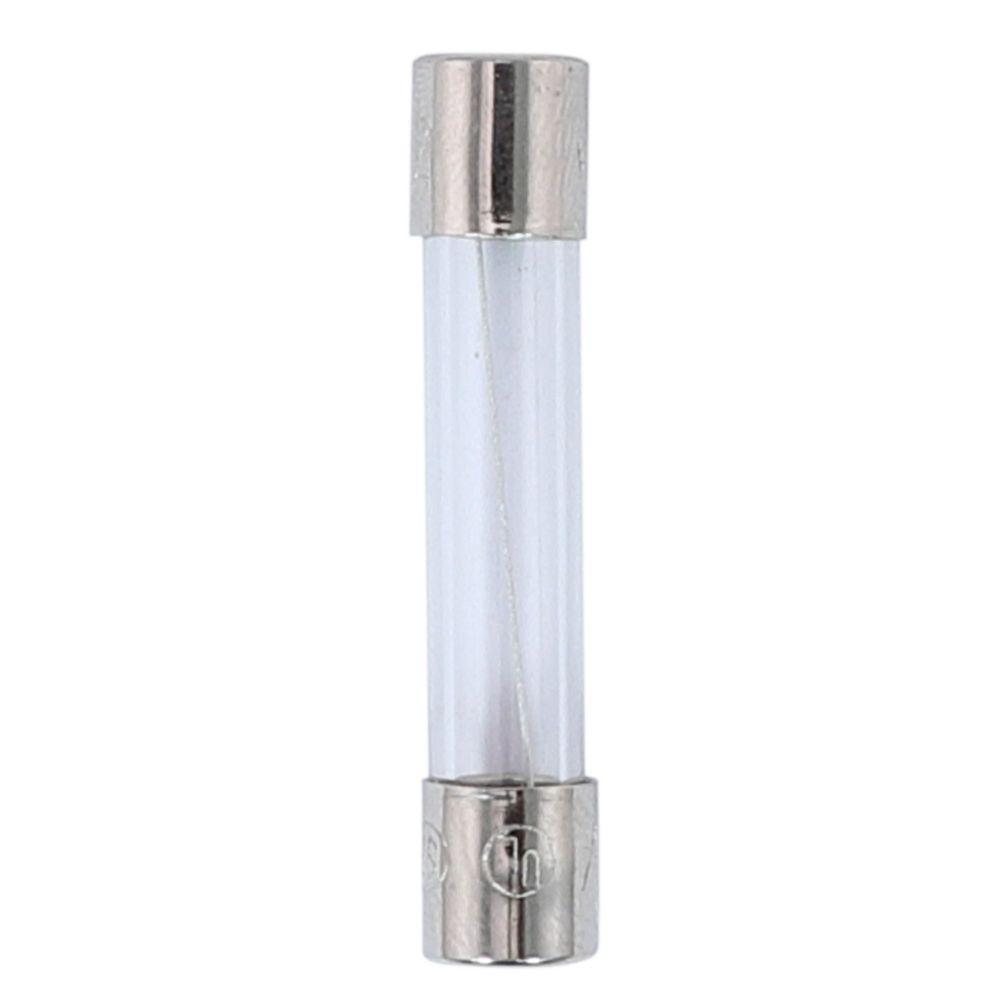

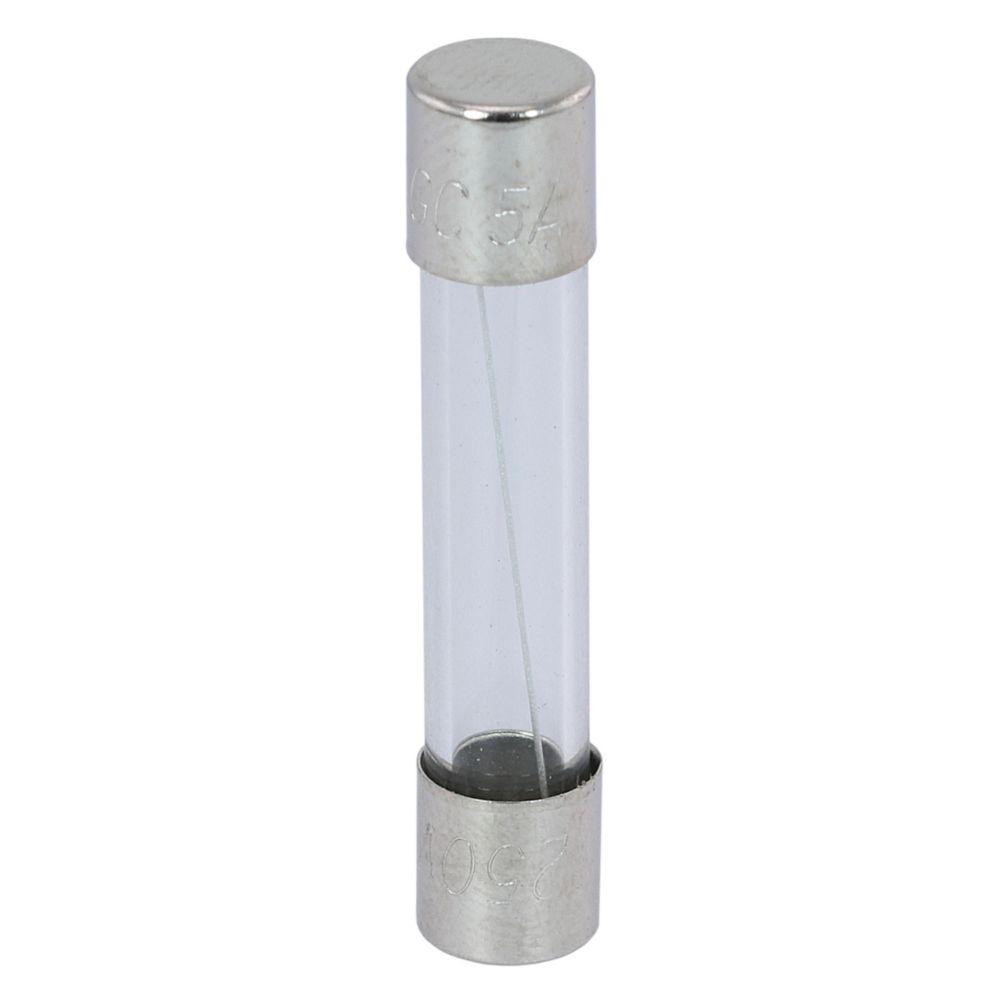

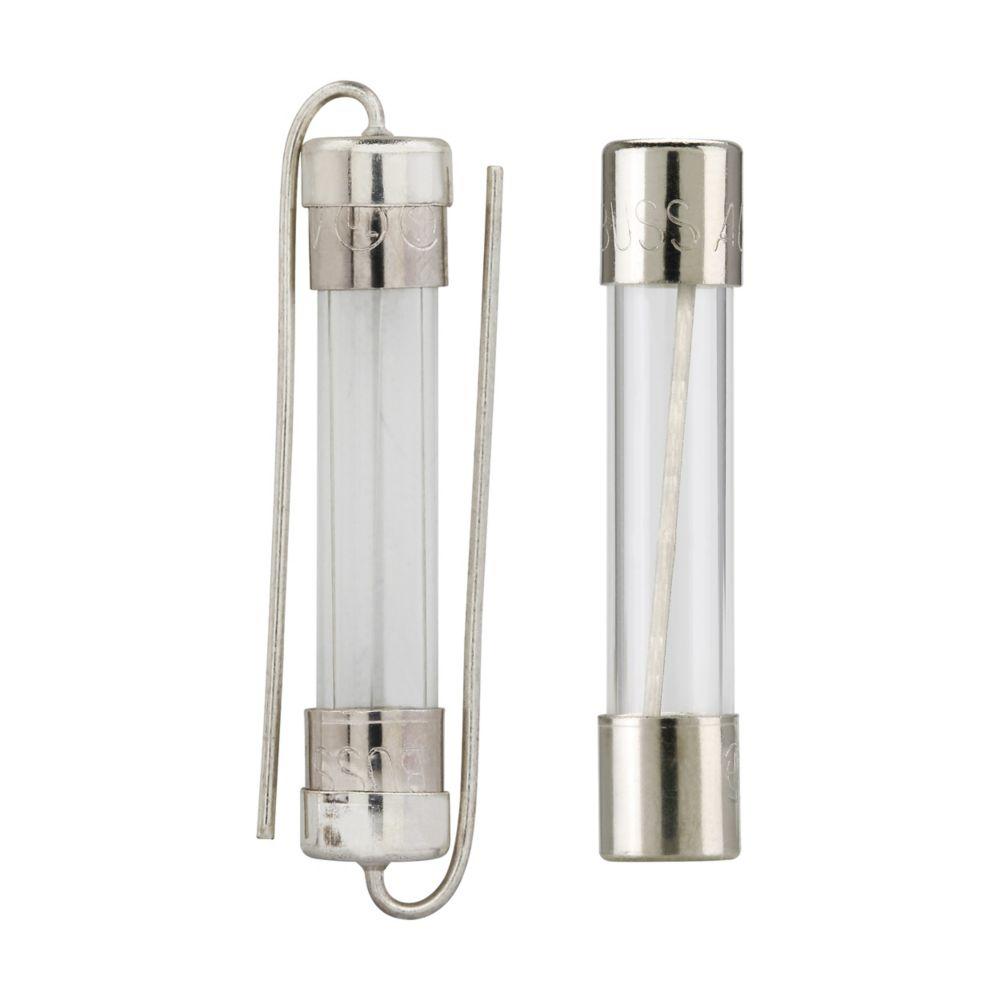

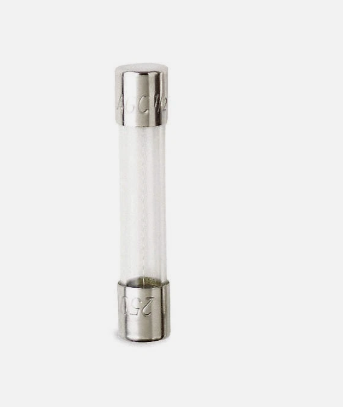

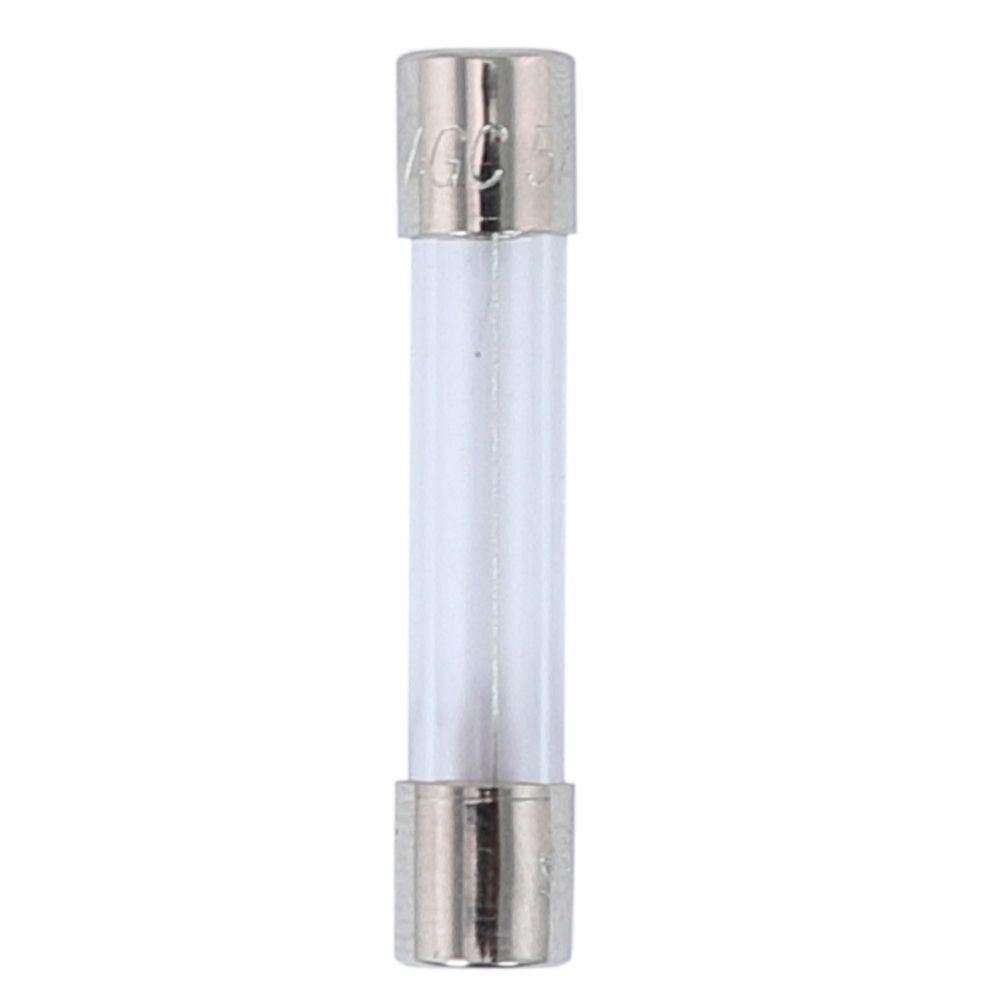

AGC-9 is a 9 amp, 250 volt fast-acting glass tube fuse designed for low voltage electronic protection.AGC-9 features a 1-pole design with a 200 amp interrupt rating at 250 VAC and 10,000 amp interrupt rating at 125 VAC, suitable for use in fuse holders or clips. It offers reliable fast blow protection with typical melting I2t of 395.28 A2s and low voltage drop, making it ideal for electronic circuits requiring quick response to overcurrent conditions.

• Amperage Rating: 9 A
• Voltage Rating: 250 VAC, 32 VDC (self-certified)
• Interrupt Rating: 200 A at 250 VAC, 10 kA at 125 VAC
• Fuse Type: Fast-Acting Glass Tube
• Poles: 1
• Mounting Style: Holder / Clip
• Typical Melting I2t: 395.28 A2s
• Typical Voltage Drop: 0.148 V at rated current
• Dimensions: 1/4 inch x 1-1/4 inch (6.3 mm x 32 mm)
• Certifications: Eaton Bussmann Series

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AGC-9
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : AGC Series
• Type : AGC
• Voltage : 250
• Amperage : 9
• AIC rating : 200A@250Vac
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• Weight : 0.6
