Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-8
AGC-8 is an Eaton fast-acting glass tube fuse designed for reliable overcurrent protection in electronic circuits.

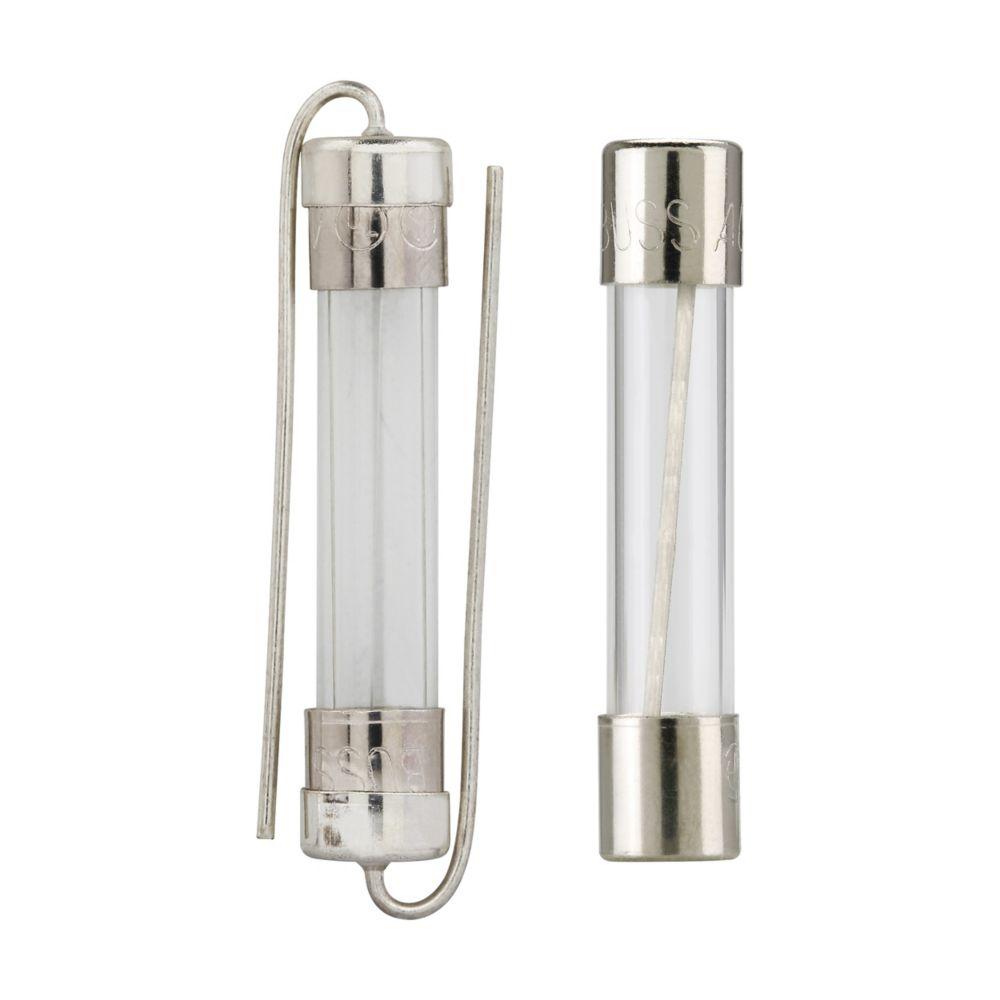

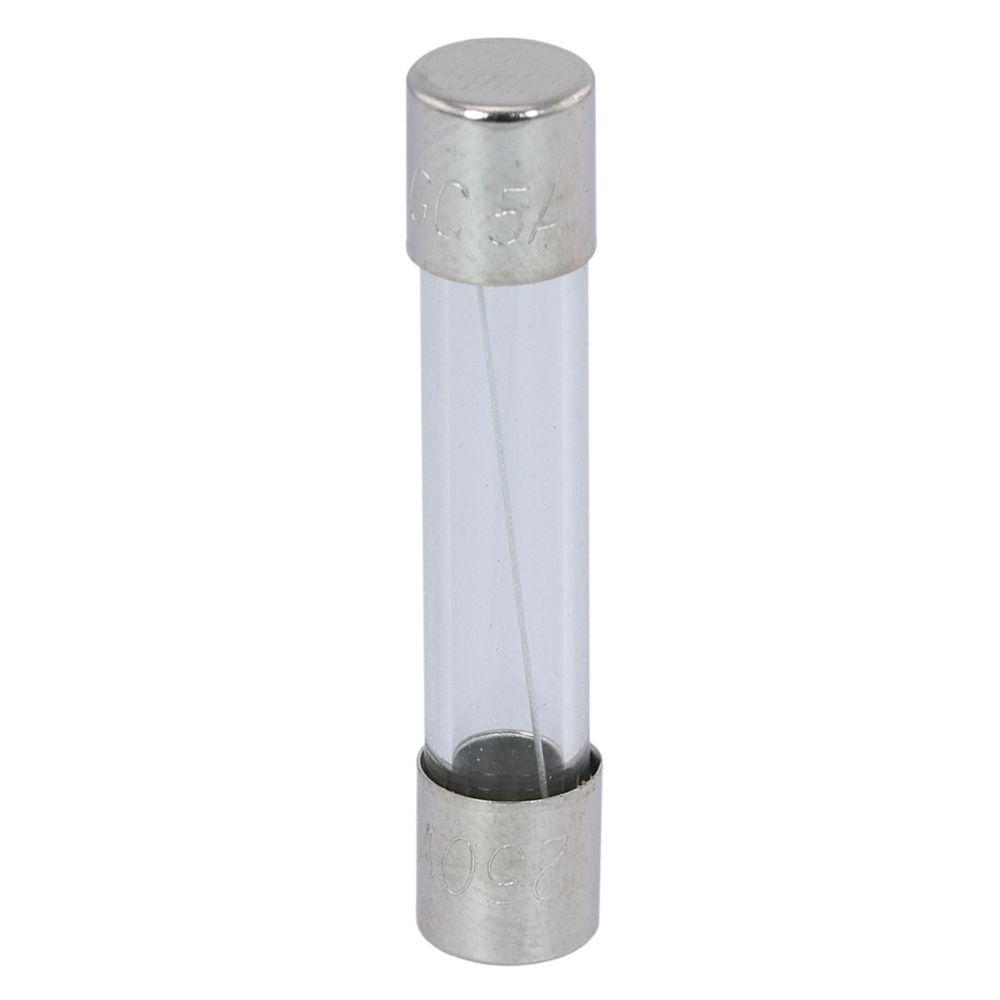

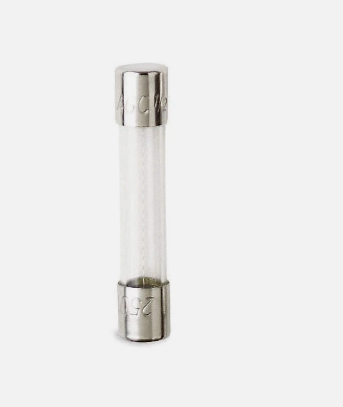

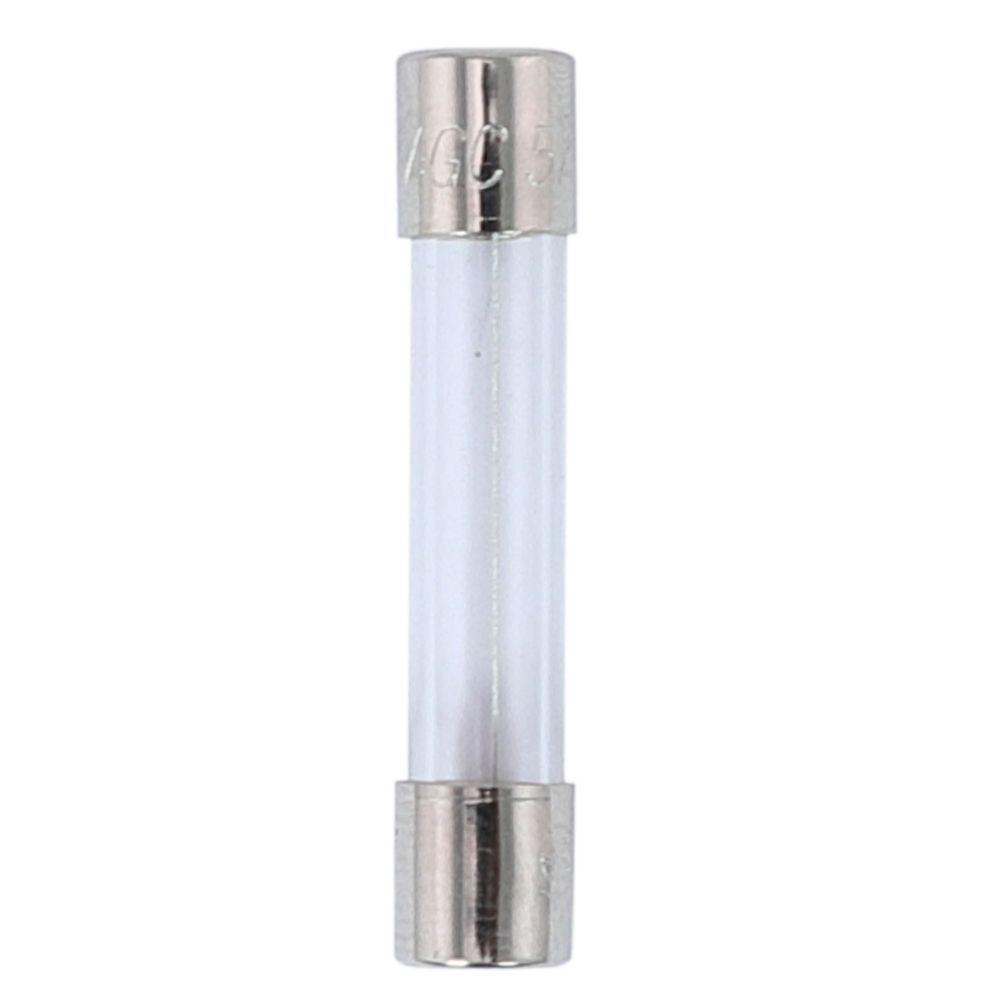

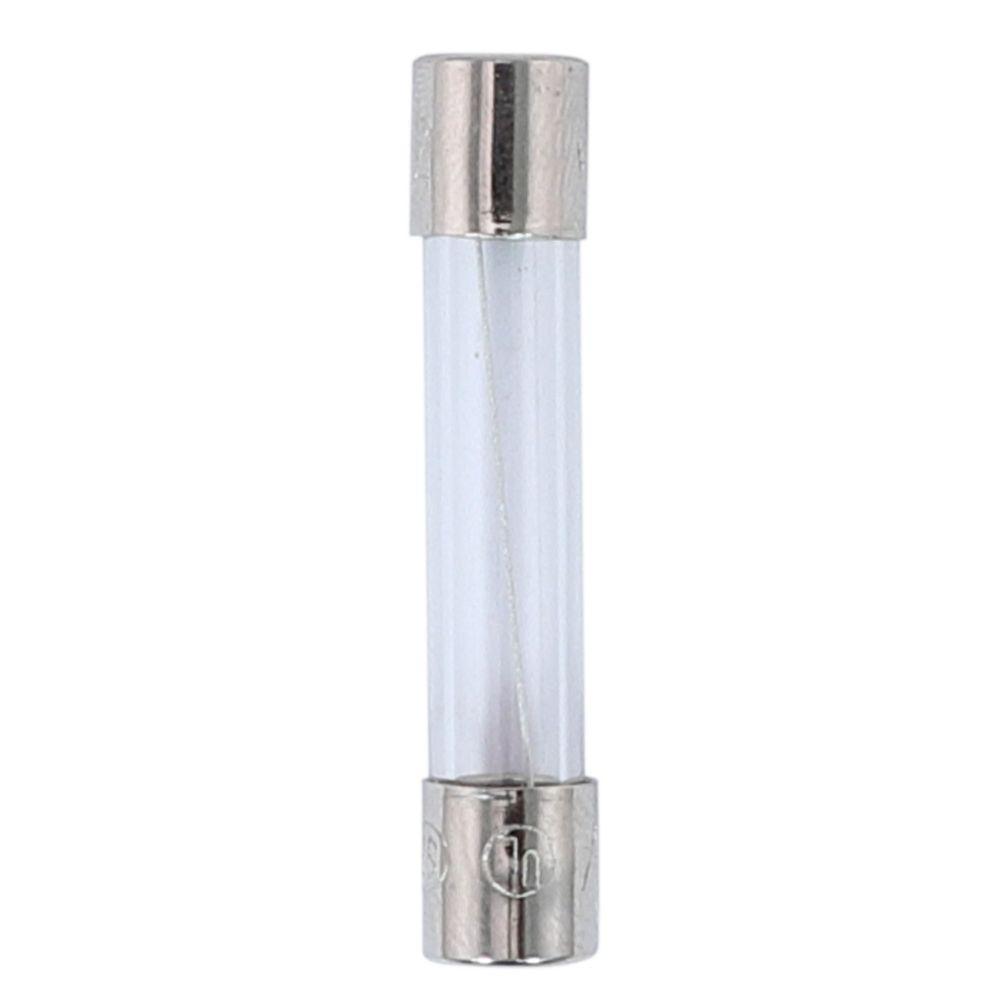

This fuse features a 1/4" x 1-1/4" glass tube with nickel-plated brass end caps, ferrule end connections, and a non-indicating design. It is part of the AGC series, known for fast response to overloads and short circuits, making it ideal for sensitive electronic applications. The fuse is CE marked and RoHS compliant, ensuring adherence to international standards.
-
Key Specifications
- Part Number: AGC-8
- Manufacturer: Eaton
- Amperage Rating: 8A
- Voltage Rating: 250V AC, 32V DC (self certified)
- Poles: 1
- Mounting Type: Holder mount (ferrule end x ferrule end)
- Interrupt Rating: 200A at 250V AC, 10,000A at 125V AC
- Series/Frame: AGC
- Trip Unit: Fast-acting (opens in 60 min at 135%, 120 sec at 200% of rating)
- Certifications: CE Marked, RoHS Compliant
- Connection: Ferrule end
- Fuse Indicator: Non-indicating
- Application: Electronic circuits
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: AGC-8
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 8
- AIC rating : 200A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 07945800507
- GTIN : 00079458005073
- Weight : 0.6
