Product Info
- Manufacturer:Cooper Bussmann||Bussmann
- Sub-Category:Low Voltage
Description
AGC-8/10

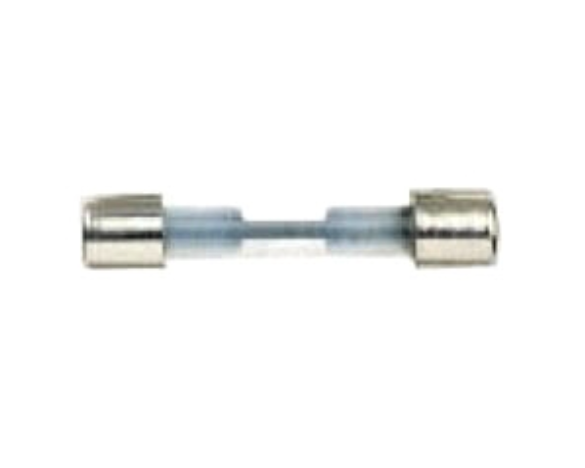

AGC-8/10 is an Eaton fast-acting glass tube fuse rated at 8/10 amperes and 250 volts AC.This fuse features a 1/4 inch diameter by 1-1/4 inch length glass tube construction with nickel-plated brass ferrule end caps for reliable connection.
- Amperage Rating: 0.8 A (8/10A)
- Voltage Rating: 250 Vac, 32 Vdc (self certified)
- Interrupting Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
- Fuse Type: Fast-acting
- Size: 1/4 inch diameter x 1-1/4 inch length (3AG size)
- Connection: Ferrule end x ferrule end
- Response Time: 60 minutes max at 135% rated current, 120 seconds max at 200% rated current
- Material: Glass tube with nickel-plated brass end caps
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Application: Electronic circuits protection
Specifications
- Part Number: AGC-8/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 0.8
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- Weight : 5
