Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-5

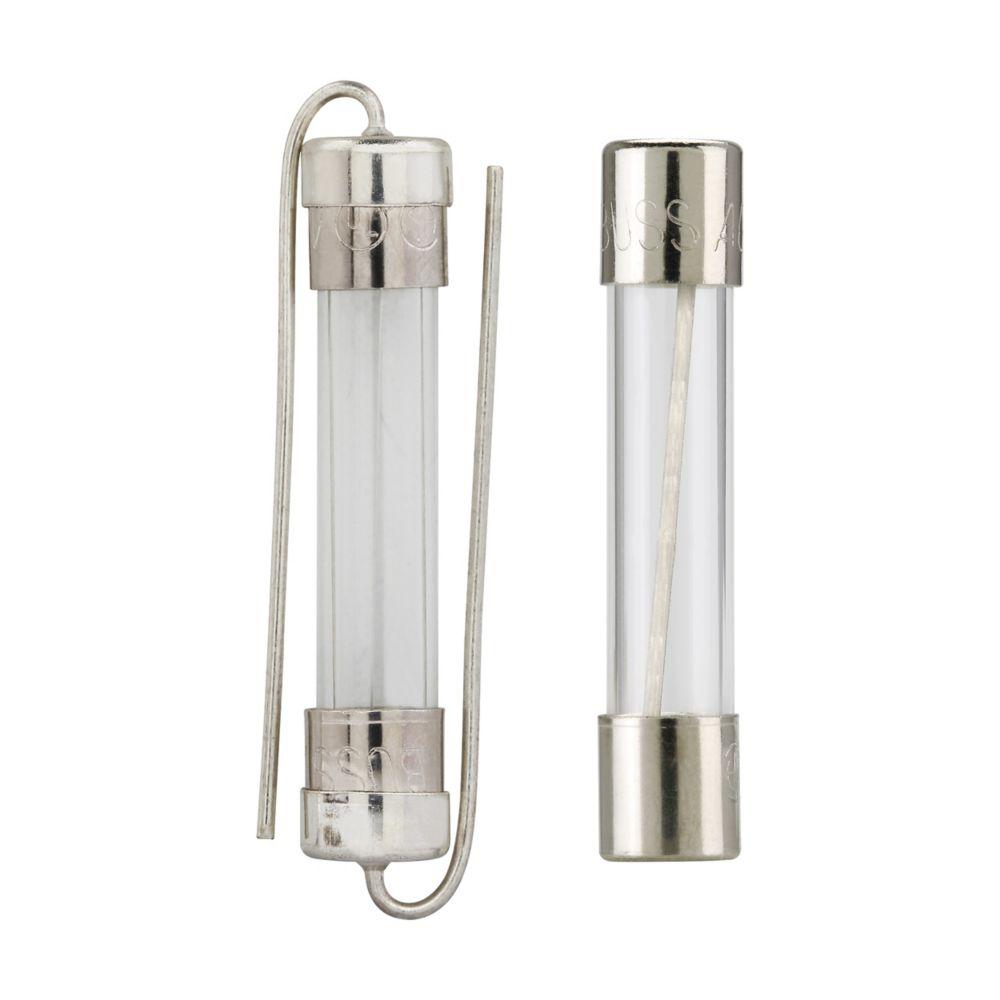

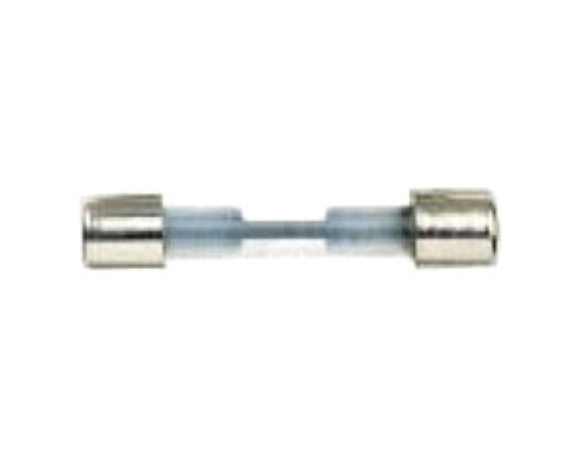

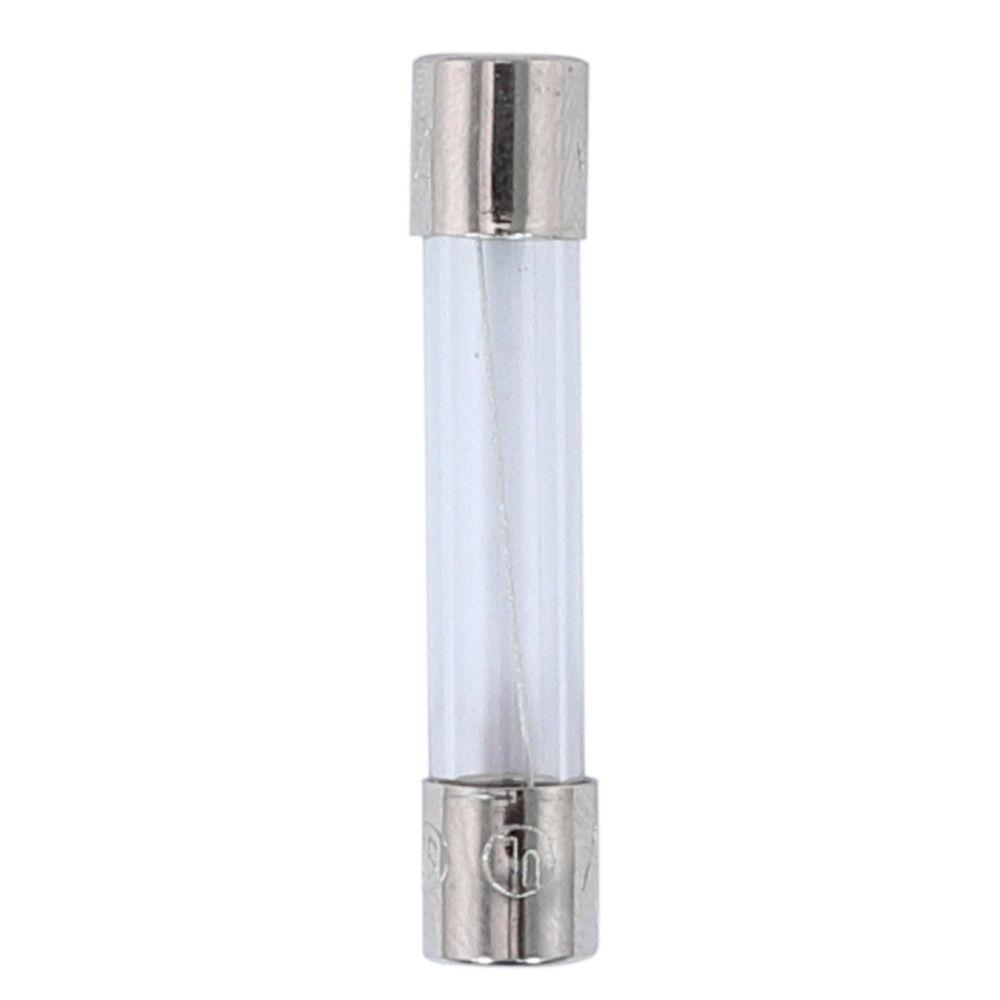

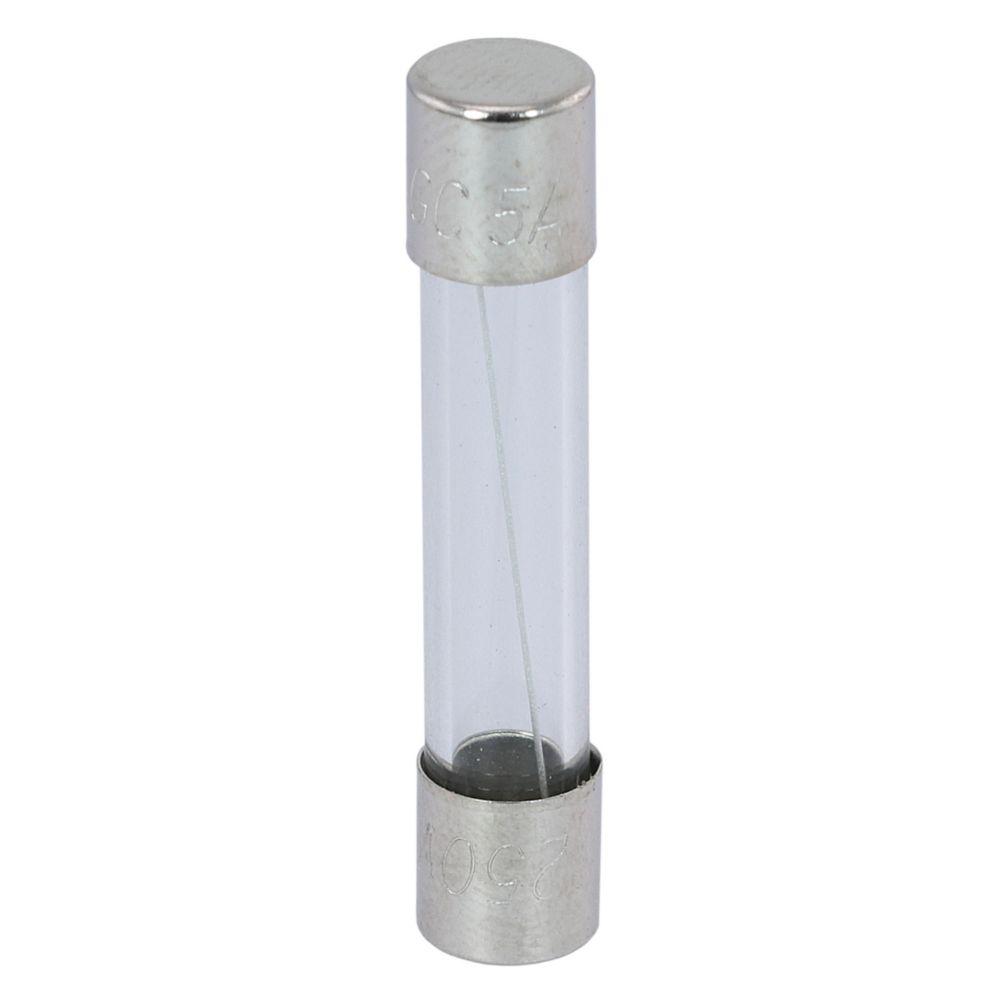

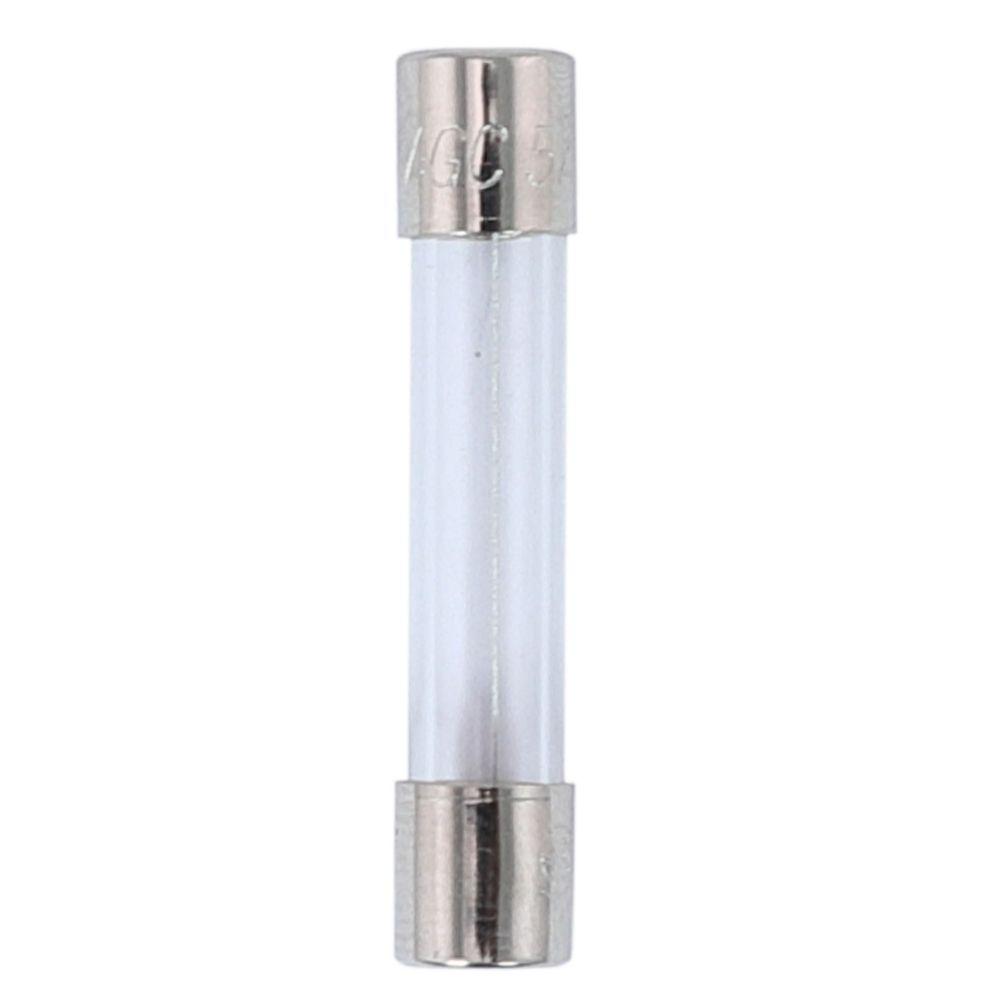

AGC-5-R is a Cooper Bussmann Eaton 5 Amp, 250 Volt, 3AG fast-acting glass tube fuse designed for electronic circuit protection.This fuse features a small dimension 1/4" x 1-1/4" glass tube construction with nickel-plated brass ferrule ends. It has a fast-acting response time suitable for electronic applications, with an interrupt rating of 10 kAIC at 125 Vac and 200 AIC at 250 Vac. The fuse is RoHS compliant and CE marked, ensuring quality and safety standards.
- Key Specifications
- Amperage Rating: 5 A
- Voltage Rating: 250 Vac, 32 Vdc (self certified)
- Fuse Type: Fast-Acting, Electronic
- Dimensions: 1/4" x 1-1/4" (3AG size)
- Interrupt Rating: 10 kAIC at 125 Vac, 200 AIC at 250 Vac
- Connection Type: Ferrule end x ferrule end
- Material: Glass tube with nickel-plated brass end caps
- Certifications: CE Marked, RoHS Compliant
- Response Time: 60 min at 135%, 120 sec at 200%
- Mounting Type: Holder (cartridge fuse)
- Part Number: AGC-5
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 5
- AIC rating : 200A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
- UPC : 007945800504
- GTIN : 00079458005042
- Weight : 5
