Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-40

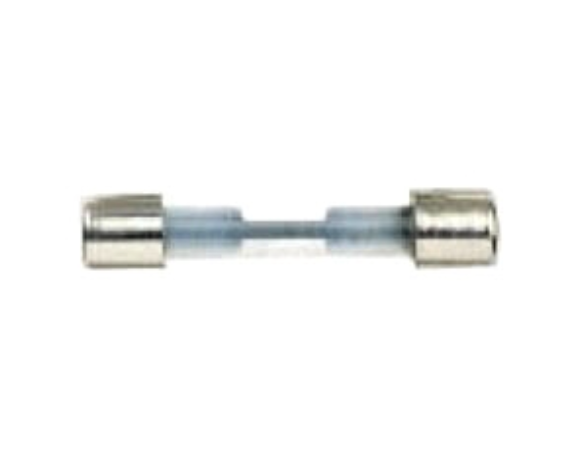

AGC-40 is a fast-acting glass tube fuse from Eaton designed for circuit protection applications.AGC-40 features a 40 ampere current rating and a voltage rating of 32 volts AC/DC. It is a 3AG (6.3 mm x 32 mm) size fuse with a fast blow response time, suitable for use in electronic circuits requiring quick interruption. The fuse has a typical interrupt rating of 1 kA at 32 VAC and is non-indicating. It mounts through a fuse holder and complies with UL 248-14 standards.
- Key Specifications
- Current Rating: 40 Amperes
- Voltage Rating: 32 Volts AC/DC
- Fuse Type: Fast-Acting (Fast Blow)
- Size: 3AG (6.3 mm x 32 mm)
- Interrupt Rating: 1,000 Amps at 32 VAC
- Mounting Type: Requires Fuse Holder (Through Hole)
- Material: Glass Tube with Nickel-Plated Brass End Caps
- Standards: UL Listed (UL 248-14)
- Non-Indicating Fuse
- Typical Resistance: Approximately 0.0016 to 0.0019 Ohms
Specifications
- Part Number: AGC-40
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 32
- Amperage : 40
- AIC rating : 1kA@32Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 051712703987
- Weight : 1
