Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-4

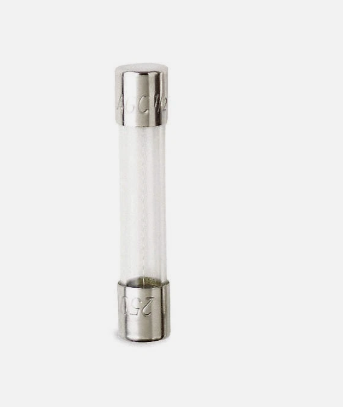

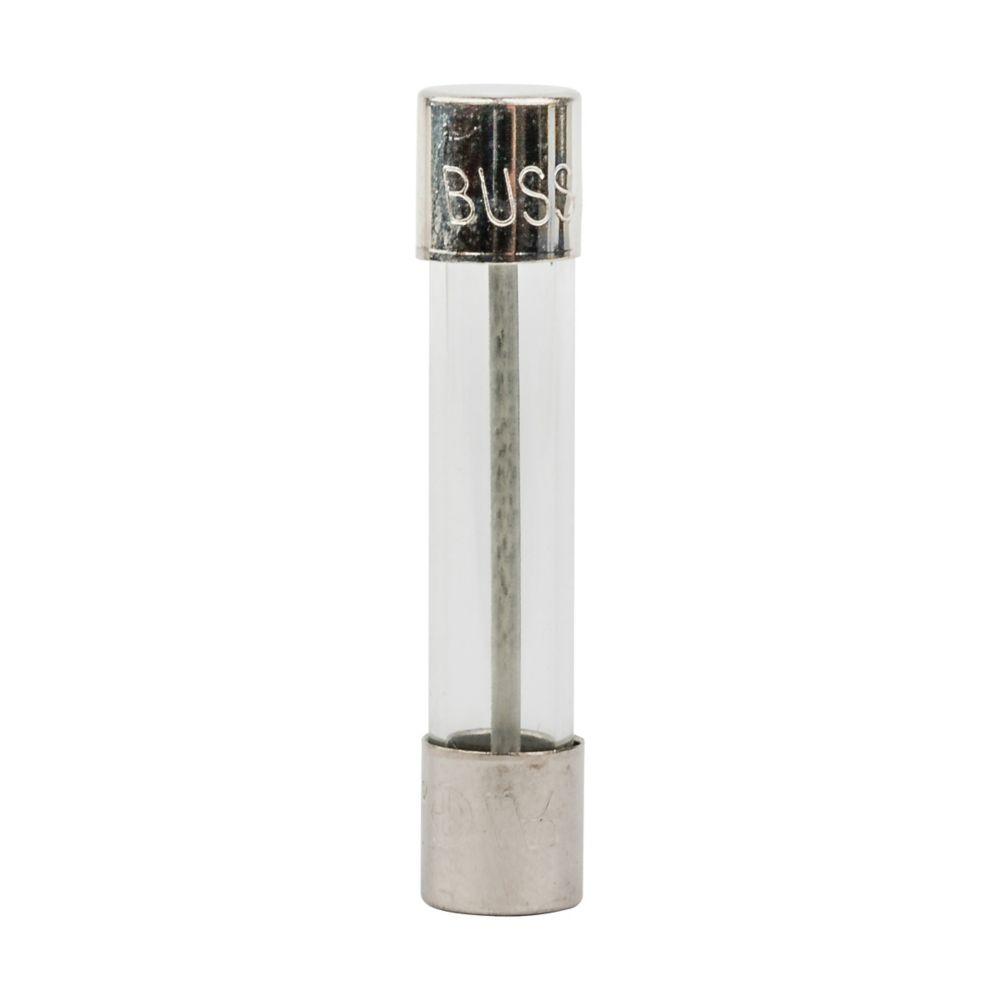

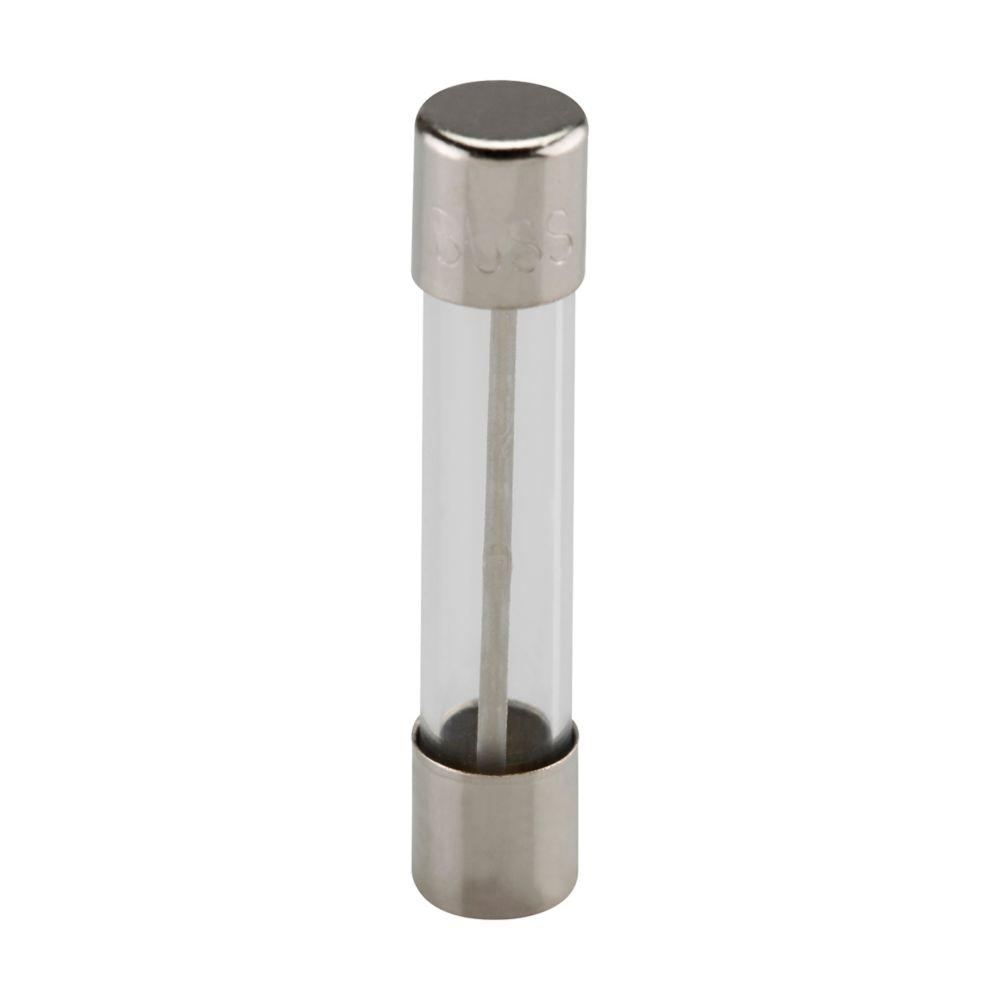

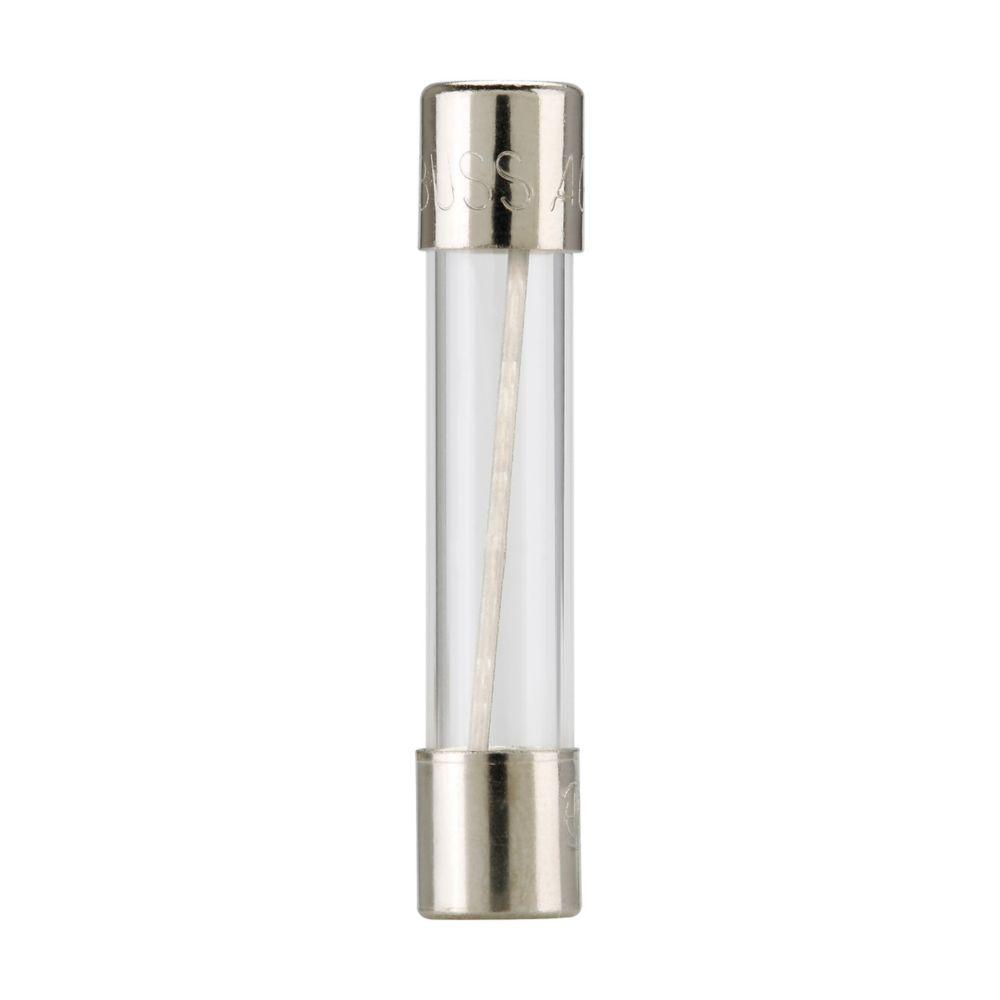

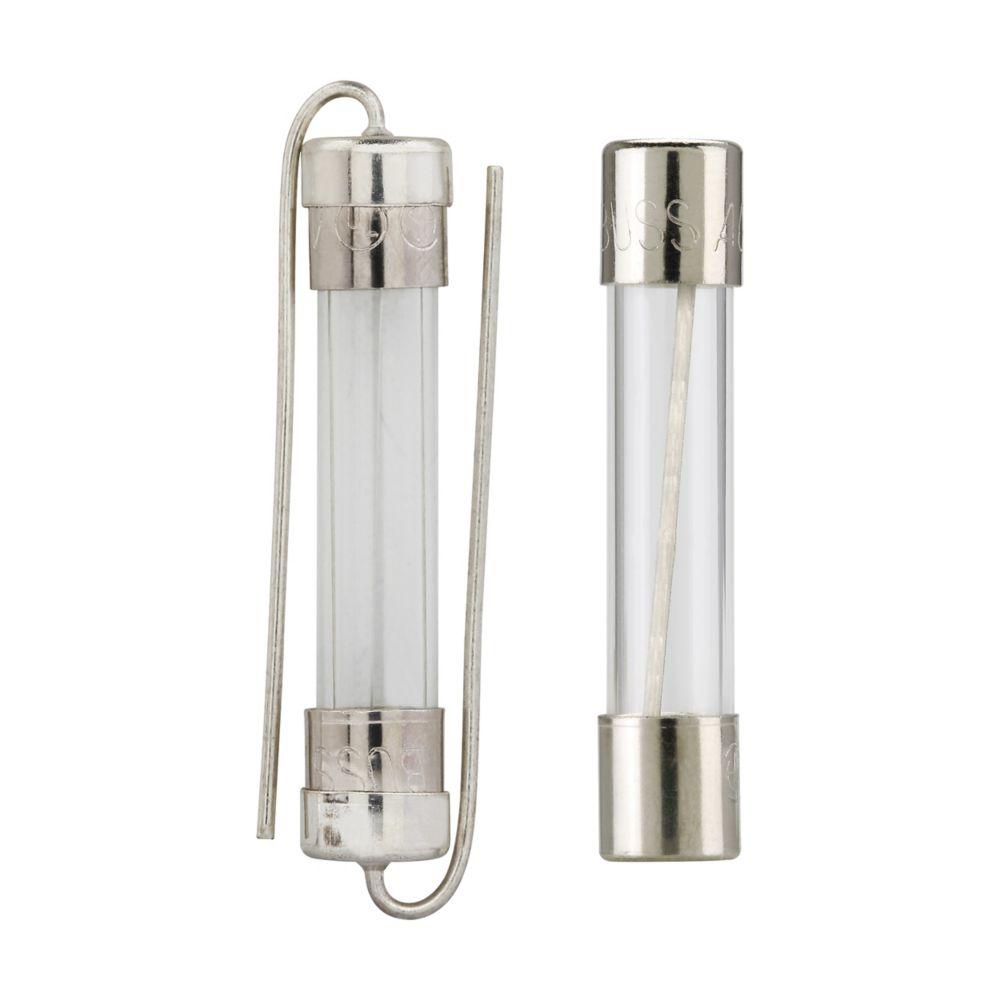

AGC-4 is a Cooper Bussmann fast-acting glass tube fuse rated for 4 amps and 250 volts AC, designed for electronic circuit protection.This AGC Series fuse features a 1/4 inch diameter by 1 1/4 inch length glass tube construction with nickel-plated brass end caps, providing reliable fast-acting protection with a 200A interrupt rating at 250 VAC.
- Key Specifications
- Amperage Rating: 4 A
- Voltage Rating: 250 VAC, 32 VDC (self-certified)
- Interrupt Rating: 200 AIC at 250 VAC, 10 kAIC at 125 VAC
- Fuse Type: Fast-acting, electronic
- Dimensions: 1/4 in diameter x 1 1/4 in length
- Connection: Ferrule end x ferrule end
- Material: Glass tube with nickel-plated brass end caps
- Compliance: CE Marked
- Response Time: 60 min at 135%, 120 sec at 200%
- Application: Electronic circuits
- Part Number: AGC-4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 4
- AIC rating : 200A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
- UPC : 78366900064
- GTIN : 00783669000641
- Weight : 0.6
