Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-35

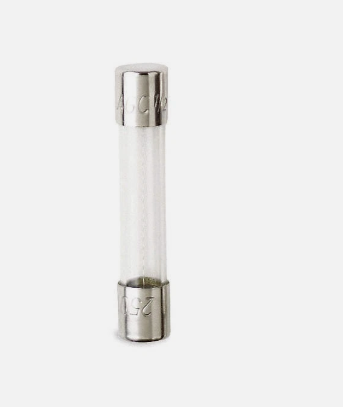

AGC-35-R is an Eaton Bussmann series fast-acting glass tube fuse rated for 35 amps and 32 volts AC/DC, designed for electronic circuit protection.AGC-35-R features a 3AG (6.3 mm x 32 mm) size with nickel-plated brass end caps and a fast blow characteristic for reliable overcurrent protection. It has a high interrupting rating of 1,000 amps at 32 volts AC, suitable for use in fuse holders or clips.
- Current Rating: 35 Amps
- Voltage Rating: 32 Volts AC/DC
- Fuse Type: Fast-Acting (Fast Blow)
- Size: 3AG (6.3 mm x 32 mm)
- Length: 1.25 inches (31.75 mm)
- Interrupting Rating: 1,000 Amps at 32 VAC
- Mounting Style: Fuse Holder/Clip
- End Caps: Nickel Plated Brass
- Weight: Approximately 0.001 lb
- Series: Eaton Bussmann AGC
- Certifications: UL Listed
Specifications
- Part Number: AGC-35
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 32
- Amperage : 35
- AIC rating : 1kA@32Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 07945800513
- GTIN : 00079458005134
- Weight : 0.15
