Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-3

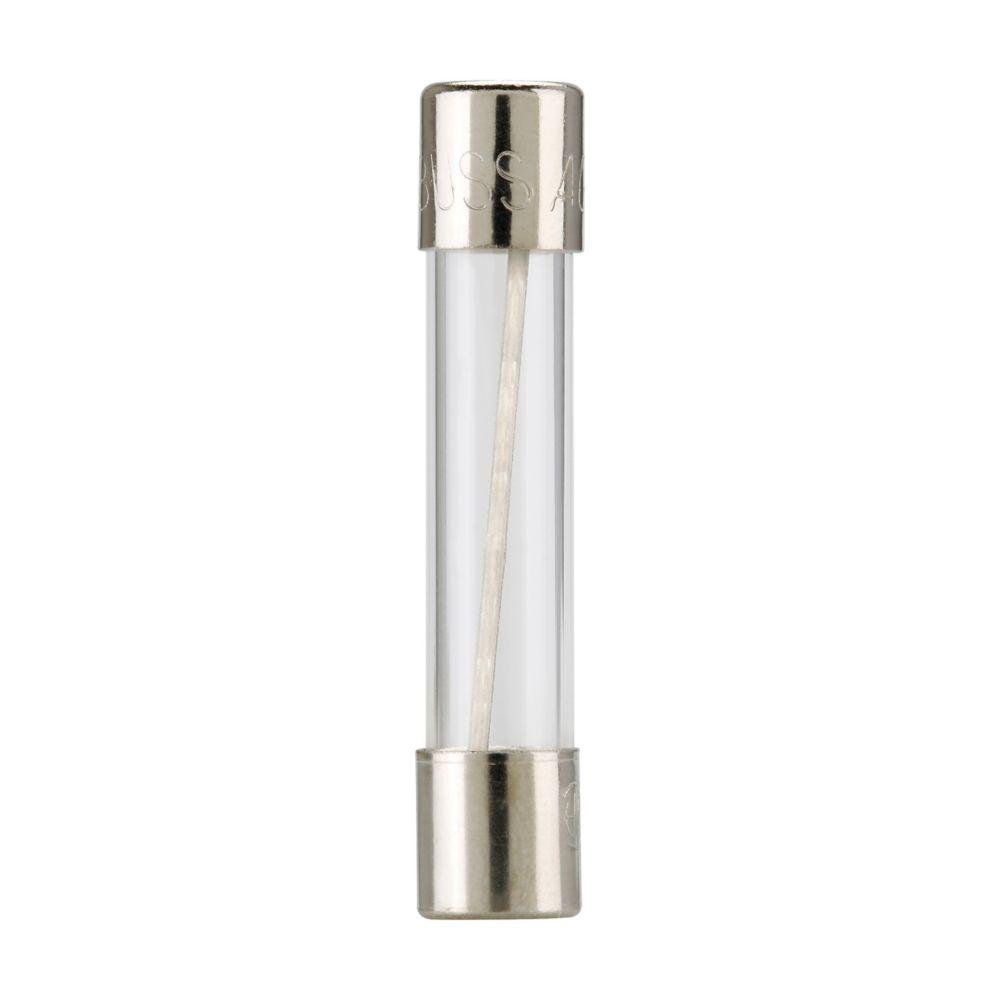

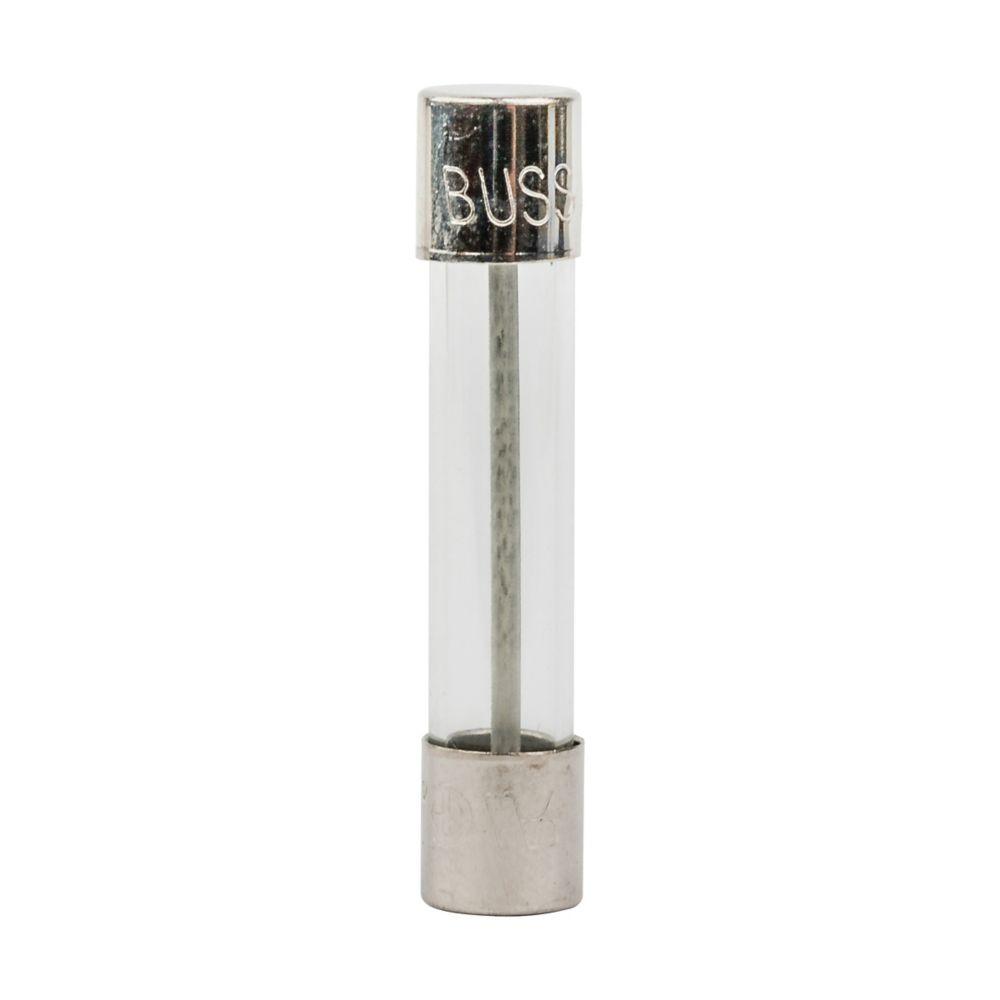

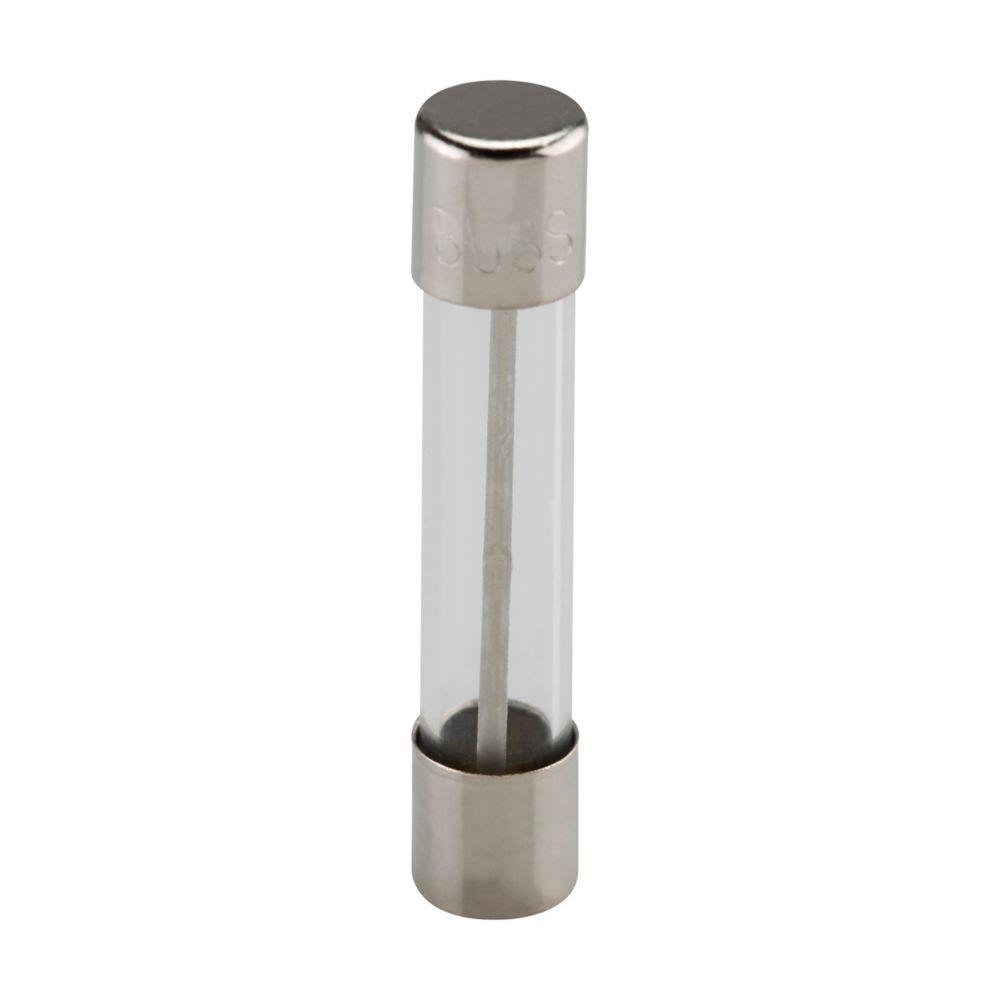

AGC-3 is a Cooper Bussmann fast-acting glass tube fuse rated at 3 amps and 250 volts designed for small dimension fuse applications.This AGC series fuse features a 1/4 inch by 1-1/4 inch cylindrical glass body with nickel-plated brass end caps, providing reliable overcurrent protection with a 35 amp interrupt rating. It is UL listed, CSA and CE certified, and mounts in standard fuse holders with ferrule termination.
- Manufacturer: Cooper Bussmann (Eaton)
- Series: AGC
- Part Number: AGC-3
- Amperage: 3 Amps
- Voltage Rating: 250 VAC
- Fuse Type: Fast Acting
- Size: 1/4" x 1-1/4" (6.4mm x 31.8mm)
- Interrupt Rating: 35 Amps
- Construction: Glass tube with nickel-plated brass end caps
- Mounting: Fuse holder with ferrule termination
- Certifications: UL Listed, CSA, CE
Specifications
- Part Number: AGC-3
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 3
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 007945800502
- GTIN : 00079458005028
- Weight : 5
