Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
AGC-3/10

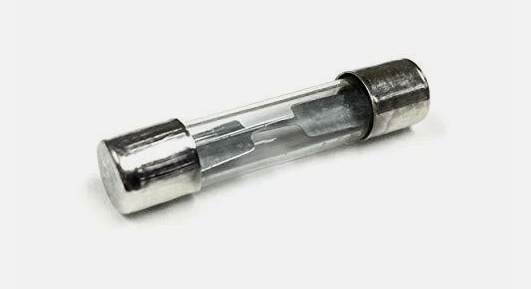

AGC-3/10 is a fast-acting glass tube fuse from the Eaton AGC series, designed for reliable circuit protection in electronic applications. This fuse features a 0.3A current rating and is rated for 250VAC and 32VDC, making it suitable for a wide range of low-voltage circuits. The fuse is constructed with nickel-plated brass end caps and a glass tube body for durability and clear visual inspection. The AGC-3/10 fuse is a cartridge-style fuse that requires a fuse holder for installation. It is fast-acting, providing quick response to overcurrent conditions, and is non-indicating, meaning it does not provide a visual indication when blown. The fuse is CE marked and RoHS compliant, ensuring it meets international safety and environmental standards.
- Part Number: AGC-3/10
- Manufacturer: Eaton
- Series: AGC
- Current Rating: 0.3A (300mA)
- Voltage Rating: 250VAC, 32VDC
- Interrupt Rating: 35A at 250VAC, 10kA at 125VAC
- Fuse Type: Fast-acting, glass tube
- Mounting Type: Requires holder
- End Cap Material: Nickel-plated brass
- Compliance: CE, RoHS
- Response Time: 60 min at 135%, 120 sec at 200%
- Operating Temperature: -55°C to +125°C
Specifications
- Part Number: AGC-3/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 3
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- Weight : 5.19
