Description
AGC-2

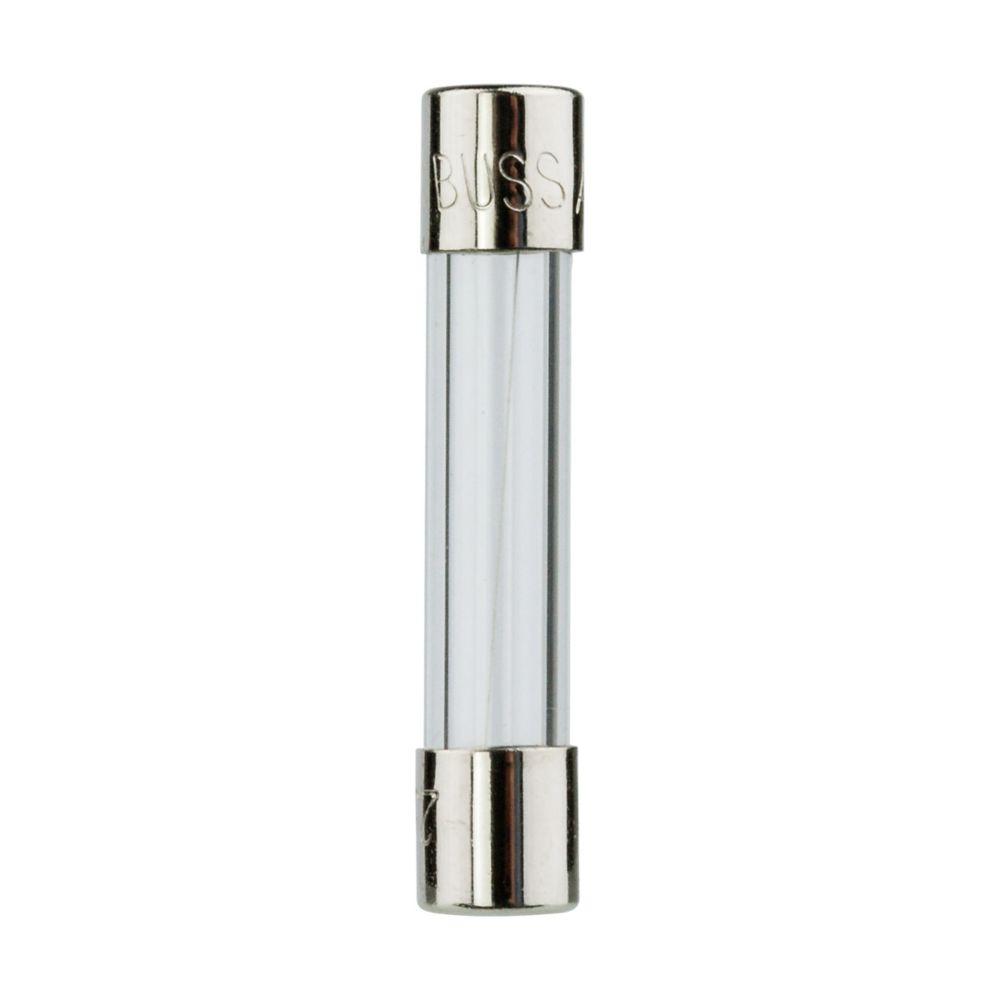

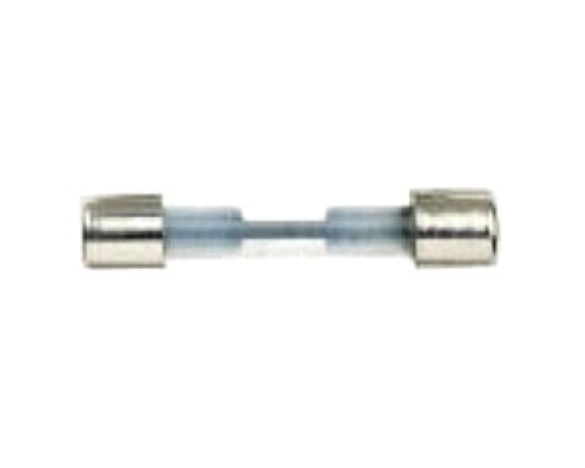

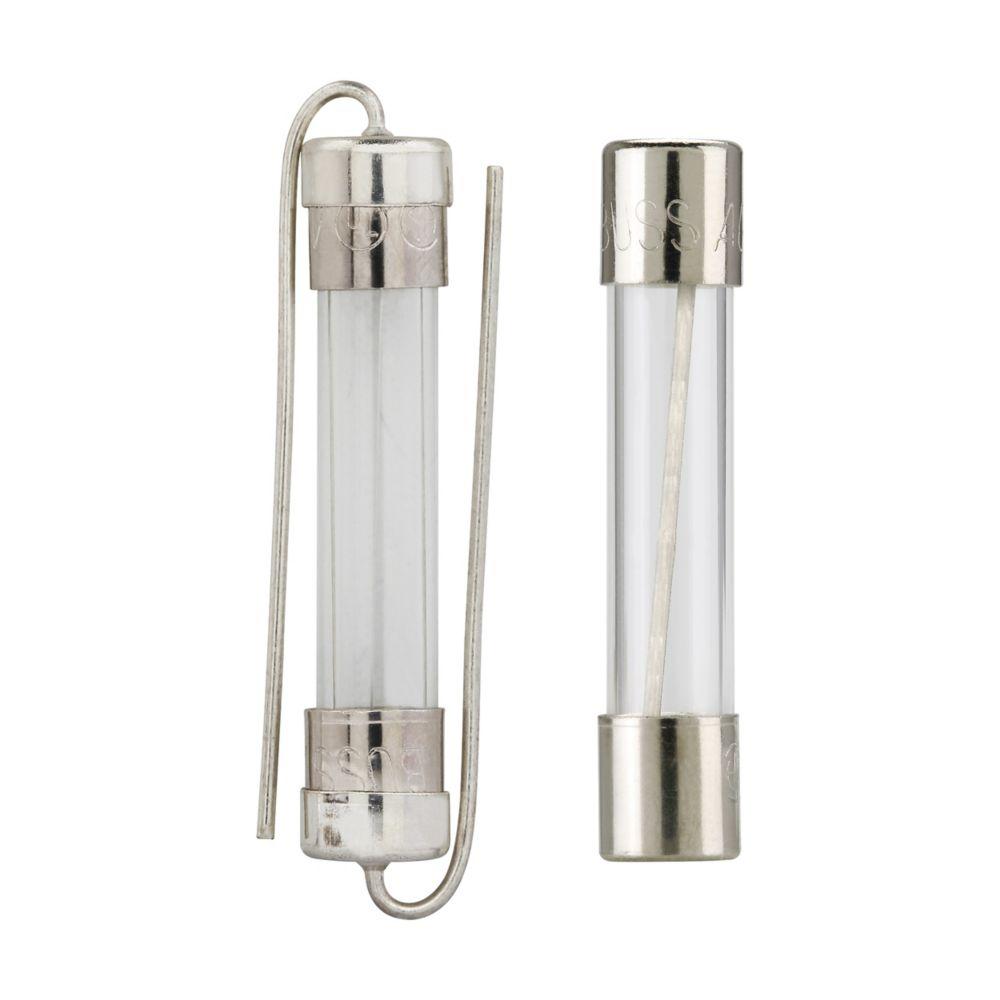

AGC-2 is a 2 Amp, 250 Volt fast-acting glass tube fuse from Cooper Bussmann designed for electronic circuit protection.This fuse features a 1/4 inch by 1 1/4 inch glass tube body with nickel-plated brass end caps, providing reliable interrupting ratings of 100 AIC at 250 VAC and 10,000 AIC at 125 VAC. It is UL listed and CSA certified, suitable for use in electronic applications requiring fast response times.
- Amperage Rating: 2 A
- Voltage Rating: 250 Vac
- Fuse Type: Fast Acting Glass Tube
- Dimensions: 1/4" x 1 1/4" (6.35 mm x 31.8 mm)
- Interrupting Rating: 100 AIC at 250 Vac, 10,000 AIC at 125 Vac
- End Caps: Nickel-plated brass
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Response Time: Fast Acting
- Application: Electronic circuits
- Non-indicating fuse
Specifications
- Part Number: AGC-2
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 2
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 078366900062
- GTIN : 00783669000627
- Weight : 5
