Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-15/100

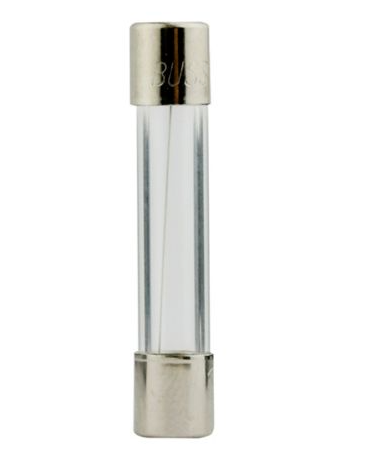

AGC-15/100 is a fast-acting glass tube fuse designed for circuit protection applications.
This Eaton fuse features a 150mA current rating and a 250VAC voltage rating. It has a 3AG (6.3 mm x 32 mm) size and is constructed with a glass tube and nickel-plated brass end caps. The fuse is designed for mounting in a clip or holder and offers a breaking capacity of 35A at 250VAC. It operates reliably within a temperature range of -55 °C to +125 °C and complies with Eaton's quality standards.
- Current Rating: 150mA (0.15A)
- Voltage Rating: 250VAC
- Fuse Type: Fast-Acting
- Fuse Size: 3AG (6.3 mm x 32 mm)
- Material: Glass tube with nickel-plated brass end caps
- Mounting Type: Clip / Holder
- Interrupt Rating: 35A at 250VAC
- Operating Temperature: -55 °C to +125 °C
- Manufacturer Series: AGC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: AGC-15/100
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 15
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 051712703611
- Weight : 1
