Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-1

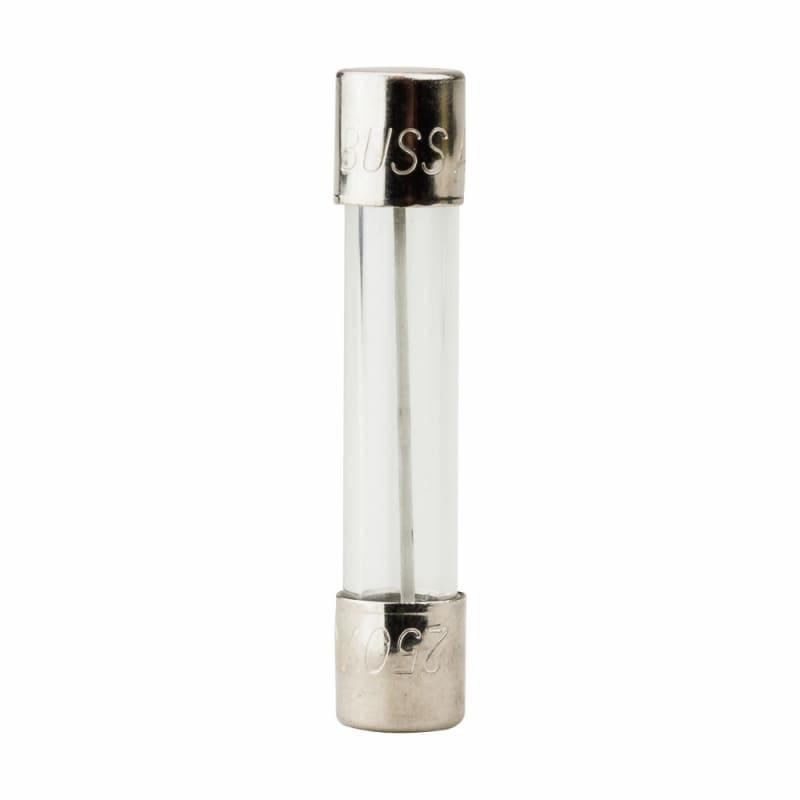

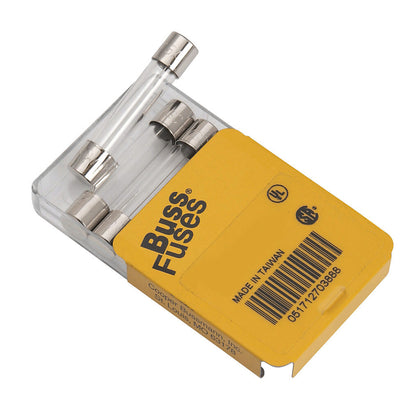

AGC-1 is a Cooper Bussmann fast-acting glass tube fuse rated at 1 amp and 250 volts AC, sized 1/4 inch by 1-1/4 inch.AGC-1 features nickel-plated brass end caps and a ferrule end connection, designed for electronic circuit protection with a 35 AIC interrupt rating at 250 VAC. It is UL listed, CSA certified, and RoHS compliant.
- Amperage: 1 Amp
- Voltage Rating: 250 VAC, 32 VDC
- Fuse Type: Fast-acting glass tube
- Physical Size: 1/4" x 1-1/4" (6.3 x 32 mm)
- Interrupt Rating: 35 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
- Connection: Ferrule end x ferrule end
- Material: Glass tube with nickel-plated brass end caps
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
- Non-indicating fuse
- Application: Electronic circuits
Specifications
- Part Number: AGC-1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 1
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 783669000603
- GTIN : 00079458004984
- Country of Origin : Mexico
- Weight : 0.05
- Certification : Aluminum
