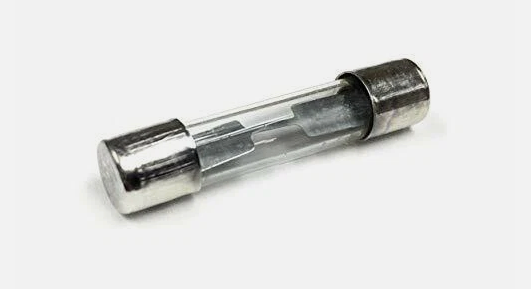

AGC-1/8 - Eaton 0.125A 250V Fast-Acting Glass Tube Fuse 1/4" x 1-1/4" Cartridge

AGC-1/8

AGC-1/8 is a fast-acting glass tube fuse from Eaton designed for electronic circuit protection.This Eaton Bussmann series fuse features a 0.125 ampere rating with a voltage rating of 250 Vac and 32 Vdc (self certified). It has a 1/4 inch diameter by 1-1/4 inch length cartridge mounting type with ferrule end connections. The fuse offers an interrupt rating of 35 AIC at 250 Vac and 10 kAIC at 125 Vac. It is non-indicating and constructed with a glass tube and nickel-plated brass end caps.

Key Specifications
• Amperage Rating: 0.125A
• Voltage Rating: 250 Vac, 32 Vdc (self certified)
• Interrupt Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
• Fuse Type: Fast-acting glass tube
• Mounting Type: Cartridge (1/4" x 1-1/4")
• Connection: Ferrule end x ferrule end
• Response Time: 60 min at 135%, 120 sec at 200%
• Fuse Indicator: Non-indicating
• Material: Glass tube with nickel-plated brass end caps
• Application: Electronic circuits
• Compliance: RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: AGC-1/8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : AGC Series
• Type : AGC
• Voltage : 250
• Amperage : 1
• AIC rating : 35A@250Vac
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1



Product Data

• GTIN : 00051712703604
• Weight : 0.1
