Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
AGC-1-8/10

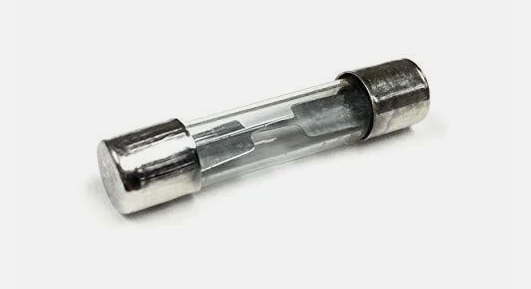

AGC-1-8/10 is an Eaton AGC series fast-acting glass tube fuse rated for 1.8 amperes and 250 volts AC, designed for electronic circuit protection.AGC-1-8/10 features a 1/4 inch diameter by 1-1/4 inch length glass tube with nickel-plated brass ferrule end caps, providing reliable fast-acting protection with a 100 A interrupt rating at 250 Vac and 10 kAIC at 125 Vac. It is non-indicating and self-certified for 32 Vdc operation, suitable for use with axial leads and fuse caps.
- Amperage Rating: 1.8 A
- Voltage Rating: 250 Vac, 32 Vdc (self certified)
- Interrupt Rating: 100 AIC at 250 Vac, 10 kAIC at 125 Vac
- Fuse Type: Fast-acting glass tube
- Dimensions: 1/4 in diameter x 1-1/4 in length (6.3 mm x 32 mm)
- Connection: Ferrule end x ferrule end
- Response Time: 60 min max at 135%, 120 sec max at 200%
- Fuse Indicator: Non-indicating
- Material: Nickel-plated brass end caps
- Certifications: CE Marked, RoHS Compliant
- Application: Electronic circuits
Specifications
- Part Number: AGC-1-8/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 1
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- Weight : 5.19
