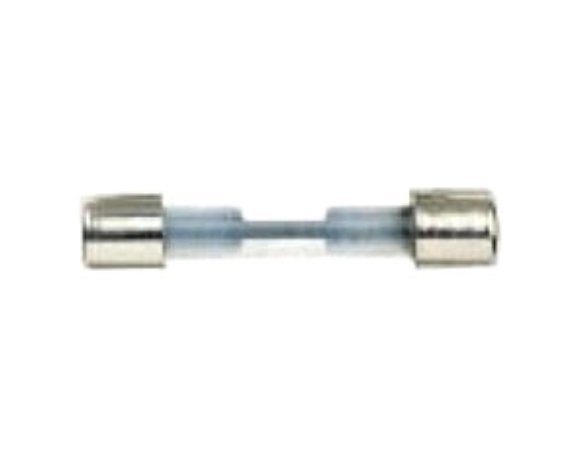

AGC-1/4-R - Eaton 0.25A 250Vac 1/4 x 1-1/4 Inch Fast-Acting Glass Tube Fuse

AGC-1/4

AGC-1/4-R is a fast-acting glass tube fuse from Eaton designed for overcurrent protection in electronic circuits.AGC-1/4-R features a 0.25 ampere rating with a voltage rating of 250 Vac and 32 Vdc (self certified). It has a 1/4 x 1-1/4 inch size with ferrule end connections and a 10 kA interrupt rating at 125 Vac and 35 AIC at 250 Vac. This fuse complies with RoHS standards and is non-indicating.

• Amperage: 0.25 A
• Voltage Rating: 250 Vac, 32 Vdc (self certified)
• Fuse Type: Fast-acting glass tube
• Size: 1/4 x 1-1/4 inch (3AG)
• Interrupt Rating: 10 kA at 125 Vac, 35 AIC at 250 Vac
• Connection: Ferrule end x ferrule end
• Response Time: 60 min at 135%, 120 sec at 200%
• Material: Glass tube with nickel-plated brass end caps
• Compliance: RoHS Compliant
• Application: Electronic circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AGC-1/4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : AGC Series
• Type : AGC
• Voltage : 250
• Amperage : 0.25
• AIC rating : 35A@250Vac
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• GTIN : 00051712703666
• Weight : 5
