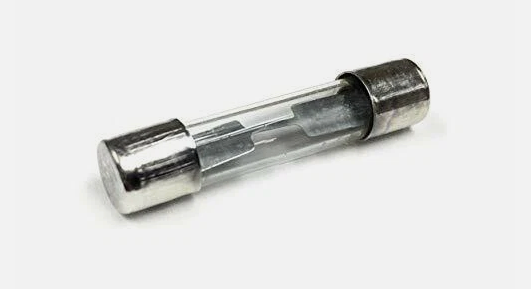

AGC-1-3/4 - Eaton 1.75A 250V Fast-Acting Glass Tube Fuse 3AG 6.3x32mm

AGC-1-3/4

AGC-1-3/4 is a fast-acting glass tube fuse from Eaton designed for reliable overcurrent protection in electronic circuits.This Eaton AGC series fuse features a 1.75 ampere current rating and a voltage rating of 250 VAC and 32 VDC. It is a 3AG size fuse with dimensions of 6.3 mm by 32 mm, requiring a fuse holder for mounting. The fuse has a fast blow response time and interrupt ratings of 100 A at 250 VAC, 1 kA at 32 V AC, and 10 kA at 125 V AC. It is self-certified and complies with UL 248-14 standards for electronic circuit protection.

Key Specifications
• Part Number: AGC-1-3/4
• Manufacturer: Eaton
• Current Rating: 1.75 A
• Voltage Rating: 250 VAC, 32 VDC
• Fuse Type: Fast-Acting (Fast Blow)
• Fuse Size: 3AG (6.3 mm x 32 mm)
• Mounting Type: Requires Holder
• Interrupt Rating: 100 A @ 250 VAC, 1 kA @ 32 V AC, 10 kA @ 125 V AC
• Series: AGC
• Certifications: UL 248-14 (self-certified)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: AGC-1-3/4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : AGC Series
• Type : AGC
• Voltage : 250
• Amperage : 1.75
• AIC rating : 100A@250Vac
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1



Product Data

• Weight : 0.3
