Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
AGC-1/16

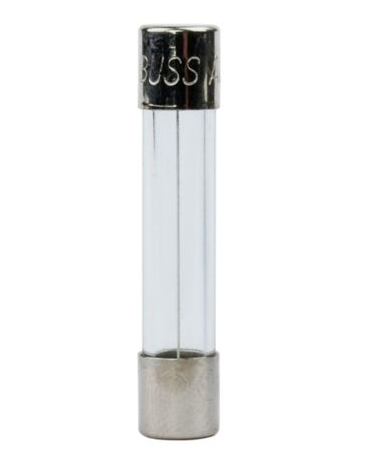

AGC-1/16 is a fast-acting glass tube fuse from Eaton designed for low-voltage circuit protection applications. This compact fuse features a 62.5mA current rating and operates at 250VAC, making it suitable for sensitive electronic equipment and precision circuits requiring reliable overcurrent protection. Key Specifications
- Current Rating: 62.5mA (1/16A)
- Voltage Rating: 250VAC
- Fuse Type: Fast-Acting
- Fuse Size: 3AG (6.3mm x 32mm)
- Breaking Capacity: 35A at 250VAC
- Operating Temperature Range: -55°C to +125°C
- Physical Size: 1/4 inch x 1-1/4 inch
- End Cap Material: Nickel-plated brass
- Tube Material: Glass
Specifications
- Part Number: AGC-1/16
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 1
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- Weight : 5
