Product Info
- Manufacturer:Cooper Bussmann, Bussmann, Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-1/10

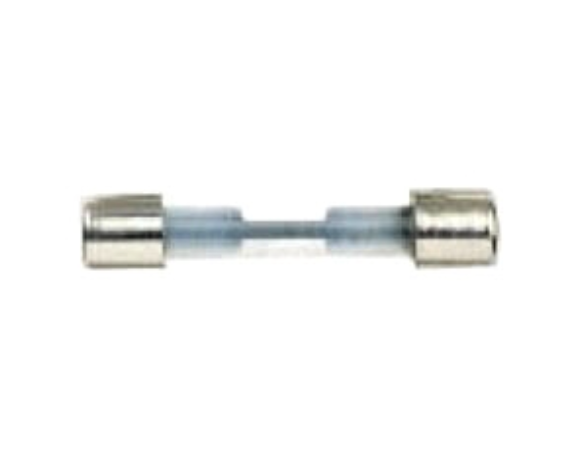

AGC-1/10 is an Eaton Bussmann series fast-acting glass tube fuse designed for reliable protection in electronic circuits.
This 3AG size fuse features a 0.10A current rating, 250VAC/32VDC voltage rating, and a nickel-plated brass ferrule end cap construction. It is non-indicating, RoHS compliant, and suitable for use without axial leads. The AGC-1/10 offers a fast response to overcurrent conditions, making it ideal for sensitive electronic applications.
-
Key Specifications
- Part Number: AGC-1/10
- Manufacturer: Eaton
- Amperage: 0.10A
- Voltage: 250VAC, 32VDC (self certified)
- Poles: 1
- Mounting Type: Ferrule end (no axial leads)
- Interrupt Rating: 35A at 250VAC, 10kA at 125VAC
- Series/Frame: AGC (3AG size, 1/4" x 1-1/4")
- Trip Unit: Fast-acting (60 min at 135%, 120 sec at 200%)
- Certifications: RoHS Compliant
- Fuse Indicator: Non-indicating
- Material: Glass tube, nickel-plated brass end caps
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: AGC-1/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 0.1
- AIC rating : 35A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 051712703642
- GTIN : 00051712703642
- Country of Origin : Mexico
- Weight : 1
