Product Info
- Manufacturer:Cooper Bussmann, Bussmann, Eaton
- Sub-Category:Low Voltage Fuse
Description
AGC-1-1/4

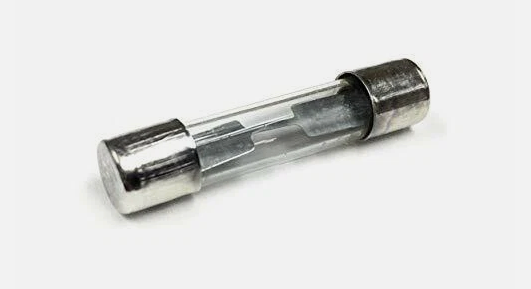

AGC-1-1/4 is a Cooper Bussmann fast-acting glass tube fuse rated for 1.25 amps and 250 volts AC in a 1/4" x 1-1/4" cartridge size.This fuse features a nickel-plated brass end cap and is designed for use in fuse holders or blocks. It has an interrupting rating of 100 AIC at 250 VAC and 10,000 AIC at 125 VAC, meeting UL 248-14 standards for overcurrent protection of electronic circuits. The fuse is UL listed and CSA certified for reliable safety and performance.
- Key Specifications
- Amperage: 1.25 A
- Voltage Rating: 250 VAC
- Fuse Type: Fast-Acting
- Physical Size: 1/4" x 1-1/4" (6.3 mm x 32 mm)
- Mounting Type: Cartridge fuse holder
- Interrupting Rating: 100 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
- End Cap: Nickel-plated brass
- Certifications: UL Listed, CSA Certified
- Series: AGC
Specifications
- Part Number: AGC-1-1/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : AGC Series
- Type : AGC
- Voltage : 250
- Amperage : 1.25
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 051712703819
- Weight : 0.01 lb
