Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
AG50

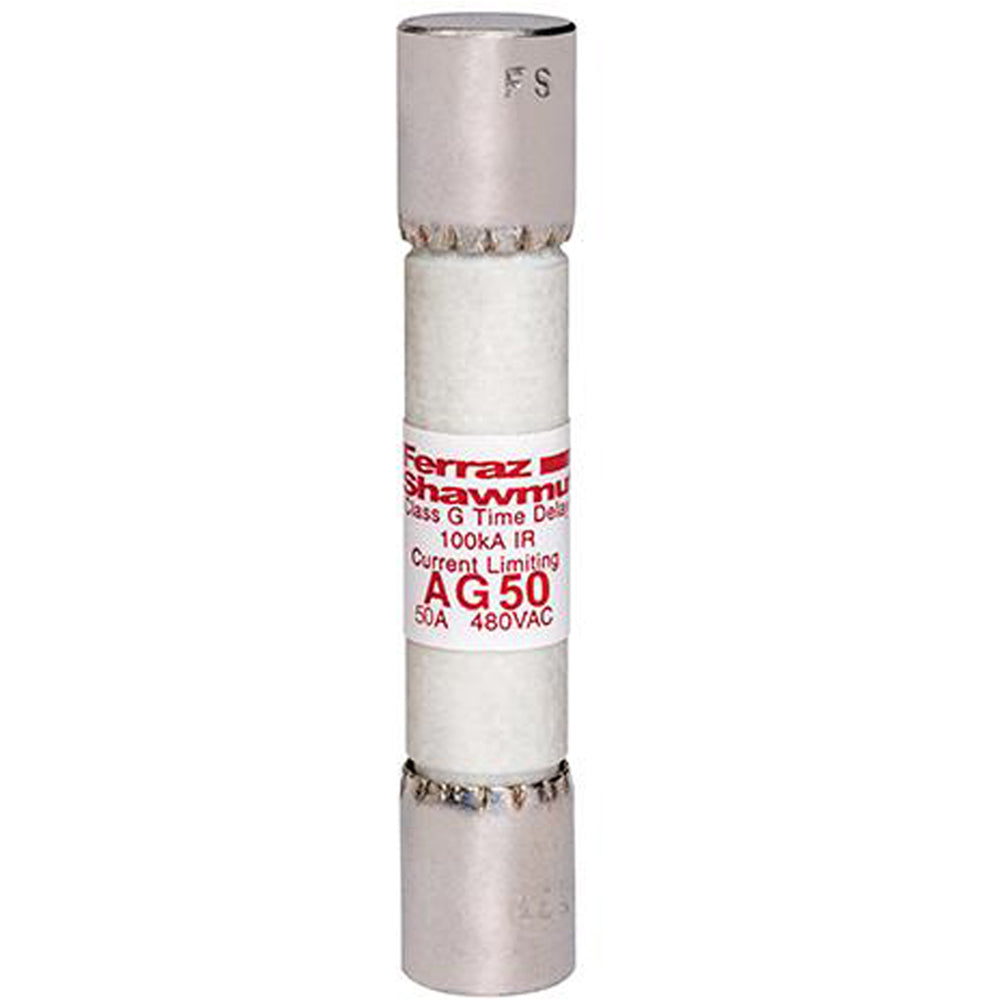

AG50 is a Class G time-delay fuse designed for industrial and commercial power distribution applications requiring reliable circuit protection. This Mersen Amp-Trap® fuse features a ferrule connection and is rated for 50 amps at 480 volts AC, providing robust protection in low-voltage systems. The cylindrical body and tin-plated copper terminals ensure secure installation and long-term performance in demanding environments.Engineered for durability and safety, the AG50 fuse is suitable for use in fuse blocks, fuse holders, and panelboards where Class G fuses are specified. Its time-delay characteristic allows for temporary overloads without nuisance tripping, making it ideal for motor and transformer protection.
- Part Number: AG50
- Manufacturer: Mersen
- Amperage: 50 A
- Voltage Rating: 480 V AC
- Fuse Type: Class G
- Interrupt Rating: 100 kA
- Response Time: Time-Delay
- Connection Type: Ferrule
- Body Diameter: 0.406 in (10.41 mm)
- Length: 2.25 in (57.15 mm)
- Approvals: UL 248-5, CSA C22.2
- Series: Amp-Trap®
Specifications
- Part Number: AG50
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : AG
- Voltage : 480
- Amperage : 50
- AIC rating : 100kA@480V
- Diameter : 0.41
- Class Rating : G
- Barrels : 1
Product Data
- UPC : 782001905217
- GTIN : 00782001905217
- Country of Origin : Mexico
- Dimensions : x 2-1/4" x
- Weight : 0.03
- Certification : CSA Certified to C22.2 No. 248.5, UL Listed 248-5
