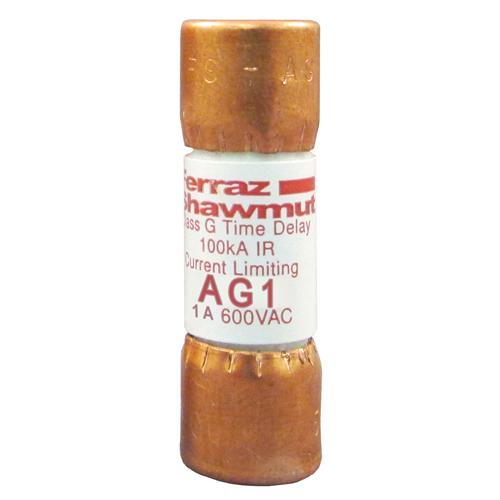

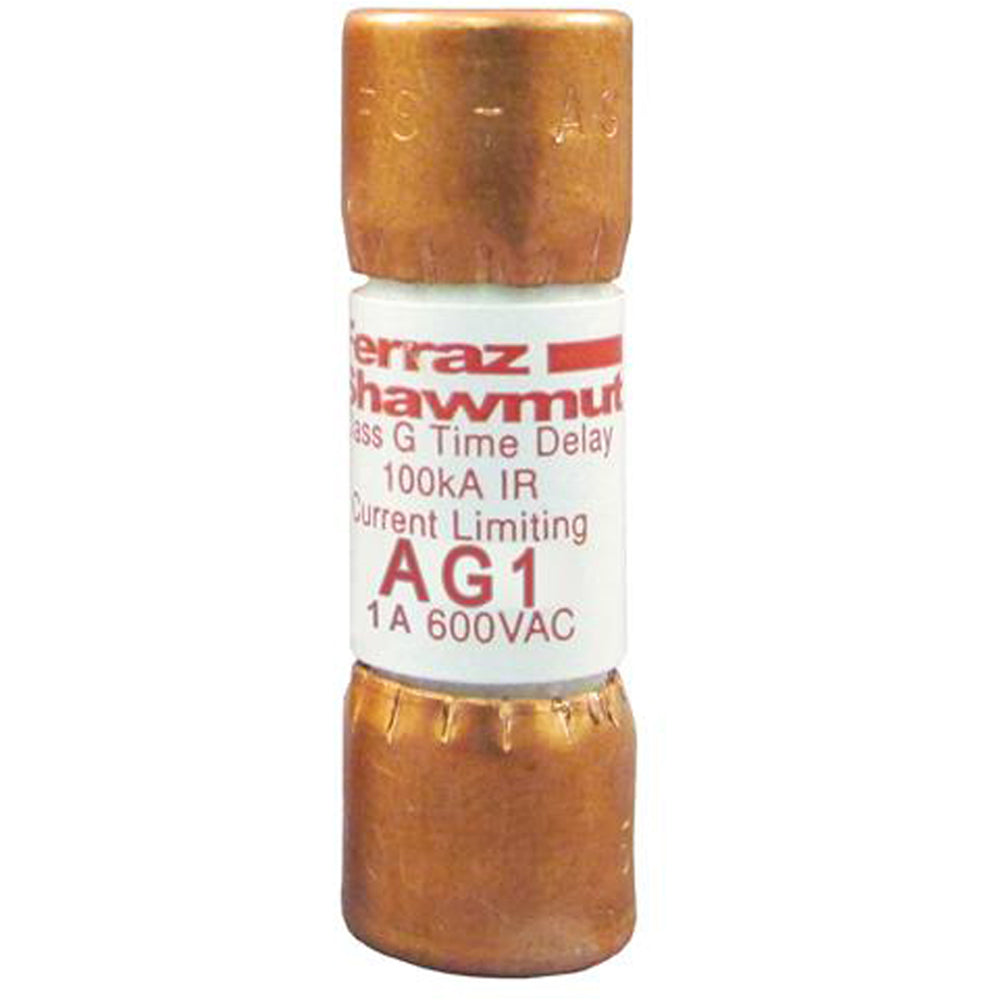

AG1 - Mersen 1A 600VAC Class G Time Delay Low Voltage Fuse

AG1

AG1 is a Mersen 1 Amp, 600 VAC Class G time delay low voltage fuse designed for reliable circuit protection.AG1 features a cylindrical body with a ferrule terminal type and is UL listed and CSA certified. It offers a 100 kA interrupt rating and is RoHS compliant, making it suitable for industrial and general-purpose applications requiring fast acting, current limiting protection.

Key Specifications
• Amperage: 1 Amp
• Voltage: 600 VAC
• Fuse Class: Class G
• Trip Class: Time Delay
• Interrupt Rating: 100 kA
• Terminal Type: Ferrule
• Mounting Type: Clip
• Body Material: GMG
• UL Listed: Yes (File E2137)
• CSA Certified: Yes (C22.2 No. 248.5)
• RoHS Compliant: Yes
• Product Length: 1.31 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AG1
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : AG
• Voltage : 600
• Amperage : 1
• AIC rating : 100kA@600V
• Diameter : 0.41
• Class Rating : G
• Barrels : 1

Product Data

• UPC : 782001905057
• GTIN : 00782001905057
• Country of Origin : Mexico
• Dimensions : x 1.31 in x
• Weight : 0.02
• Certification : CSA Certified to C22.2 No. 248.5, UL Listed 248-5
