AG1/2 - Mersen 1/2 Amp 600 Volt AC Class G Time Delay Fuse

AG1/2

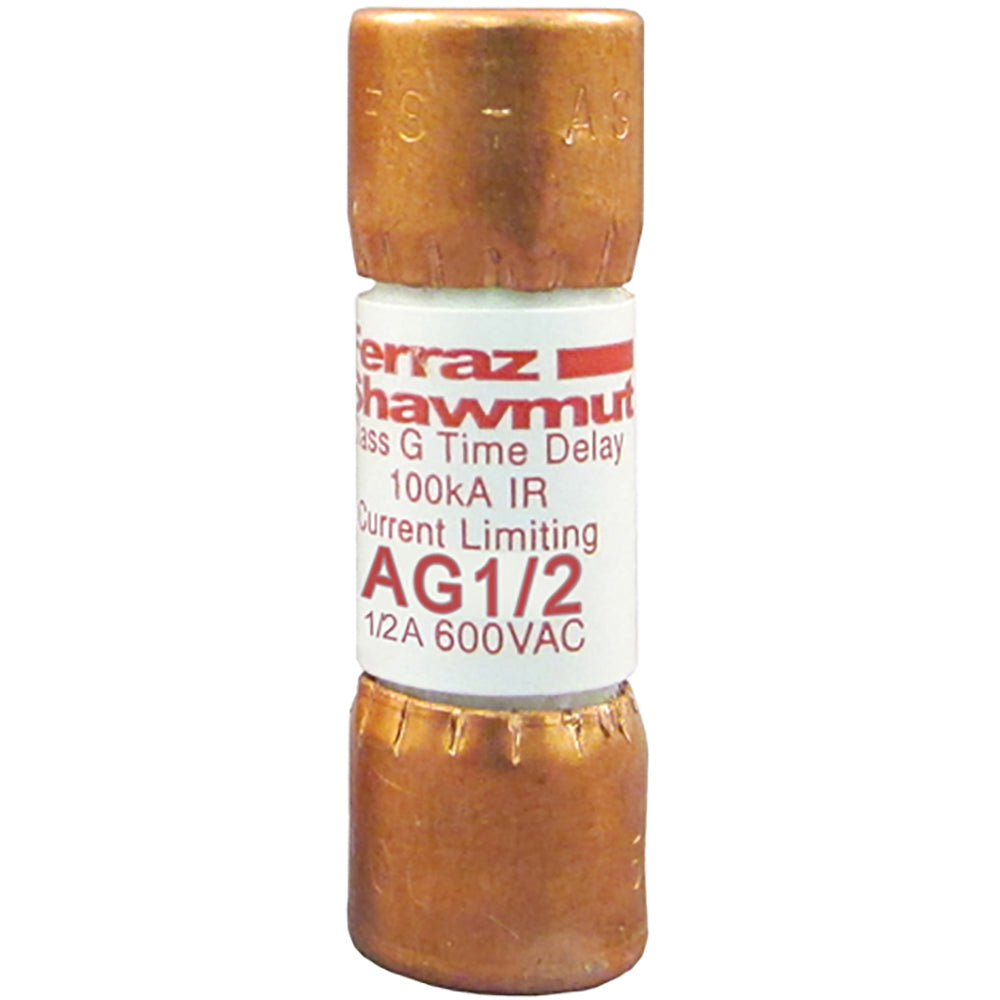

AG1/2 is a Mersen 1/2 Amp, 600 Volt AC Class G time delay fuse designed for reliable branch circuit protection.This fuse features a current limiting design with a time delay trip characteristic (above 5A), suitable for lighting, heating, and appliance applications. It has a physical size of 0.406" x 1.31", an AC interrupting rating of 100,000 AIC, and is UL Listed to Standard 248-5 and CSA Certified to Standard C22.2 No. 248.5. The fuse body is made of fiberglass for dimensional stability in harsh industrial environments.

Key Specifications
• Amperage: 1/2 Amp
• Voltage: 600 Volt AC
• Fuse Class: Class G
• Trip Type: Time Delay (above 5A)
• Interrupt Rating: 100,000 AIC
• Physical Size: 0.406" x 1.31"
• Mounting Type: Ferrule
• Certifications: UL Listed, CSA Certified
• Body Material: Fiberglass
• Applications: Lighting, Heating, Appliances
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: AG1/2
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : AG
• Voltage : 600
• Amperage : 1
• AIC rating : 100kA@600V
• Diameter : 0.41
• Class Rating : G
• Barrels : 1



Product Data

• UPC : 078200190504
• GTIN : 00782001905040
• Country of Origin : Mexico
• Dimensions : x 1.31 in x
• Weight : 5
• Certification : CSA Certified to C22.2 No. 248.5, UL Listed 248-5
