Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
AG1-1/2

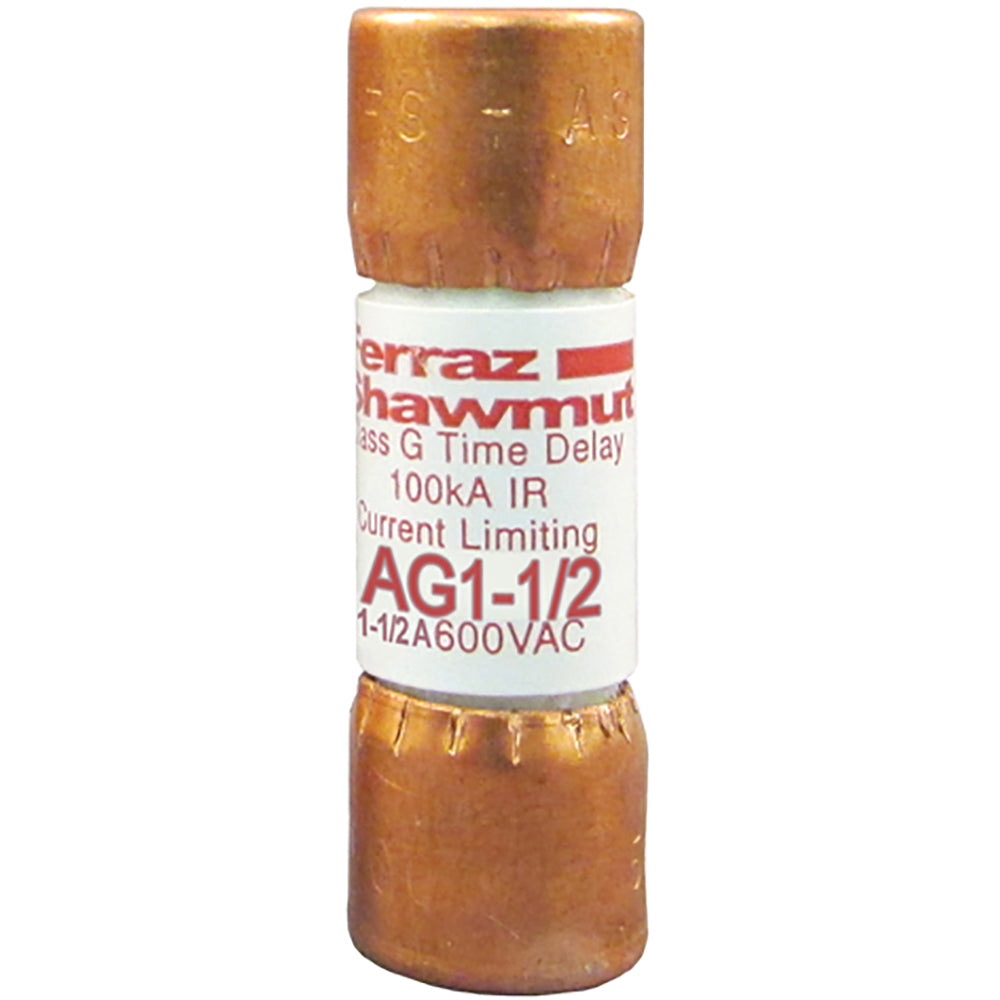

AG1-1/2 is a Mersen Class G time delay fuse designed for reliable branch-circuit protection in lighting, heating, and appliance applications. This cartridge fuse features a 1.5A current rating and a 600VAC voltage rating, making it suitable for a wide range of industrial and commercial uses. The Mersen AG1-1/2 fuse is constructed with a fiberglass body for dimensional stability in harsh environments. It offers a high interrupt rating of 100 kA at 600 VAC, ensuring safety and performance under fault conditions. This fuse is UL Listed and CSA certified, meeting the requirements of UL 248-5 and CSA C22.2 standards.
- Amperage: 1.5A
- Voltage Rating: 600VAC
- Fuse Class: Class G
- Interrupt Rating: 100 kA at 600 VAC
- Mounting Type: Cartridge
- Series/Frame: Amp-Trap AG
- Speed/Characteristic: Time Delay
- Approvals: UL, CSA, RoHS
- Dimensions: 0.406" Dia x 1.31" L
- Operating Temperature: -25°C to 80°C
- Body Material: Fiberglass
- Application: Lighting, Heating, Appliances
Specifications
- Part Number: AG1-1/2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : AG
- Voltage : 600
- Amperage : 1
- AIC rating : 100kA@600V
- Diameter : 0.41
- Class Rating : G
- Barrels : 1
Product Data
- UPC : 782001905064
- GTIN : 00782001905064
- Country of Origin : Mexico
- Dimensions : x 1.31 in x
- Weight : 0.02
- Certification : CSA Certified to C22.2 No. 248.5, UL Listed 248-5
