Description
AF80-30-11-13

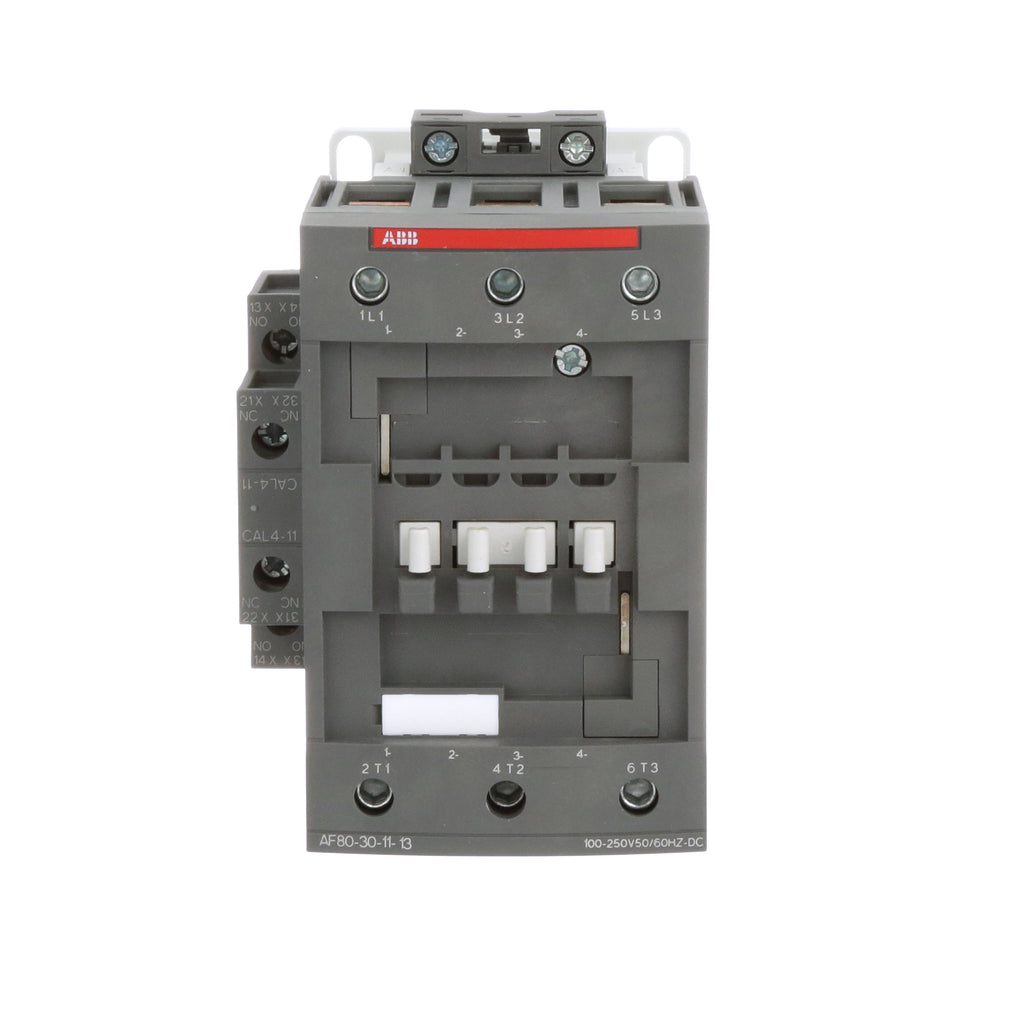

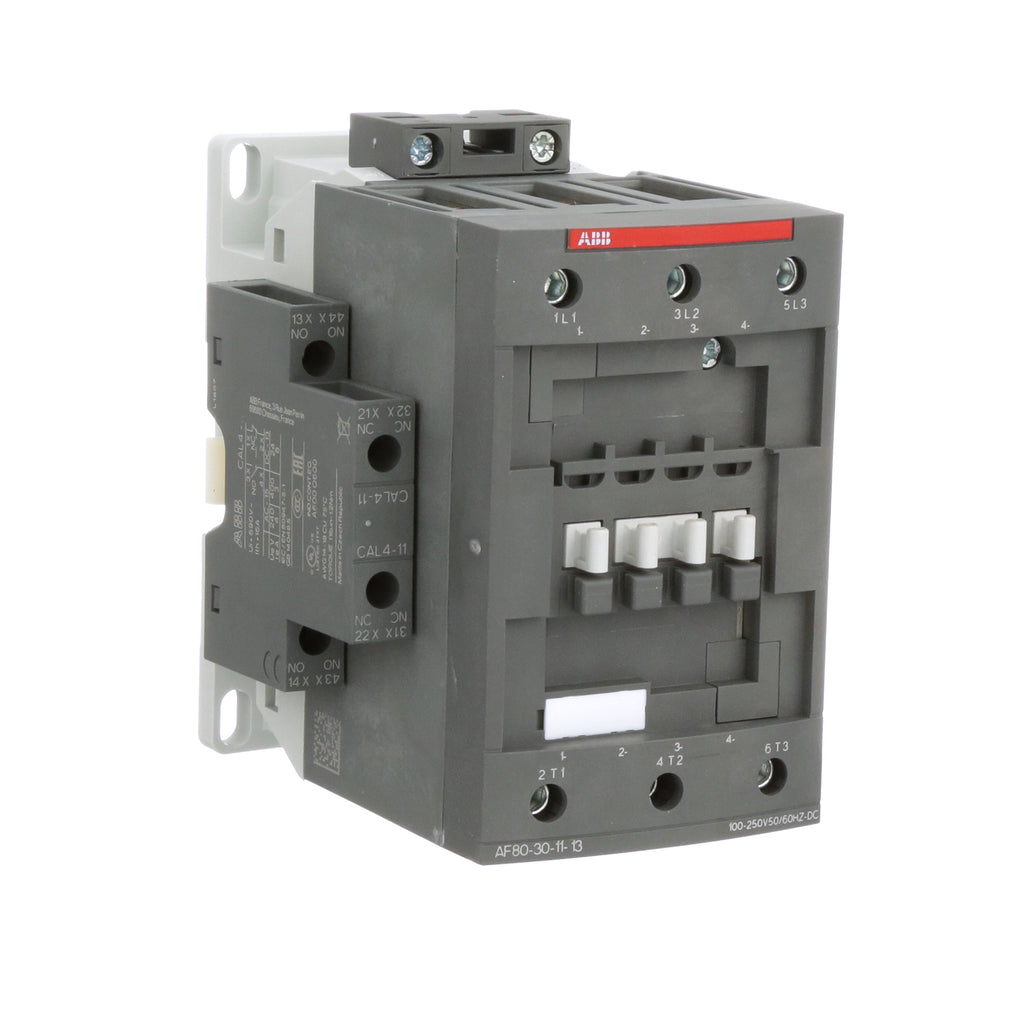

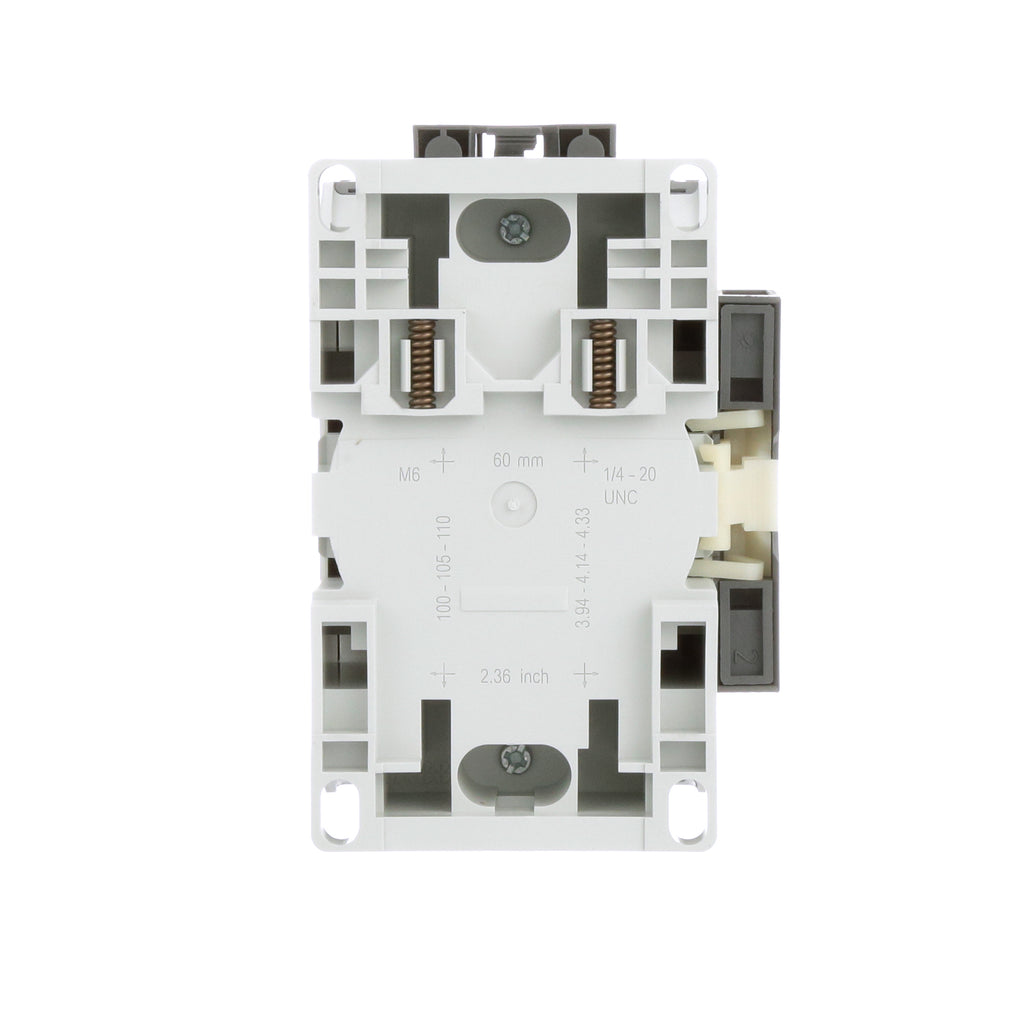

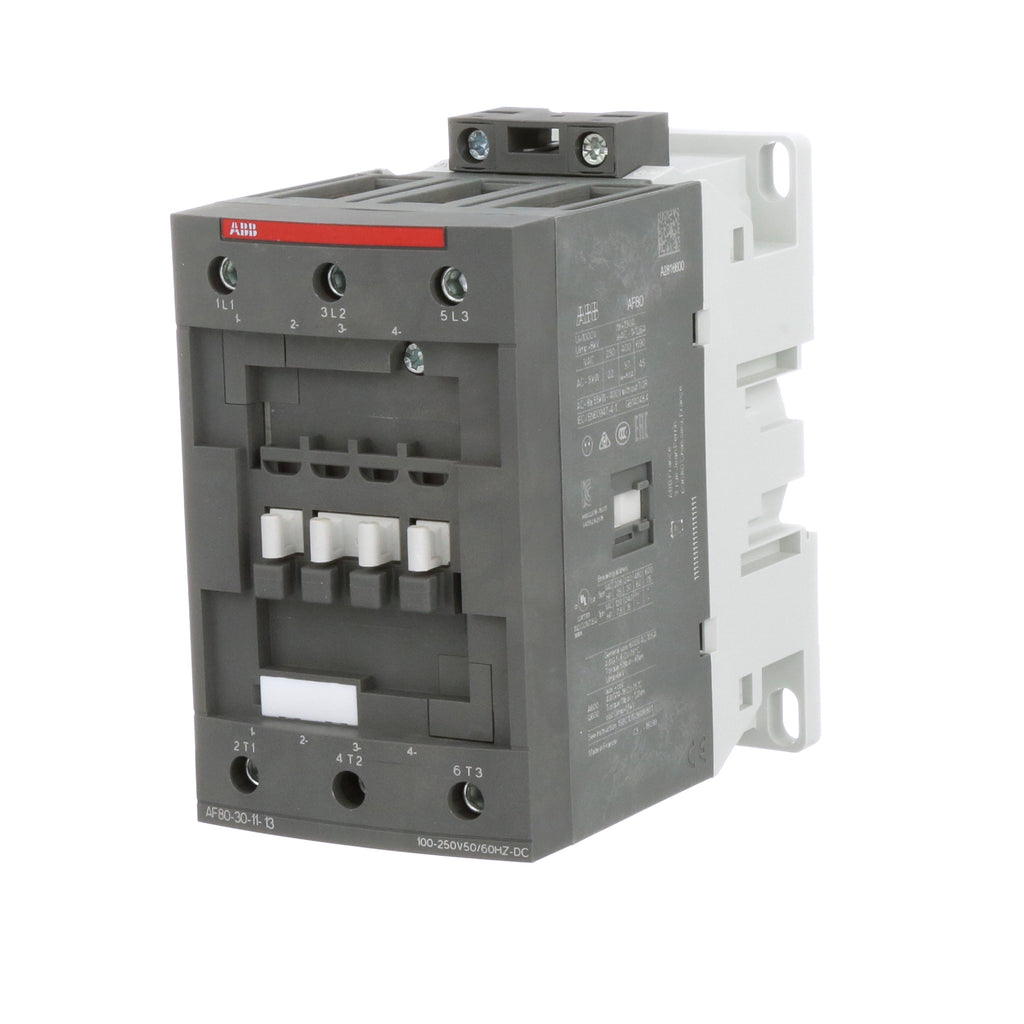

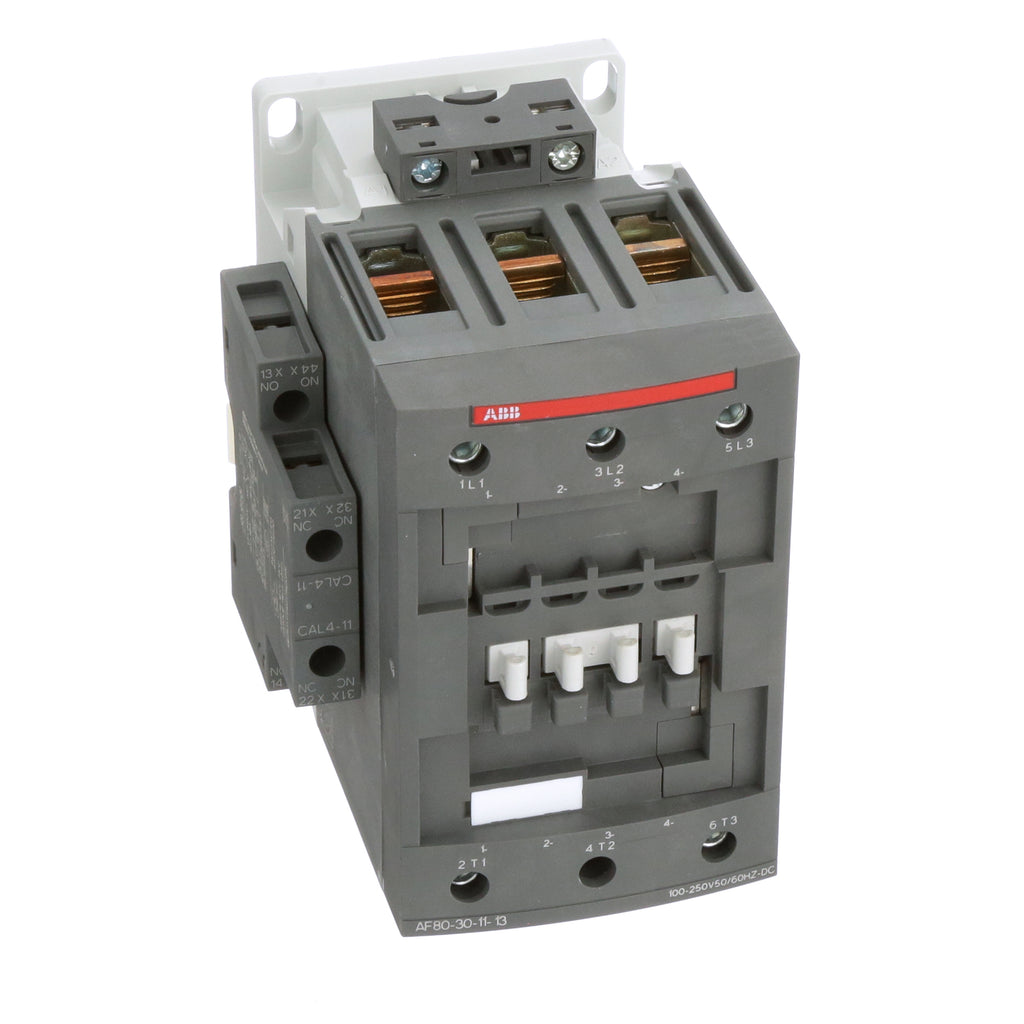

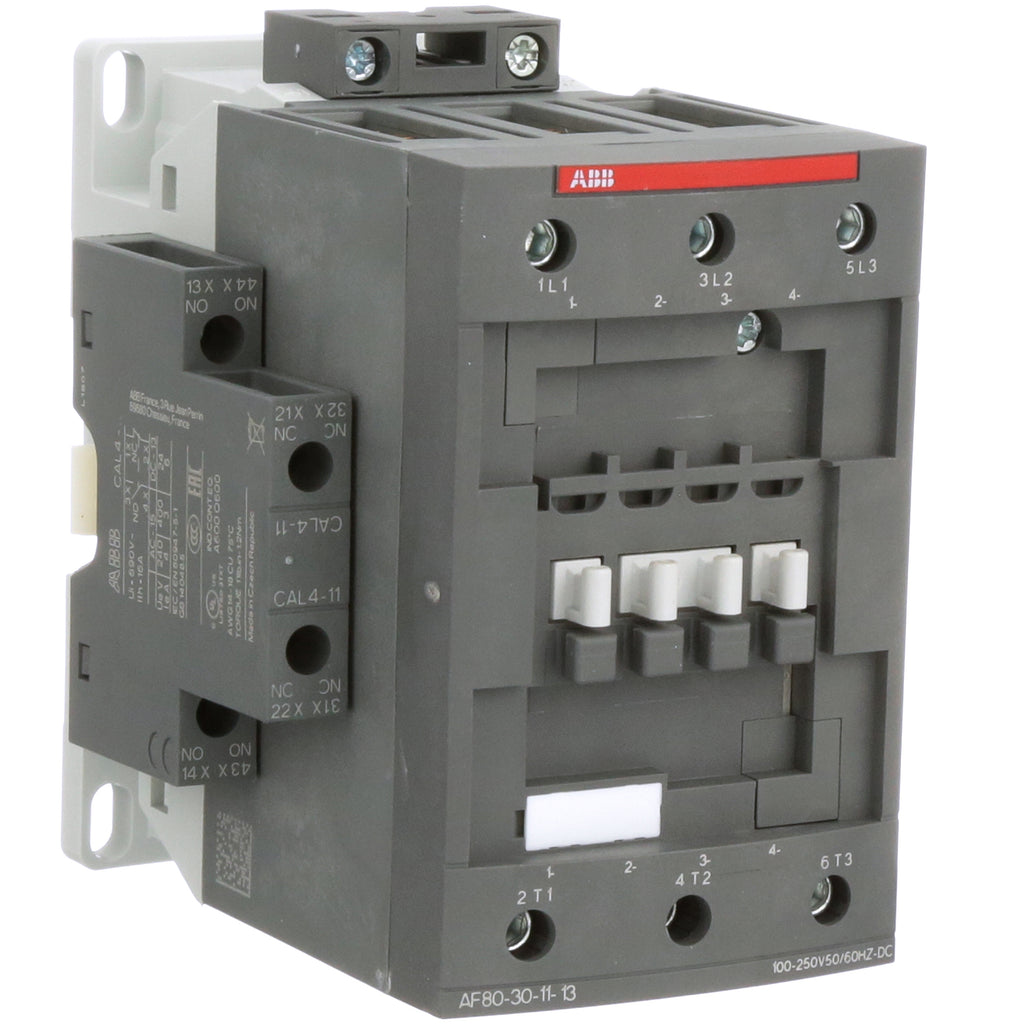

AF80-30-11-13 is a robust ABB 3-pole motor contactor rated for 80 amps with a wide-range 100-250 V AC/DC coil and pre-mounted auxiliary contacts.
This contactor is designed for controlling single and three-phase motors and switching power circuits up to 37 kW at 400 V. It features 1 normally open and 1 normally closed auxiliary contact, screw terminals, and supports IEC voltage ratings up to 1000 V and UL ratings up to 600 V. The AF80 series offers energy-efficient operation with a wide control voltage range and high mechanical and electrical switching frequencies.
- Rated operational current: 80 A
- Poles: 3
- Coil voltage: 100-250 V AC/DC
- Auxiliary contacts: 1 NO + 1 NC pre-mounted
- Voltage rating: 1000 V IEC / 600 V UL
- Motor control power: up to 37 kW at 400 V
- Mounting type: screw terminals
- High mechanical and electrical switching frequency
- Suitable for single and three-phase motors
- Compact size: approx. 4.7 x 2.76 x 4.57 inches
- Energy-efficient coil design
- Certifications: IEC and UL compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This includes a 125 VDC coil.
Specifications
- Part Number: AF80-30-11-13
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Aux Contacts : 1 NO + 1 NC
Product Data
- Dimensions : Depth / Length 116 mm X Height 125.5 mm X Width 82 mm
- Weight : 2.76
