Description
AF50-30-11-72

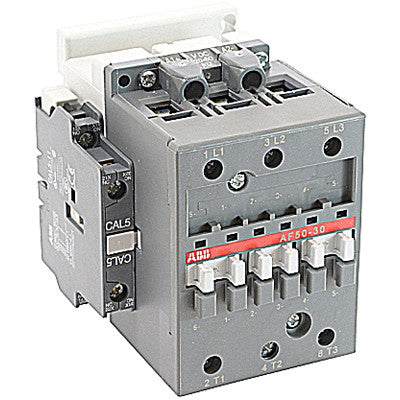

AF50-30-11-72 is a 3-pole motor contactor from ABB's AF50 Series designed for controlling 3-phase motors and power circuits up to 600 V AC and 240 V DC.This contactor features a 20-60 VDC magnetic coil with low holding power consumption, 80 A nominal current rating for general purpose AC1 use, and 54 A for UL motor switching AC3. It supports motor loads up to 50 HP at 575/600 V 3-phase and includes 1NO and 1NC auxiliary contacts with screw termination. The compact AF50 frame reduces coil energy consumption by up to 80%, making it efficient and reliable for industrial motor control applications.
- Manufacturer: ABB
- Series: AF50
- Poles: 3 NO (Normally Open)
- Coil Voltage: 20-60 VDC
- Nominal Current: 80 A (AC1)
- UL Motor Switching Current (AC3): 54 A
- Max Motor HP: 15 HP (200/208V), 20 HP (230/240V), 40 HP (460/480V), 50 HP (575/600V)
- Auxiliary Contacts: 1NO, 1NC
- Termination: Screw
- Frame Size: AF50
- Weight: 2.6 lbs
Specifications
- Part Number: AF50-30-11-72
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF50
- Voltage : 1000
- Amperage : 80
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 60
- Coil Voltage Minimum : 20
Product Data
- UPC : 47152211472
- GTIN : 03471522114723
- Weight : 3
