Description
AF460-30-11-70

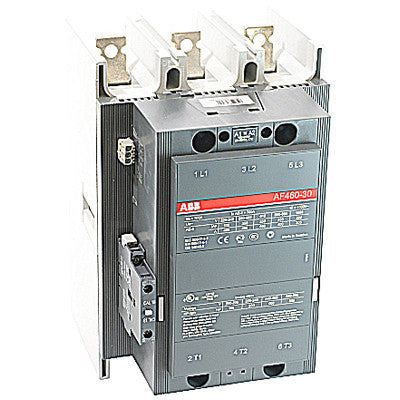

AF460-30-11-70 is a 3-pole contactor from ABB designed for motor control and power distribution applications up to 1000 V IEC or 600 V UL rated. This AC/DC non-reversing IEC contactor features an electronically controlled magnetic coil that accepts a wide control voltage range from 100-250 VAC or 100-250 VDC, making it versatile for various industrial applications. The contactor is suitable for motor starting, isolation, bypass, and distribution functions with a maximum load current of 650 A at General Purpose AC1 rating and 480 A at UL Motor Switching AC3 rating. It includes pre-mounted auxiliary contacts (1NO, 1NC) and main circuit bars for simplified installation.
- Manufacturer: ABB
- Series: AF460
- Poles: 3NO (3-pole)
- Amperage: 650 A General Purpose, 480 A Motor Switching
- Coil Voltage: 100-250 VAC, 100-250 VDC
- Rated Voltage: Up to 1000 V IEC, 600 V UL
- Type: AC Non-Reversing IEC
- Auxiliary Contacts: 1NO, 1NC
- Termination: Screw
- Frame Size: AF460
- Weight: 27.21 lbs
- Frequency: 50/60 Hz
Additional Information
This includes a 250 VDC coil.
Specifications
- Part Number: AF460-30-11-70
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF460
- Voltage : 1000
- Amperage : 650
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NO + 1 NC
- Coil Voltage Maximum : 250
- Coil Voltage Minimum : 100
Product Data
- UPC : 32050021765
- GTIN : 07320500217658
- Dimensions : Depth / Length 216 mm X Height 278 mm X Width 186 mm
- Weight : 30
