Description
AF38-30-00-14

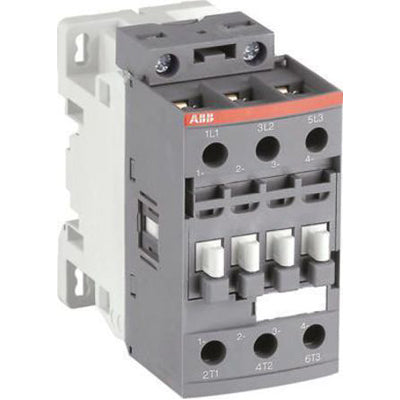

AF38-30-00-14 is a 3-pole non-reversing contactor from ABB's AF Series, designed for reliable motor control and power switching applications. This contactor features an electronic coil interface for reduced energy consumption and is suitable for use with a wide range of control voltages. The AF38-30-00-14 is engineered for controlling 3-phase motors and non-inductive or slightly inductive loads, supporting up to 690 V AC and 220 V DC. It is ideal for industrial environments where efficient and robust motor control is required.
- 3-pole non-reversing contactor
- Rated motor load: 38 A
- General purpose rating: 50 A
- Control circuit voltage: 250-500 V AC/DC
- Maximum AC voltage: 690 V
- Maximum DC voltage: 220 V
- Motor power rating: 18.5 kW at 400 V AC (AC-3)
- UL motor rating: 25 hp at 480 V
- Rated making capacity: 10 x Ie AC-3
- Maximum breaking capacity: 500 A at 440 V
- Heat dissipation per pole: 1.3 W (AC-3)
- Mounting: Screw terminals
Additional Information
This includes a 380 VDC coil.
Specifications
- Part Number: AF38-30-00-14
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF38
- Voltage : 690
- Amperage : 50
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 500
- Coil Voltage Minimum : 250
Product Data
- UPC : 47152311154
- GTIN : 03471523111547
- Country of Origin : France
- Dimensions : Depth / Length 86 mm X Height 86 mm X Width 45 mm
- Weight : 1
