Description
AF26-30-00-12

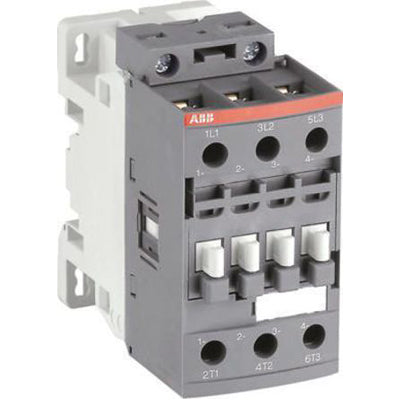

AF26-30-00-12 is a 3-pole, 45 amp AC non-reversing motor contactor from ABB designed for controlling power circuits up to 690 V AC and 220 V DC.This contactor features an electronic coil interface compatible with 48-130 V AC/DC control voltages, screw terminal connections, and is suitable for motor control applications with a UL motor switching rating of 26 A (AC3). It supports general purpose AC1 rating of 45 A and is UL and cULus certified. The compact design reduces coil energy consumption by up to 80%, making it efficient for industrial motor control.
- Key Specifications
- Manufacturer: ABB
- Part Number: AF26-30-00-12
- Poles: 3 NO (Normally Open)
- Nominal Voltage: 48-130 V AC/DC coil
- Current Rating: 45 A (AC1), 26 A (AC3 UL motor switching)
- Mounting Type: Screw terminals
- Interrupt Rating: Suitable for motor control up to 690 V AC
- Series: AF Series
- Coil Type: Electronic
- Certifications: UL, cULus
- Weight: 0.73 lbs
- Part Number: AF26-30-00-12
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF26
- Voltage : 600
- Amperage : 45
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 130
- Coil Voltage Minimum : 48
- UPC : 47152311092
- GTIN : 03471523110922
- Dimensions : Depth / Length 86 mm X Height 86 mm X Width 45 mm
- Weight : 0.68
Additional Information
This includes a 60 VAC coil.
