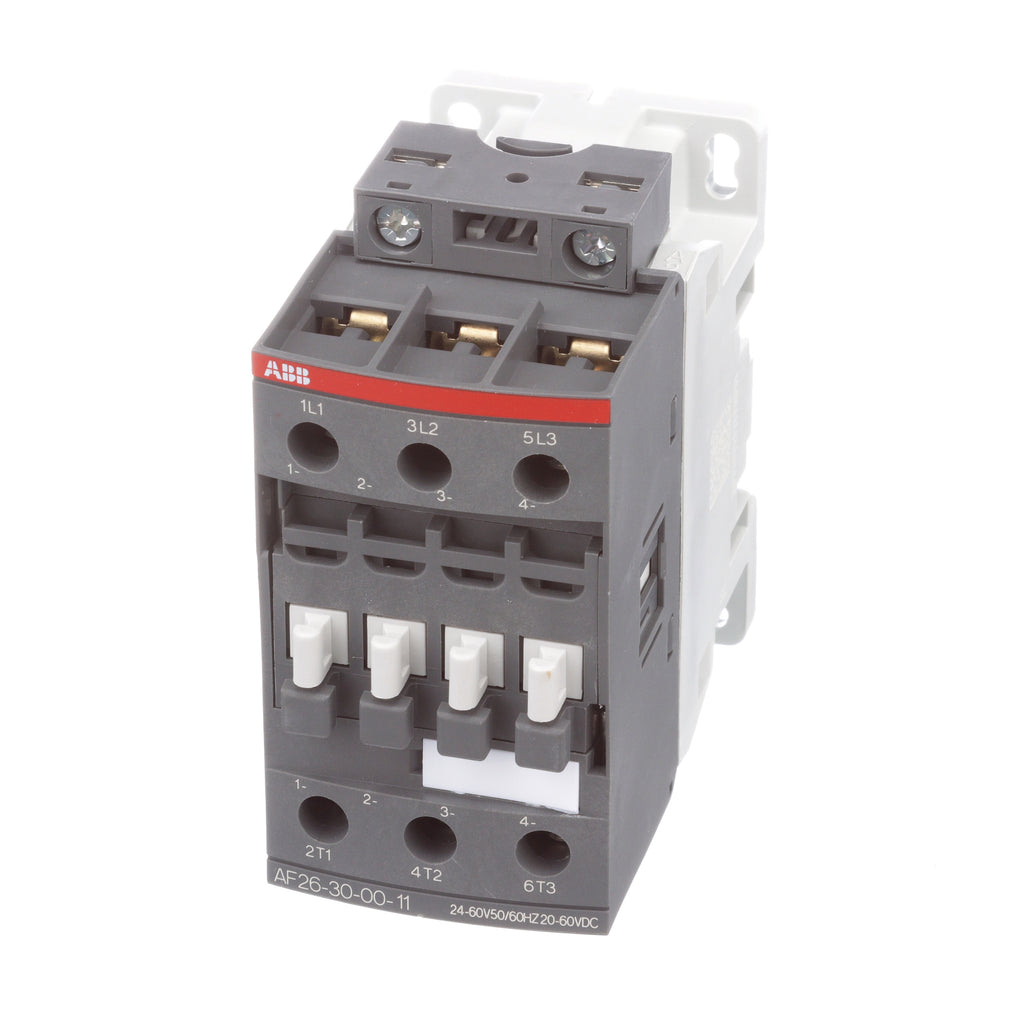

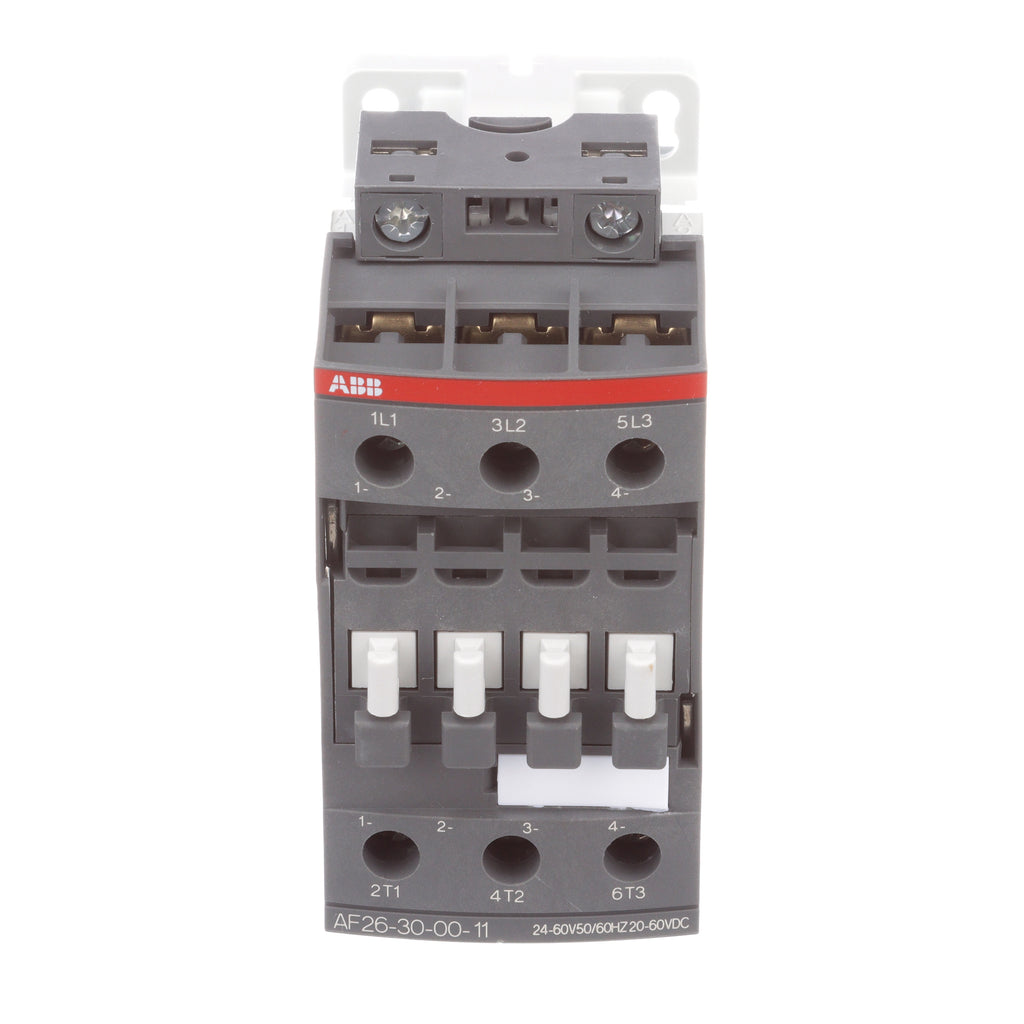

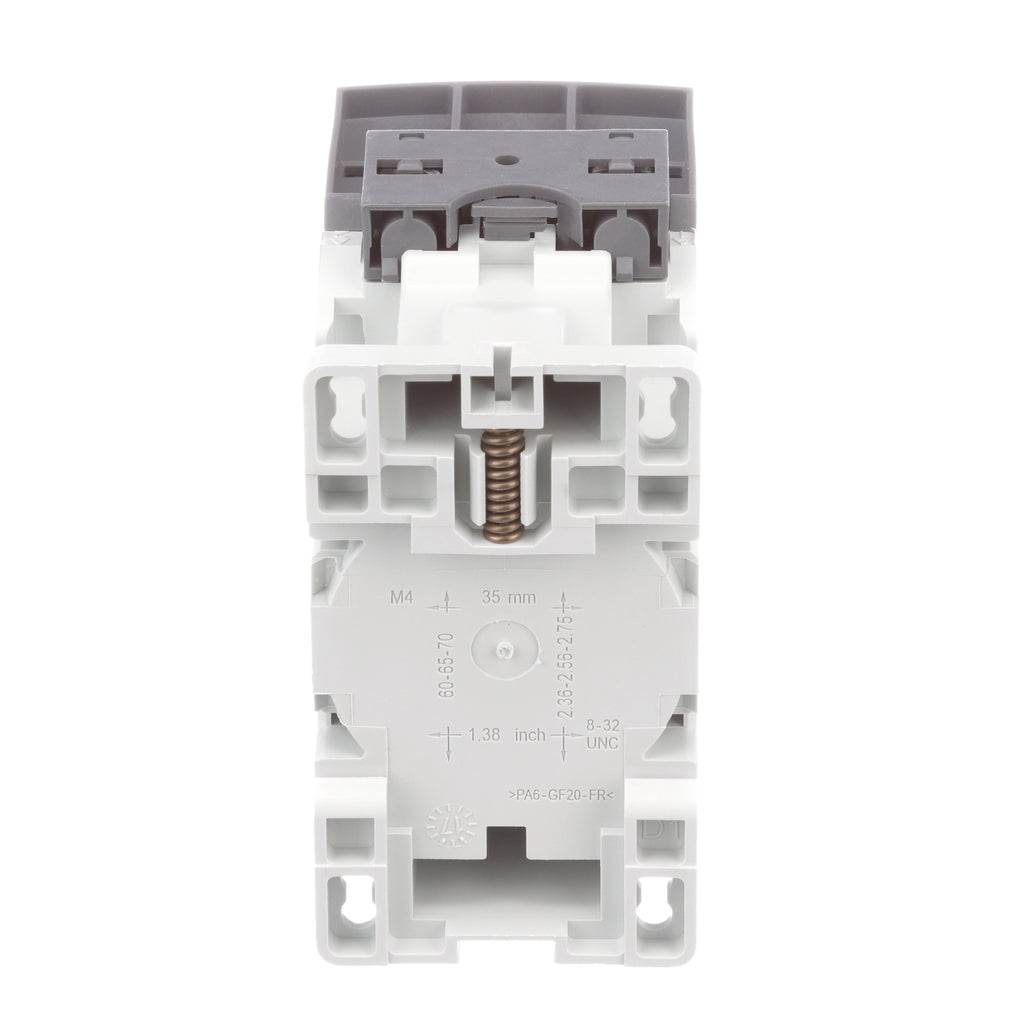

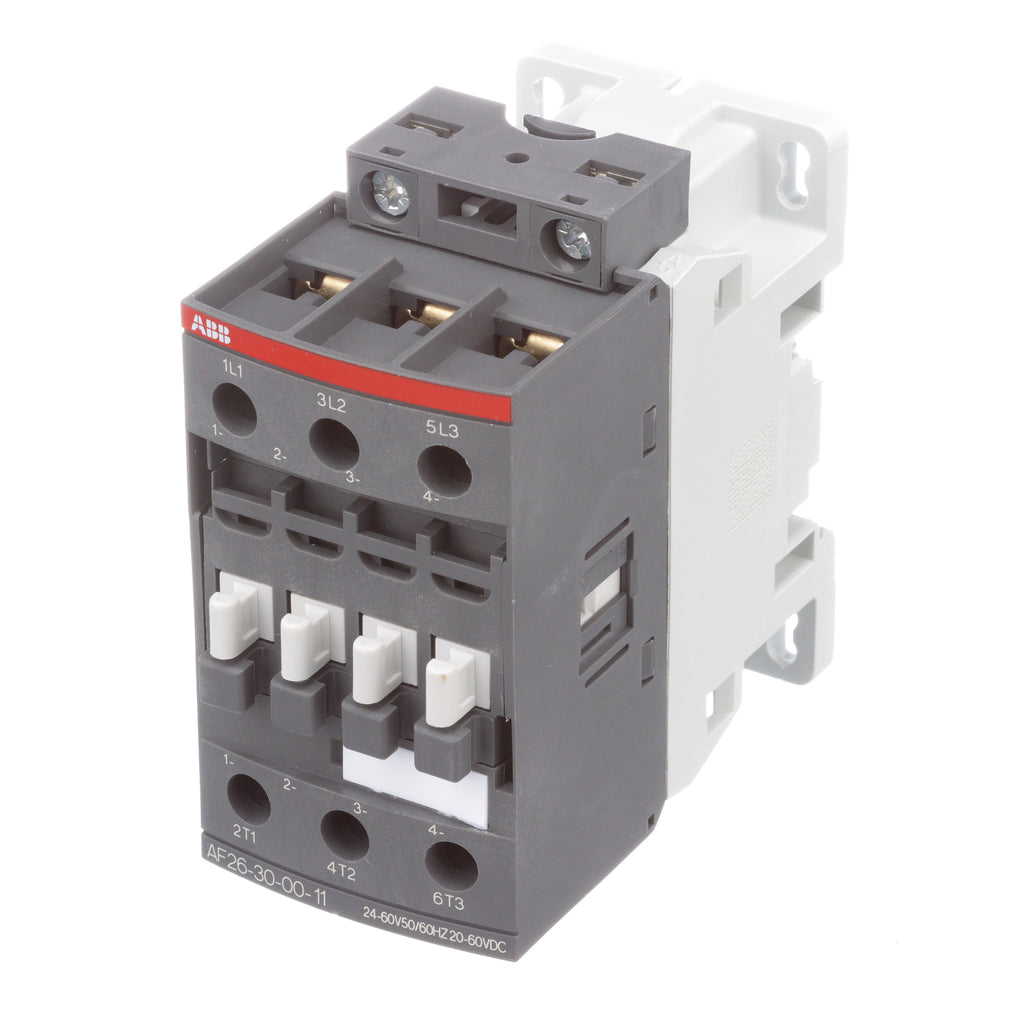

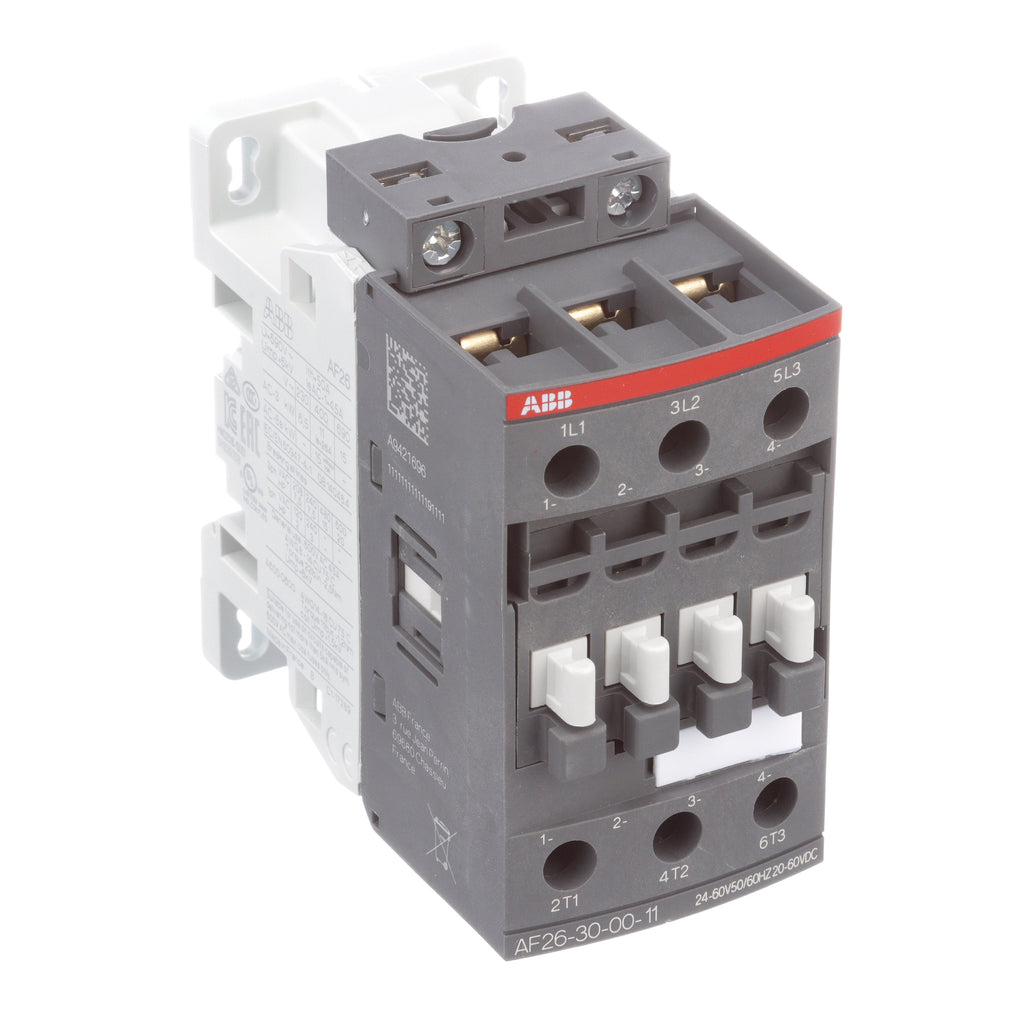

AF26-30-00-11 - ABB 3 Pole 45A 24-60V AC/DC Contactor with Screw Terminals, IP20, DIN Rail Mount, AF26 Series

AF26-30-00-11

AF26-30-00-11 is a 3-pole, 45A, 24-60V AC/DC contactor from ABB's AF26 series, designed for reliable motor control and power circuit switching. This contactor features screw terminals, IP20 enclosure, and DIN rail mounting for easy installation in industrial environments. It is suitable for controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL, with a maximum contact rating of 690 VAC and 45 A general purpose load. The electronically controlled coil provides low holding consumption and multiple voltage compatibility for flexible control applications. The AF26-30-00-11 contactor is built for durability, with a wide operating temperature range and high switching frequency. It is ideal for use in motor control, HVAC, and industrial automation systems where reliable and efficient switching is required.

• Part Number: AF26-30-00-11
• Manufacturer: ABB
• Series: AF26
• Number of Poles: 3
• Maximum Load Current: 45 A
• Coil Voltage: 24-60 VAC, 20-60 VDC
• Contact Configuration: 3NO
• Contact Rating: 690 VAC
• Mounting Type: DIN Rail
• Enclosure Type: IP20
• Operating Temperature: -40 to 70 deg C
• Operating Cycles: 3600 Cycles
• Terminal Type: Screw
• Wattage: 15 kW
• Contact Type: Non-Reversing
• Approvals: cULus
• Dimensions: 86 mm H x 45 mm W x 86 mm D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AF26-30-00-11
• Manufacturer : ABB
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Contactor
• Family : A-Line
• Type : AF26
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 15 hp
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 60
• Coil Voltage Minimum : 24

Product Data

• UPC : 47152311091
• GTIN : 03471523110915
• Country of Origin : France
• Dimensions : 45 mm x 86 mm
• Weight : 4
• Certification : IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
