Description
AF16-40-00-13

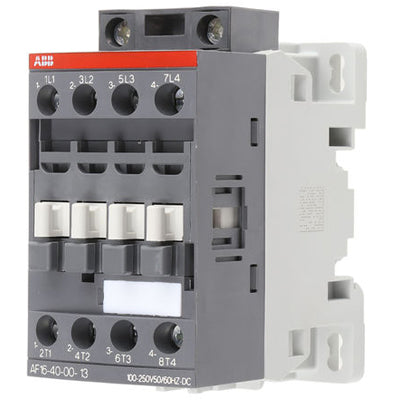

AF16-40-00-13 is a 4-pole contactor from ABB designed for motor control applications with a 16 ampere rating and 690 VAC maximum switching voltage.This ABB AF16 contactor features four normally open SPST contacts, screw terminal connections, and supports surface or DIN rail mounting. It is rated for controlling motors up to 7.5 kW at 400 V AC (AC-3 duty) and offers reliable performance with a coil voltage range of 24 to 60 VAC or 100 to 500 VAC/VDC. The device operates within a temperature range of -40°C to 70°C and carries UL, CE, and RoHS certifications.
- Key Specifications
- Contact Configuration: 4 Normally Open (4NO) SPST
- Rated Current: 16 A
- Maximum Switching Voltage: 690 VAC
- Coil Voltage: 24-60 VAC or 100-500 VAC/VDC
- Mounting Type: Surface or DIN Rail
- Operating Temperature: -40°C to 70°C
- Terminal Type: Screw Clamp for 16-10 AWG
- Approvals: UL, CE, RoHS
- Dimensions: 1.8" W x 3.2" L x 3.03" H
- Cycle Endurance: 10 Million Cycles
- Part Number: AF16-40-00-13
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF16
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 4
- Aux Contacts : 4 NO + 0 NC
- Coil Voltage Maximum : 250
- Coil Voltage Minimum : 100
- Frequency : 50/60 Hz
- UPC : 47152311513
- GTIN : 03471523115132
- Country of Origin : France
- Dimensions : 45 mm x 86 mm
- Weight : 1
- Certification : IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
Additional Information
This includes a 250 VDC coil.
