Description
AF16-30-10-14

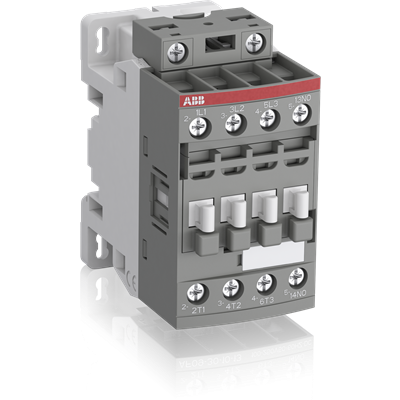

AF16-30-10-14 is an ABB 3 pole motor contactor designed for controlling motors up to 7.5 kW at 400 V with a coil voltage range of 250-500 V AC/DC and one normally open auxiliary contact.This contactor features screw terminals, low holding coil consumption, and is suitable for AC and DC operation with a rated operational voltage up to 690 V IEC and 600 V UL. It complies with IEC 60947-4-1 standards and offers reliable switching for non-inductive or slightly inductive loads.
- Rated operational current: 18 A
- Number of poles: 3
- Auxiliary contacts: 1 normally open (1NO)
- Coil voltage range: 250-500 V AC/DC
- Rated operational voltage: 690 V IEC / 600 V UL
- Suitable for motor loads up to 7.5 kW at 400 V
- Standards: IEC 60947-4-1, UL certified
- Screw terminal connections
- Low coil holding power consumption
- Interrupt rating: up to 6 kV
- Designed for 50/60 Hz operation
Additional Information
This includes a 380 VDC coil.
Specifications
- Part Number: AF16-30-10-14
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF16
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 500
- Coil Voltage Minimum : 250
Product Data
- UPC : 47152311064
- GTIN : 03471523110649
- Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight : 0.68
