Description

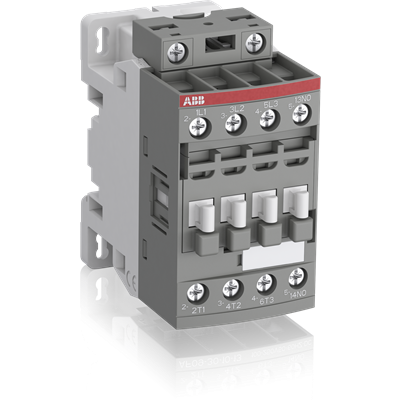

AF16-30-10-13 100-250V50/60HZ-DC
AF16-30-10-13 100-250V50/60HZ-DC is a 3-pole motor contactor from ABB's AF16 series designed for controlling motors up to 7.5 kW at 400 V with a coil voltage range of 100-250 V AC/DC. This non-reversing contactor features a 30 A maximum load current, 3 normally open contacts, and 1 normally open auxiliary contact. It supports 50/60 Hz operation with screw terminals and DIN rail mounting in an IP20 enclosure. The device offers built-in surge suppression, reduced panel energy consumption, and wide control voltage tolerance from 24 to 500 VAC and 20 to 500 VDC. It is rated for 690 VAC contact voltage and operates reliably between -60 to 80 degrees Celsius with 3600 mechanical operating cycles.
- Key Specifications
- Amperage: 30 A maximum load current
- Voltage: Coil 100-250 V AC/DC, Contact 690 VAC
- Poles: 3 poles, 3 normally open contacts
- Mounting Type: DIN rail
- Interrupt Rating: Suitable for motor loads up to 7.5 kW at 400 V
- Series/Frame: AF16 series
- Trip Unit: Non-reversing contactor
- Auxiliary Contacts: 1 normally open
- Enclosure: IP20
- Terminal Type: Screw terminals
- Operating Frequency: 50/60 Hz
- Operating Temperature: -60 to 80 °C
- Operating Cycles: 3600 cycles
Specifications
- Part Number: AF16-30-10-13 100-250V50/60HZ-DC
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- Weight : 0.62
