Description

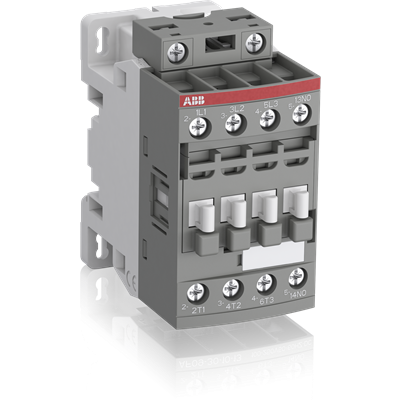

AF16-30-01-13
AF16-30-01-13 is a 3-pole motor control contactor from ABB designed for controlling power circuits up to 690 V AC and motors up to 7.5 kW at 400 V.This contactor features a 30 A current rating with a coil voltage of 100 VAC / 250 VDC, 3 normally open main contacts, and 1 normally closed auxiliary contact. It supports DIN rail mounting and includes screw terminals for secure wiring. The AF16 series contactors are suitable for controlling 3-phase motors and non-inductive or slightly inductive loads, complying with IEC 60947 standards.
- Current Rating: 30 A
- Voltage Rating: Up to 690 V AC, 250 V DC coil
- Number of Poles: 3
- Contact Configuration: 3 NO main contacts, 1 NC auxiliary contact
- Mounting Type: DIN Rail
- Terminal Type: Screw
- Power Rating: 7.5 kW at 400 V
- Control Coil Voltage: 100 VAC / 250 VDC
- Standards: IEC 60947-1, IEC 60947-4-1
- Auxiliary Contact: 1 NC built-in
- Operating Temperature Range: -40°C to +70°C
Additional Information
This includes a 250 VDC coil.
Specifications
- Part Number: AF16-30-01-13
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF16
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NC
- Coil Voltage Maximum : 250
- Coil Voltage Minimum : 100
Product Data
- UPC : 47152311073
- GTIN : 03471523110731
- Country of Origin : France
- Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight : 0.6
