Description
AF16-30-01-11

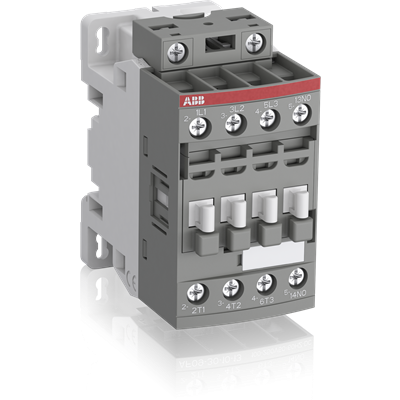

AF16-30-01-11 is a 3-pole, 30A, 690V AC/DC non-reversing contactor from the ABB AF Series, designed for reliable motor control and power circuit switching. This contactor features an electronic coil interface for wide control voltage compatibility and is suitable for both AC and DC operation. The AF16-30-01-11 offers robust performance for controlling 3-phase motors and general power circuits up to 690V AC and 220V DC. It includes 3NO main contacts and 1NC auxiliary contact, with a compact IP20 enclosure for DIN rail mounting. The contactor is built for high switching frequency and long operational life, making it ideal for industrial automation and motor control applications.
- Part Number: AF16-30-01-11
- Manufacturer: ABB
- Series: AF Series
- Number of Poles: 3
- Rated Current: 30 A
- Rated Voltage: 690 V AC, 220 V DC
- Contact Configuration: 3NO + 1NC
- Coil Voltage: 24-60 VAC, 20-60 VDC
- Mounting Type: DIN Rail
- Enclosure Type: IP20
- Operating Temperature: -40 to 70°C
- Standards: UL 508, CSA C22.2 No. 14
Specifications
- Part Number: AF16-30-01-11
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Contactors
- Family : AF Series
- Voltage : 600
- Amperage : 30
- Poles : 3
- Coil Voltage Maximum : 60
- Coil Voltage Minimum : 24
Product Data
- UPC : 3471523110717
- Dimensions : 45 mm W x 77 mm D x 86 mm H
- Weight : 5
