Product Info
- Manufacturer:ABB
Description
AF12301014

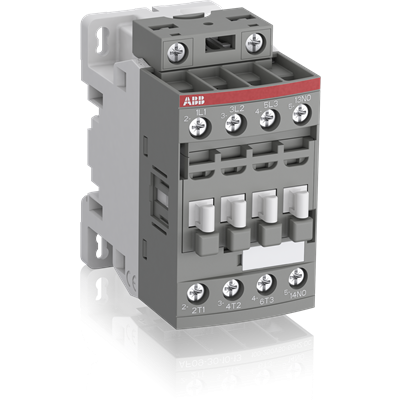

AF12-30-10-14 is a 3-pole contactor from ABB designed for motor control and power circuit switching applications.This ABB contactor supports up to 25 A current rating and operates at voltages up to 690 V IEC and 600 V UL standards. It features 3 main poles and 1 built-in normally open auxiliary contact with screw terminals. The AF12 series is suitable for controlling motors up to 5.5 kW at 400 V and includes robust coil options for AC or DC control voltages ranging from 24 to 500 V. It is compliant with IEC standards and UL listed for general use.
- Key Specifications
- Amperage: 25 A max
- Voltage: 690 V IEC / 600 V UL
- Poles: 3 main poles
- Auxiliary Contacts: 1 NO built-in
- Motor Power Rating: Up to 5.5 kW at 400 V
- Mounting Type: Screw terminals
- Control Voltage: 24-500 V AC/DC coil options
- Standards: IEC 60947, UL listed
- Interrupt Rating: Suitable for motor control applications
- Series/Frame: AF12
Specifications
- Part Number: AF12301014
- Manufacturer : ABB
- Brand : ABB
Product Data
- UPC : 47152311034
- GTIN : 03471523110342
- Weight : 2
