AF12-30-10-14 - ABB 3-Pole 28A 690V AC/DC Contactor with 1NO Auxiliary, Screw Terminals

Save $44.15
SKU: AF12-30-10-14-New
Condition: New
Price:
$86.55 $130.70
Stock:
Low inventory, please call for stock check
Factory Lead Time: 6 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

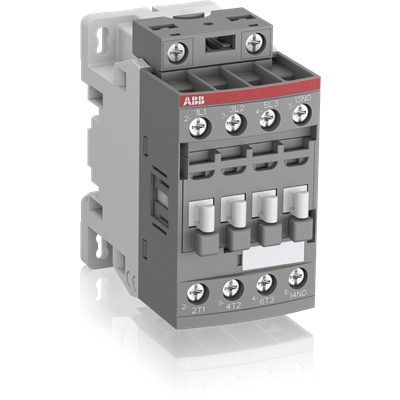

AF12-30-10-14 - ABB 3-Pole 28A 690V AC/DC Contactor with 1NO Auxiliary, Screw Terminals - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
AF12-30-10-14 - ABB 3-Pole 28A 690V AC/DC Contactor with 1NO Auxiliary, Screw Terminals - Essential Electric Supply

Description

AF12-30-10-14


AF12-30-10-14 is a 3-pole IEC contactor designed for motor control and power circuit applications up to 690 V AC and 240 V DC, featuring 1 built-in normally open auxiliary contact and screw terminals for reliable connections. This ABB AF12 series contactor is engineered for controlling 3-phase motors and non-inductive or slightly inductive loads. It offers robust performance with a wide control voltage range, built-in surge suppression, and compatibility with a broad range of accessories for flexible installation. The contactor is suitable for demanding industrial environments and provides distinct closing and opening action for precise control.
  • 3-pole, 1NO auxiliary contact
  • Rated operational current: 28 A at 690 V AC-1
  • Rated operational current AC-3: 12 A at 220/230/240 V, 12 A at 380/400 V, 12 A at 415 V, 12 A at 440 V, 12.5 A at 500 V, 9 A at 690 V
  • Control voltage: 250-500 V AC/DC
  • Mounting: Screw terminals
  • Interrupt rating: 60 A fuse
  • Series/Frame: AF12
  • Thermal current: 18 A
  • UL maximum 3-phase motor rating: 3 hp at 200-208 V, 3 hp at 220-240 V, 7.5 hp at 440-480 V, 10 hp at 550-600 V
  • Motor power: 3 kW at 220/230/240 V, 5.5 kW at 380/400 V, 5.5 kW at 415 V, 5.5 kW at 440 V, 7.5 kW at 500 V, 7.5 kW at 690 V
  • Max electrical switching frequency: 600 cycles/h general use, 1200 cycles/h motor use
  • Certifications: UL, IEC
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 380 VDC coil.


Specifications

  • Part Number: AF12-30-10-14
  • Manufacturer : ABB
  • Brand : ABB
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : A-Line
  • Type : AF12
  • Voltage : 600
  • Amperage : 28
  • Phase : 3
  • Poles : 3
  • Aux Contacts : 1 NO
  • Coil Voltage Maximum : 500
  • Coil Voltage Minimum : 250

Product Data

  • UPC : 47152311034
  • GTIN : 03471523110342
  • Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
  • Weight : 0.68
