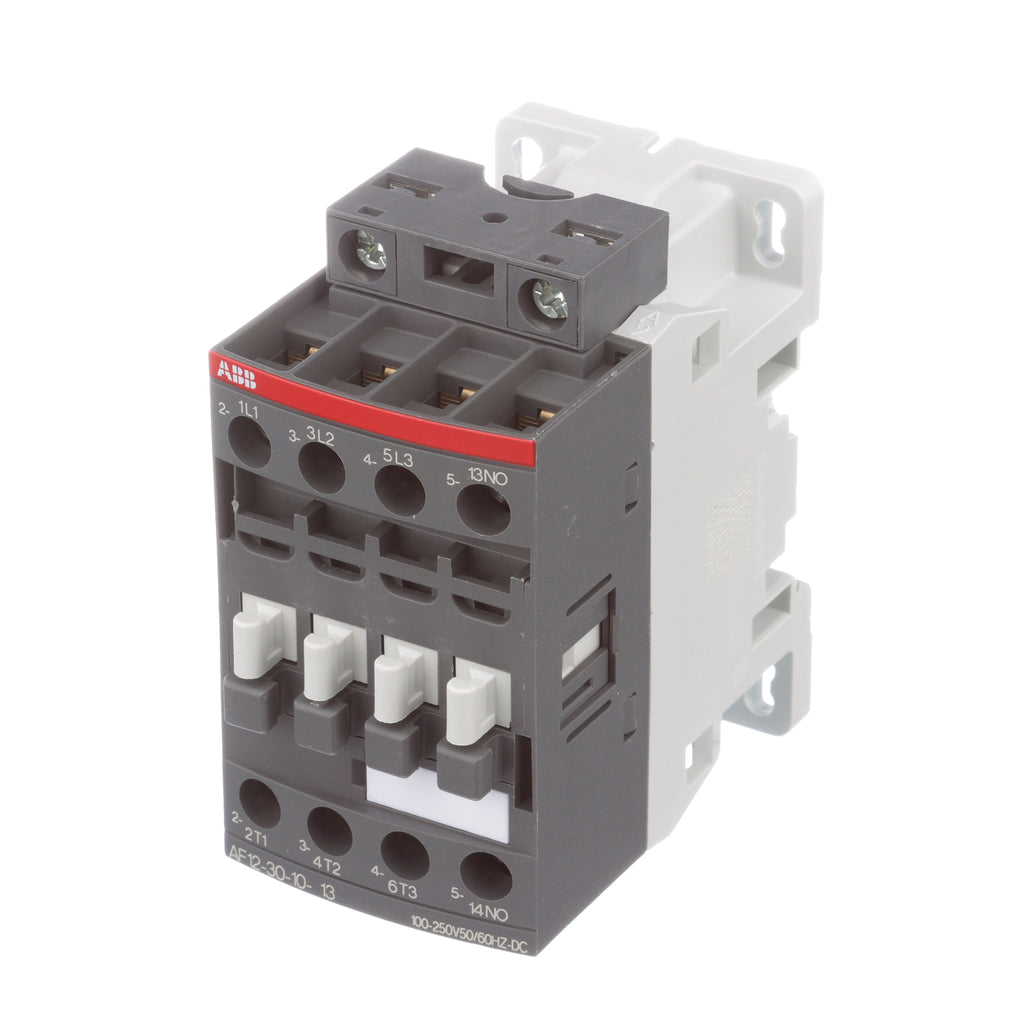

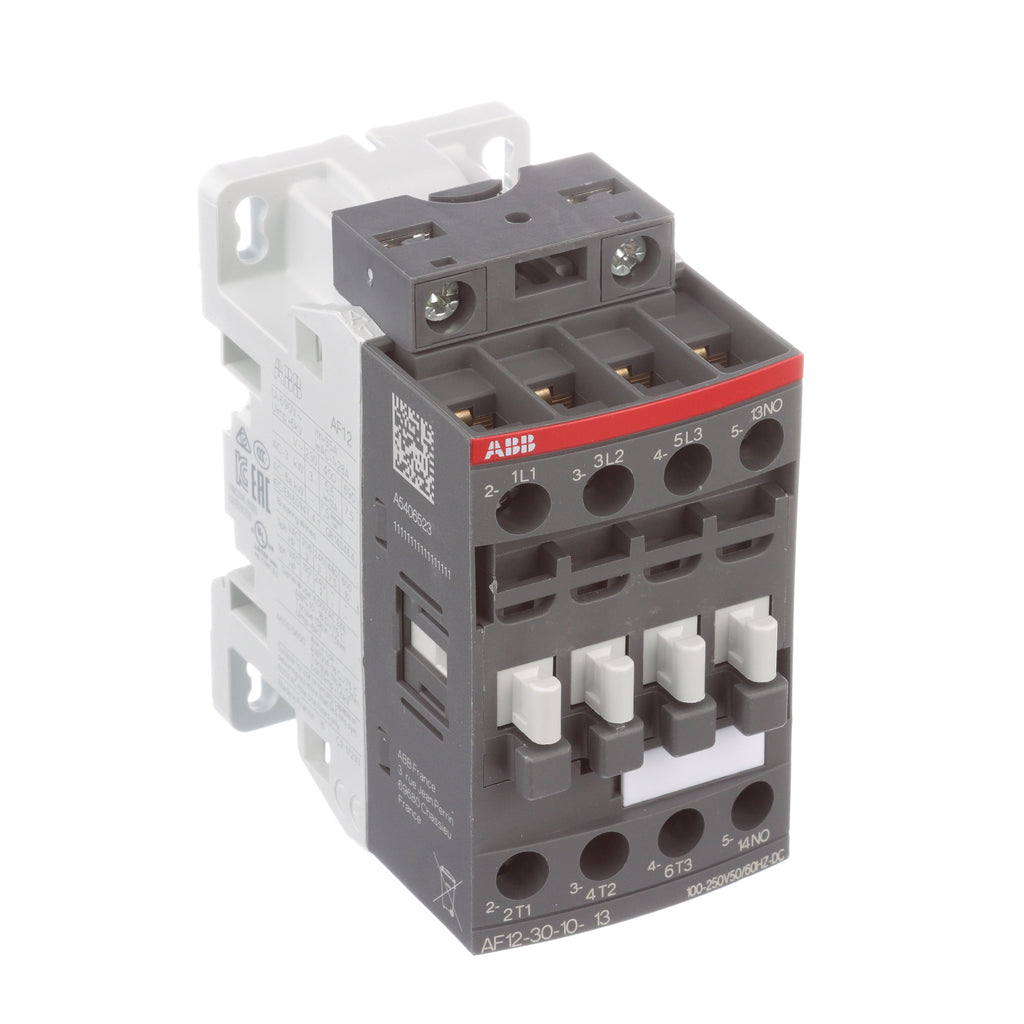

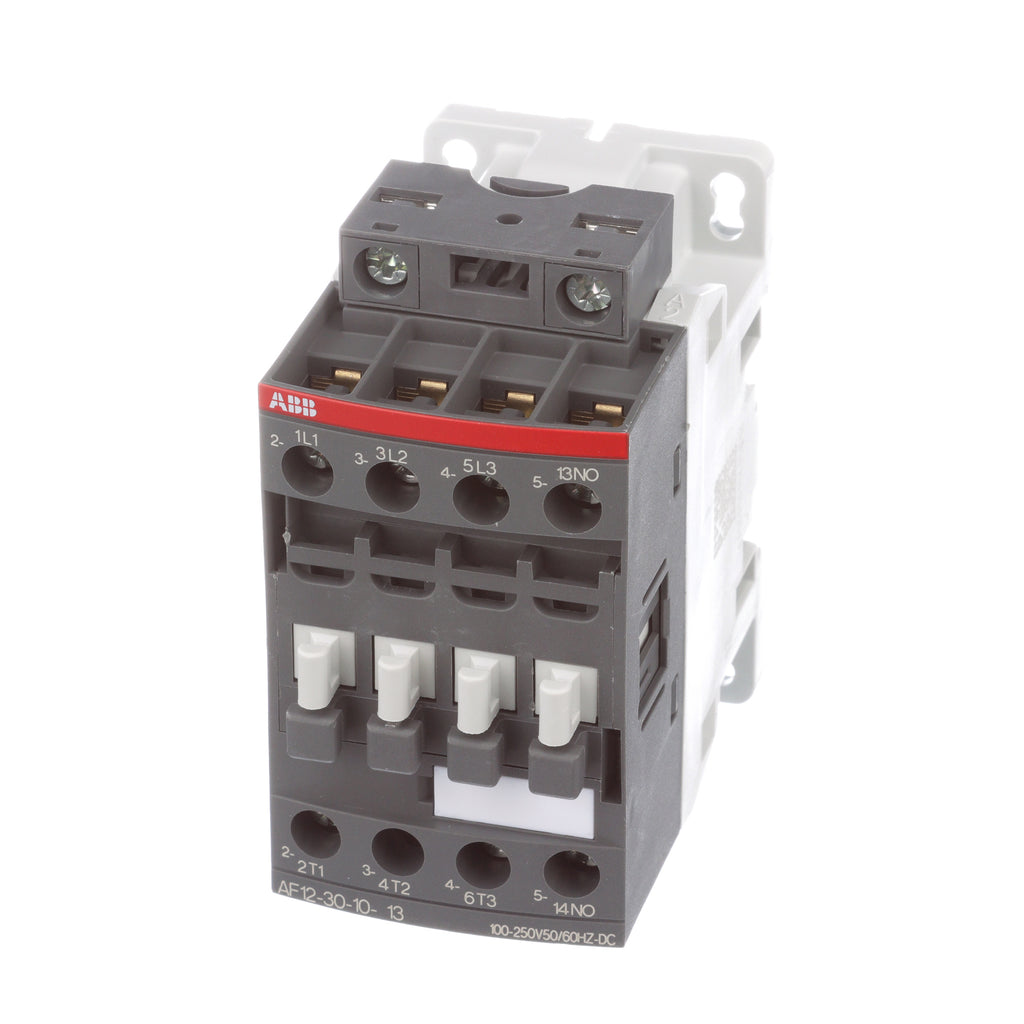

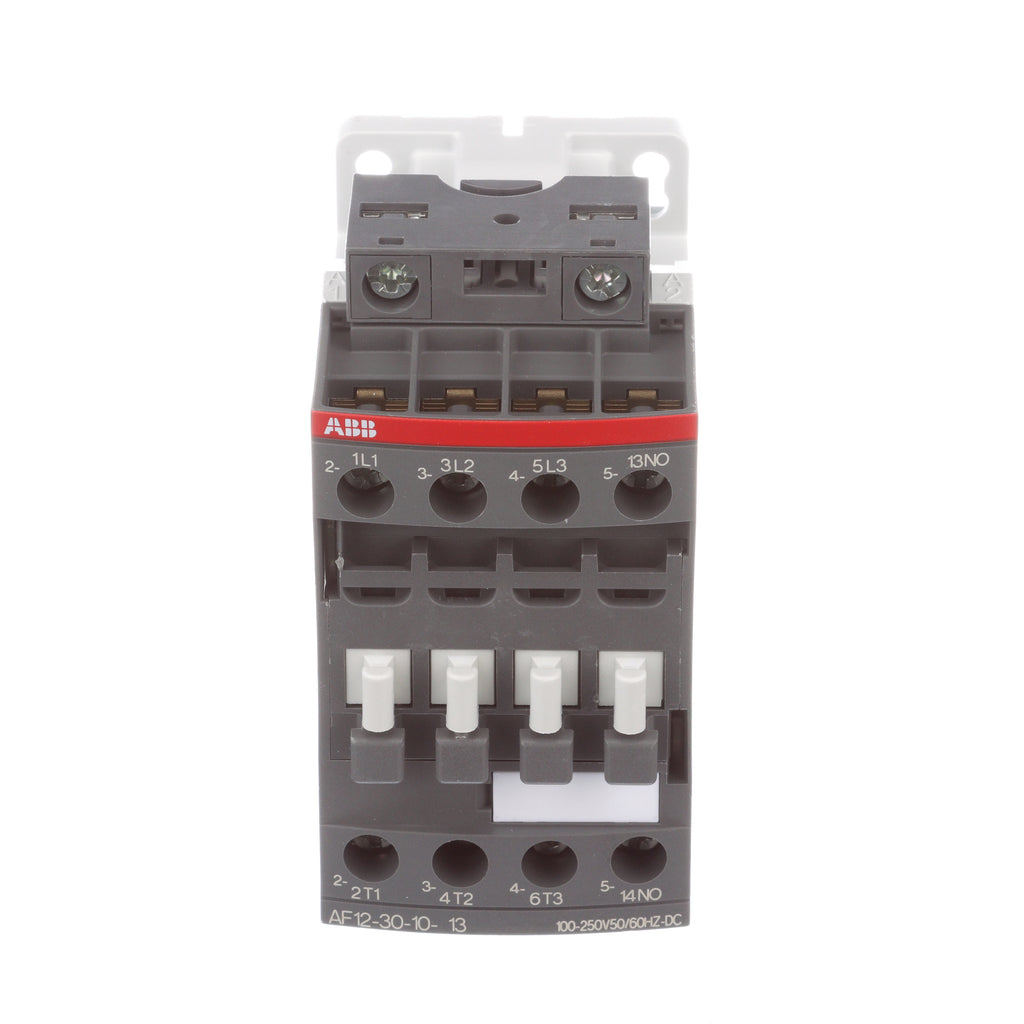

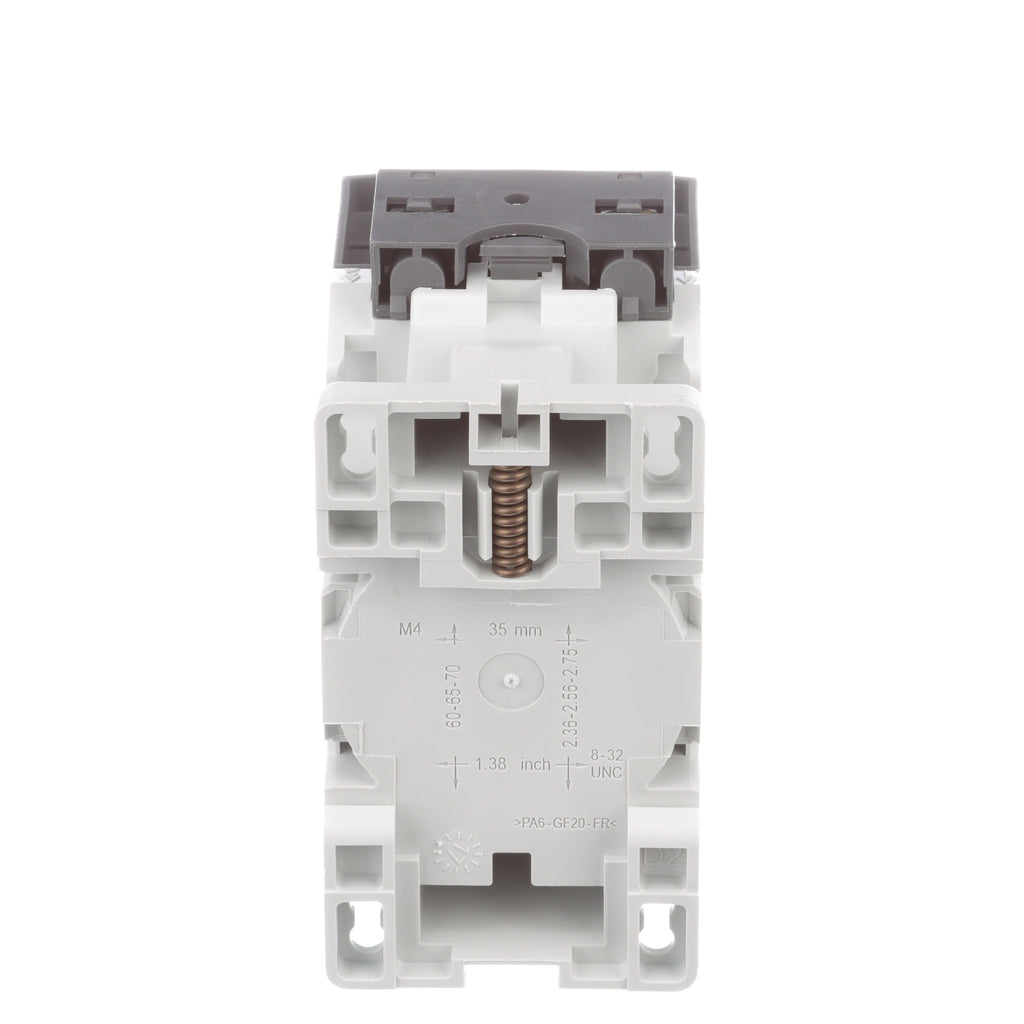

AF12-30-10-13 - ABB 3-Pole Motor Contactor 12A 690V IEC with 1NO Auxiliary Contact

Save $38.87
SKU: AF12-30-10-13-New
Condition: New
Price:
$91.83 $130.70
Stock:
Low inventory, please call for stock check
Factory Lead Time: 7 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply
AF12-30-10-13 Asea A-Line Contactor 3 pole 3 phase 600V 28A 100V coil - Essential Electric Supply

Description

AF12-30-10-13


AF12-30-10-13 is a 3-pole motor contactor from ABB designed for controlling motors up to 5.5 kW at 400 V with a rated operational current of 12 A and voltage up to 690 V IEC.This contactor features a built-in 1 normally open (1NO) auxiliary contact and screw terminals for secure wiring. It supports coil voltages from 24 V to 500 V AC/DC, suitable for direct PLC control with low holding power consumption. The device is rated for AC-3 utilization category with a rated making capacity of 10 times the operational current and breaking capacity of 8 times the operational current according to IEC 60947-4-1 standards.
    Key Specifications
    • Amperage: 12 A rated operational current
    • Voltage: Up to 690 V IEC / 600 V UL
    • Poles: 3-pole
    • Auxiliary Contacts: 1 normally open (1NO)
    • Mounting Type: Screw terminals
    • Rated Motor Power: Up to 5.5 kW at 400 V
    • Coil Voltage Range: 24 V to 500 V AC/DC
    • Utilization Category: AC-3
    • Rated Making Capacity: 10 x Ie
    • Rated Breaking Capacity: 8 x Ie
    • Standards: IEC 60947-4-1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 250 VDC coil.


Specifications

  • Part Number: AF12-30-10-13
  • Manufacturer : ABB
  • Brand : ABB
  • Category : Motor Control
  • Item Subcategory : Contactor
  • Family : A-Line
  • Type : AF12
  • Voltage : 600
  • Amperage : 28
  • Phase : 3
  • Poles : 3
  • Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 7 1/2 hp
  • Aux Contacts : 1 NO
  • Coil Voltage Maximum : 250
  • Coil Voltage Minimum : 100

Product Data

  • UPC : 47152311033
  • GTIN : 03471523110335
  • Country of Origin : France
  • Dimensions : 45 mm x 86 mm
  • Weight : 4
  • Certification : IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
